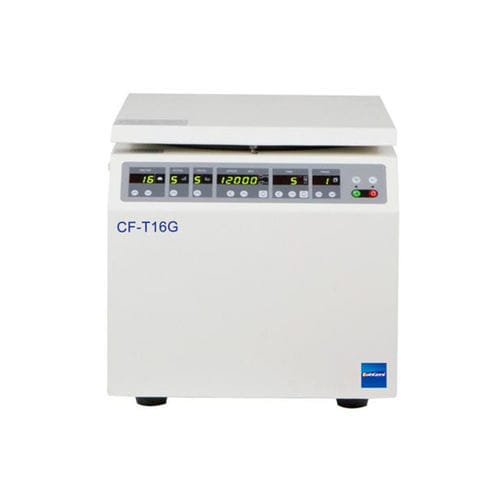

Laboratory centrifuge CF-T16G

benchtophigh-speedautomatic

Product overview
Benchtop high-speed centrifuge CF-T16G and CF-T16B designed for clinical and research laboratories. Microcomputer control with touch panel and digital display; selectable RCF or RPM for direct programming and automatic data save.

Key features

• Microcomputer with touch panel and digital display; operating programs and run data can be saved; direct RCF input for convenient operation
• Brushless motor reduces contamination and provides fast deceleration; European high-speed bearings ensure smooth, maintenance-free operation
• Multistage damping system delivers low noise and minimal vibration
• Steel housing with stainless-steel rotor chamber; key components sourced for durability and easy cleaning
• Safety features: overspeed protection, door interlock and imbalance detection; rotors compatible with high-temperature and high-pressure disinfection
• Proprietary airflow guide minimizes chamber temperature rise to protect temperature-sensitive samples

Technical parameters
Model | CF-T16G | CF-T16B
Max speed | 16600 r/min | 16000 r/min
Max RCF | 19200×g | 17800×g
Max capacity | 300 ml | 40 ml
Speed accuracy | ±50 r/min | ±50 r/min
Time range | 0-99 min | 0-99 min
Power supply | AC 220V 50Hz 15A | AC 220V 50Hz 8A
Noise | ≤65 dB | ≤65 dB
Dimension | 400×350×340 mm | 300×260×210 mm
Net weight | 20 kg | 14 kg

CF-T16B ROTOR
Model | No. | Capacity (ml) | Max Speed (r/min) | Max RCF (×g) | Tube dimension (mm)
Angle Rotor | 63 | 18×0.5 ml | 16000 | 17800 | Φ8×32
| 69 | 12×1.5 ml | 16000 | 17800 | Φ10×42
| 70 | 8×5 ml | 13000 | 10000 | Φ14×54

CF-T16G ROTOR
Model | No. | Capacity (ml) | Max Speed (r/min) | Max RCF (×g) | Tube dimension (mm)
Angle Rotor | 6 | 12×1.5 ml | 16600 | 19200 | Φ10×42
| 11 | 18×0.5 ml | 16600 | 19200 | Φ8×32
| 9 | 24×1.5/2.0 ml | 13000 | 16060 | Φ10×42
| 18 | 48×0.5 ml | 13000 | 14740 | Φ8×32
| 12 | 10×5 ml | 13000 | 11500 | Φ14×54
| 16 | 12×10 ml | 12000 | 14800 | Φ16×81
| 22 | 6×50 ml | 12000 | 14800 | Φ28×105

Specifications

• Models: CF-T16G / CF-T16B
• Max speed: CF-T16G 16600 r/min; CF-T16B 16000 r/min
• Max RCF: CF-T16G 19200×g; CF-T16B 17800×g
• Max capacity: CF-T16G 300 ml; CF-T16B 40 ml
• Speed accuracy: ±50 r/min
• Time range: 0-99 min
• Power supply: AC 220V 50Hz (CF-T16G 15A; CF-T16B 8A)
• Noise level: ≤65 dB
• Dimensions: CF-T16G 400×350×340 mm; CF-T16B 300×260×210 mm
• Net weight: CF-T16G 20 kg; CF-T16B 14 kg
• Multiple angle rotors available for tubes from 0.5 ml to 50 ml (see rotor tables)
• Brushless motor, multistage damping, door interlock, imbalance protection; rotors compatible with autoclave disinfection
