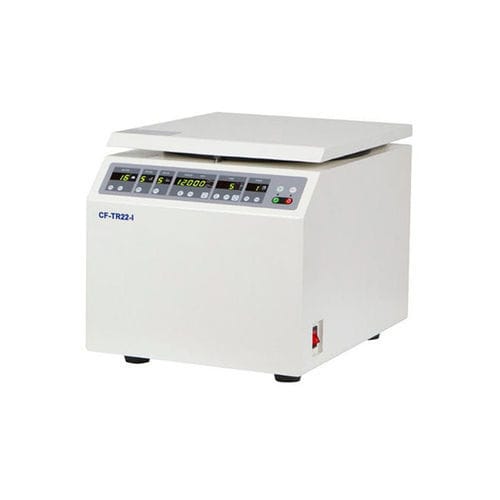

Laboratory centrifuge CF-TR22-I

benchtoptabletoprefrigerated

Short description
Tabletop refrigerated high-speed centrifuge CF-TR22-I designed for clinical and research laboratories. Programmable acceleration/deceleration modes, precise temperature control and multiple rotors provide flexible processing of a wide range of sample types and volumes.

Advanced control system, excellent separation

• 10 selectable accel/decel profiles; users can configure parameters to optimize separation for specific workflows.
• Short-run function for rapid cycles and method diversification.
• Proprietary SCT speed control for stable high-speed performance.
• Proprietary SBT soft-brake control to minimize disturbance and maximize recovered sample volume.
• Accurate timing with selectable minutes or seconds for fine control of runs.

High safety, ease of use

• Multi-level protection: over-temperature, over-speed, lid interlock and imbalance shutdown with audible/visual alarms to protect personnel and samples.
• Robust enclosure: steel exterior, stainless-steel chamber and protective sleeve with triple-damping structure to reduce mechanical risk.
• Optional aerosol-tight rotor lids; rotors compatible with high-temperature and high-pressure sterilization to prevent biological contamination.

Intuitive display, ergonomic operation

• Clear LCD/LED multi-screen display: program groups, accel/decel, RPM/RCF, time and temperature are configurable without complex key combinations.
• Microprocessor control with automatic data save; start by RCF directly. Up to 40 user-definable programs can be stored and recalled to reduce repetitive setup.

Quality components, reliable durability

• Brushless inverter motor, high-speed bearings and Freon-free compressor sourced from Europe for consistent performance.
• Aerospace-grade damping rubber and high-strength duralumin alloy extend service life under regular laboratory use.

Technical parameters

• Model: CF-TR22-I
• Max speed: 18600 r/min
• Max RCF: 23950×g
• Max capacity: 300 ml
• Speed accuracy: ±20 r/min
• Temperature range: -10°C to +40°C
• Temperature accuracy: ±1°C
• Time range: 1 s – 999 min / 999 s
• Power supply: AC 220V 50Hz 15A
• Noise: ≤60 dB
• Dimension: 350×625×370 mm
• Weight: 56 kg

Rotor

• Angle Rotor — No.1 — Capacity: 12×1.5/2.0 ml — Max speed: 18600 r/min — Max RCF: 23950×g — Tube dim: Φ10×42
• Angle Rotor — No.2 — Capacity: 18×0.5 ml — Max speed: 18600 r/min — Max RCF: 23950×g — Tube dim: Φ8×32
• Angle Rotor — No.3 — Capacity: 24×1.5/2.0 ml — Max speed: 14000 r/min — Max RCF: 17510×g — Tube dim: Φ10×42
• Angle Rotor — No.4 — Capacity: 10×5 ml — Max speed: 16000 r/min — Max RCF: 17420×g — Tube dim: Φ14×54
• Angle Rotor — No.5 — Capacity: 12×10 ml — Max speed: 13000 r/min — Max RCF: 17370×g — Tube dim: Φ16×81
• Angle Rotor — No.6 — Capacity: 8×15 ml — Max speed: 12000 r/min — Max RCF: 14800×g — Tube dim: Φ16×115
• Angle Rotor — No.7 — Capacity: 4×8×0.2 ml — Max speed: 12000 r/min — Max RCF: 14800×g — Tube dim: Φ6×22
