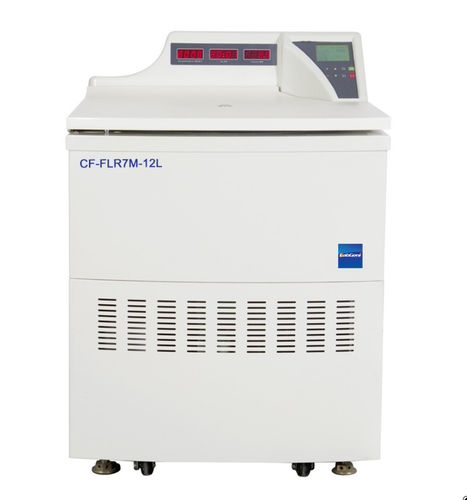

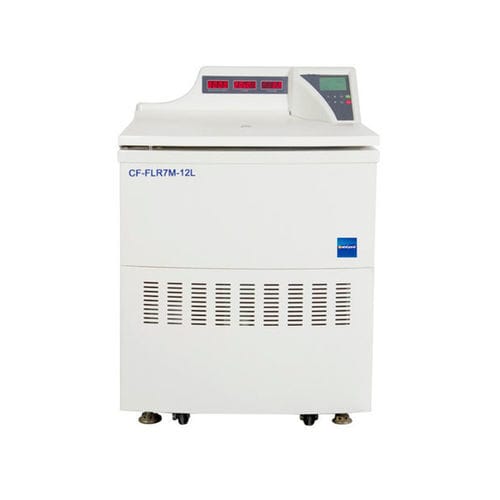

Biotechnology centrifuge CF-FLR7M-12L

for pharmaceutical applicationslaboratoryfloor-standing

Overview
CF-FLR7M-12L floor-type refrigerated centrifuge, nominal capacity 12 L, max speed 8000 r/min. Microprocessor control with touch panel and LED/LCD display; operational data saved automatically; direct RCF entry for convenient operation.

Features

• Microprocessor control with touch panel, LED and LCD displays; automatic saving of run data; direct RCF input.
• Brushless inverter motor with high torque and European high-speed bearings for smooth, maintenance-free operation.
• Multi-stage damping system and freon-free compressor of European origin for low noise and vibration.
• Steel exterior and stainless-steel centrifugal chamber with imported key components for durability and easy cleaning.
• Rotor identification and protections for overspeed, over-temperature, door interlock and imbalance; rotor life calculation enhances safety.
• Pre-cooling chamber design for rapid cooling; proprietary SCT speed control for fast acceleration/deceleration and efficient performance.
• Adjustable acceleration/deceleration (steps 0–9) or direct time setting; stores up to 40 custom programs.
• Proprietary SBT control and dedicated rotor design to prevent sample mix-up and maximize specimen recovery.
• Very large capacity: accepts 6×1000 ml blood bags (one per position) or 12×500 ml (two per position), enabling high-throughput processing.
• Hold-on and transient centrifugation modes for varied protocols.
• Applications: blood banks, pharmacies, biological products and related laboratory settings.

Technical Parameters
Model: CF-FLR7M-12L
Max Speed: 8000 r/min
Max RCF: 12300×g
Max Capacity: 14400 ml
Speed Accuracy: ±20 r/min
Temperature Range: -20°C–40°C
Temperature Accuracy: ±1°C
Time Range: 0–99H59min
Power Supply: AC 220V 50Hz / AC 110V 60Hz 35A
Noise: ≤65 dB
Dimension: 960 × 860 × 1200 (mm)
Weight: 500 kg

Rotor Options
Angle Rotor - No.33 — Capacity: 6×500 ml — Max speed: 8000 r/min — Max RCF: 11680×g — Tube dimension: Φ74 × 168 mm
Angle Rotor - No.36 — Capacity: 6×1000 ml — Max speed: 7200 r/min — Max RCF: 12166×g — Tube dimension: Φ97 × 175 mm
Swing Rotor - No.64 — Capacity: 6×2400 ml — Max speed: 4200 r/min — Max RCF: 6130×g — For: 12 pcs of 400–500 ml triple blood bags
Swing Rotor - No.67 — Capacity: 2×6×1000 ml — Max speed: 4200 r/min — Max RCF: 5000×g — Application: biology/pharmacy uses

Technical specifications

• Model: CF-FLR7M-12L
• Maximum speed: 8000 r/min
• Maximum RCF: 12300×g
• Maximum capacity: 14400 ml
• Temperature range: -20°C to 40°C
• Temperature accuracy: ±1°C
• Time range: 0–99H59min
• Power supply: AC 220V 50Hz or AC 110V 60Hz (35A)
• Noise level: ≤65 dB
• Dimensions (W×D×H): 960 × 860 × 1200 mm
• Weight: 500 kg
