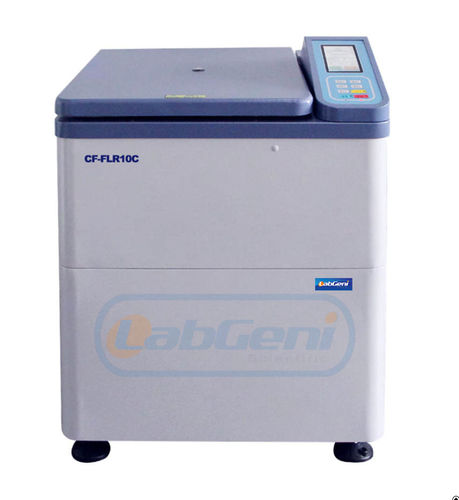

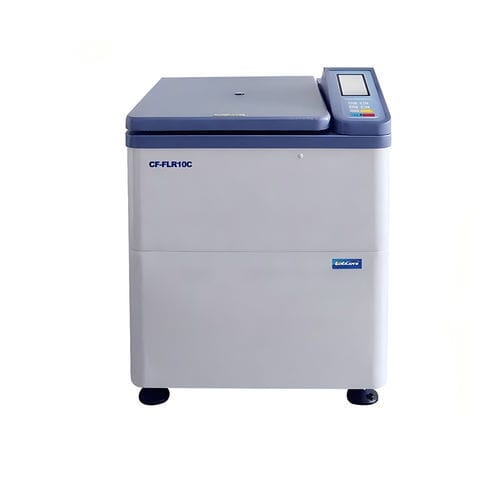

Laboratory centrifuge CF-FLR10C

floor-standingrefrigeratedhigh-speed

Product features

• Intelligent control system with HD large display for in-operation parameter adjustment
• High compatibility with multiple rotors; rotor automatic identification
• Separate speed and RCF settings with automatic RCF calculation
• Up to 99 program groups; parameters editable during run without stopping
• Optional electric door lock that can open the chamber automatically after run

Core performance

• Microcomputer control and AC frequency-conversion brushless motor for fast, stable operation
• 10-step linear acceleration/deceleration control
• Two timing modes: start timing or reach-speed timing
• Energy-efficient refrigeration system with specialized internal thermal insulation

Safety and protection

• Over-speed, over-temperature and imbalance protection with automatic lid lock
• Stainless-steel centrifuge chamber with environmentally friendly anti-corrosion coating
• Low noise design (≤ 65 dB(A))

Design details for laboratory use

• Low opening height and ergonomic lid closure for single-press operation
• Integrated tool rack and front-panel SOP guide for standardized operation
• Quick-lock rotor cover and special noise reduction measures

Technical parameters

• Model: CF-FLR10C
• Max speed: 10000 rpm
• Max RCF: 18300 × g
• Max capacity: 6 × 1000 ml
• Timer: 1 s – 99 h 59 min 59 s
• Revolutions/min accuracy: ±10 r/min
• Temperature range: -20 °C – 40 °C
• Temperature accuracy: ±1.0 °C
• Voltage: AC 220 ± 22 V, 50 Hz, 35 A
• Power: 4500 W
• Noise level: ≤ 65 dB(A)
• Size (W×D×H): 735 × 835 × 1235 (mm)
• Net weight: 332 kg
• Rotor automatic recognition: Yes

Rotor parameters

• Angle rotor options:
• 6×250 ml (titanium alloy) — Max speed 10000 rpm — Max RCF 18300 × g
• 6×300 ml (titanium alloy) — Max speed 10000 rpm — Max RCF 18300 × g
• 6×500 ml — Max speed 8000 rpm — Max RCF 11620 × g
• 6×1000 ml — Max speed 8000 rpm — Max RCF 15526 × g
• 6×1000 ml (carbon fiber) — Max speed 8000 rpm — Max RCF 15526 × g
• Swing-out rotor options:
• 4×1000 ml — Max speed 4200 rpm — Max RCF 4430 × g
• 6×1000 ml — Max speed 4200 rpm — Max RCF 5100 × g

* All products can be customized, designed and produced according to customer requirements.
