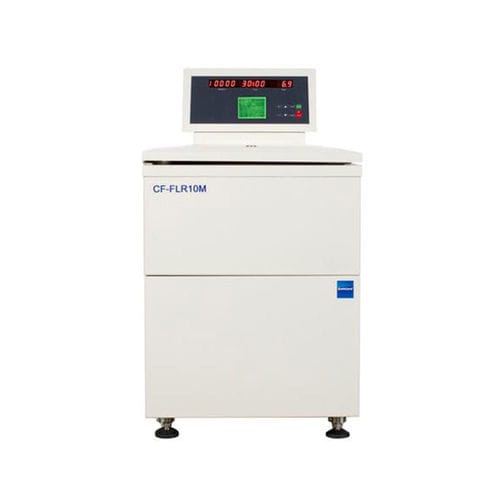

Multi-purpose centrifuge CF-FLR10M

laboratoryfloor-standingrefrigerated

Product Overview
CF-FLR10M / CF-FLR10MA refrigerated high-speed large-capacity centrifuge, max speed 10000 rpm. Microprocessor control with touch panel operation, suitable for clinical laboratories and research production environments.

Features

• Microprocessor control with touch panel, LED and LCD display; operating data can be saved automatically; RCF can be set directly for simplified operation.
• Brushless converter motor with high torque and imported high-speed bearings for smooth, low-maintenance operation.
• Multi-stage damping system and freon-free compressor sourced from Europe for low noise and reduced vibration.
• Durable steel outer body and stainless steel centrifugal chamber; key components imported for ease of cleaning and long service life.
• Safety systems: rotor identification, overspeed and over-temperature protection, door interlock and imbalance detection; rotor service-life calculation function to enhance operational safety.
• Pre-cooling design for the chamber enables fast cooling. Proprietary SCT speed control provides rapid acceleration and deceleration for efficient cycles.
• Adjustable acceleration/deceleration in 10 grades (0–9) or by direct time setting; up to 40 user-defined program profiles can be stored.
• Proprietary SBT control and rotor design to prevent sample mix-up and to maximize specimen recovery.
• Hold-on and transient centrifugation modes facilitate diverse protocols.
• Multi-purpose: combines high capacity with high speed for wide use in research, clinical and production workflows.

Technical Parameter
Model: CF-FLR10M / CF-FLR10MA
Max Speed: 10000 r/min
Max RCF: 18300×g
Max Capacity: 6000 ml
Speed Accuracy: ±20 r/min
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Time Range: 0-99H59min59s
Power Supply: AC 220V 50Hz 30A/35A or AC110V 60Hz
Noise: ≤ 65 dB
Dimension: 830 × 720 × 1250 mm
Weight: 268 / 298 kg


Rotors
Angle Rotor — No.33 — 6 × 500 ml — Max speed 8000 r/min — Max RCF 11680×g — Tube Ø74 × 168 mm
Angle Rotor — No.29 — 6 × 300 ml — Max speed 10000 r/min — Max RCF 18300×g — Tube Ø62 × 139 mm
Angle Rotor — No.36 — 6 × 1000 ml — Max speed 7200 r/min — Max RCF 12166×g — Tube Ø97 × 175 mm
Swing Rotor — No.65 — 6 × 1000 ml (round bucket) — Max speed 4200 r/min — Max RCF 5100×g — Bucket Ø100 × 175 mm
Swing Rotor — No.65 — 6 × 1000 ml (rectangle bucket) — Max speed 4200 r/min — Max RCF 5100×g — Suitable for 12 pcs of 200 ml blood bags
Swing Rotor — No.66 — 4 × 1000 ml — Max speed 4200 r/min — Max RCF 4430×g — Bucket Ø100 × 175 mm


Technical Specifications

• Model: CF-FLR10M / CF-FLR10MA
• Max speed: 10000 r/min
• Max RCF: 18300×g
• Max capacity: 6000 ml
• Speed accuracy: ±20 r/min
• Temperature range: -20°C to +40°C
• Temperature accuracy: ±1°C
• Time range: 0-99H59min59s
• Power supply: AC 220V 50Hz 30A/35A or AC110V 60Hz
• Noise level: ≤ 65 dB
• Dimensions (L×W×H): 830 × 720 × 1250 mm
• Weight: 268 / 298 kg
• Safety systems: rotor ID, overspeed, over-temperature, door interlock, imbalance detection
• Control: microprocessor, touch screen, data save, direct RCF setting
• Drive: brushless converter motor, imported high-speed bearings
• Additional systems: chamber pre-cooling, adjustable accel/decel, storage for 40 operation profiles
