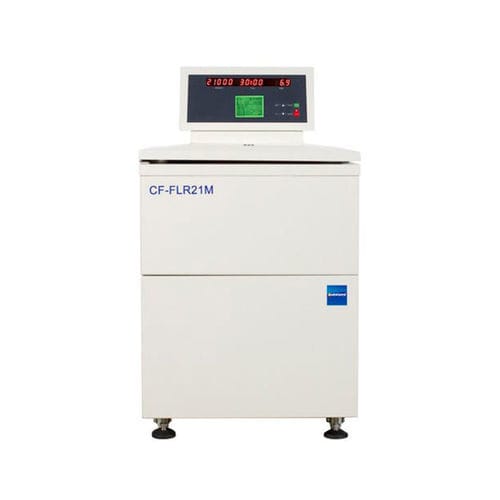

Laboratory centrifuge CF-FLR21M

floor-standingrefrigeratedhigh-speed

Product description
The CF-FLR21M is a floor-type refrigerated high-speed centrifuge designed for clinical and research laboratories. Microprocessor control with a touch panel enables direct RCF entry, automatic data storage and repeatable protocols suitable for diverse sample types and workflows.

Features

• Microprocessor control with touch panel, LED/LCD display; saveable operating data and direct RCF setting for straightforward use.
• Brushless inverter motor with high torque and premium high-speed bearings for smooth, maintenance-free rotation.
• Multistage damping and freon-free European compressor for low noise and minimal vibration.
• Steel exterior with stainless-steel rotor chamber; imported key components for durability and easy cleaning.
• Rotor identification system; protections for overspeed, over-temperature, door interlock and imbalance; rotor service-life monitoring.
• Pre-cooling chamber design and proprietary SCT speed control for rapid acceleration/deceleration and improved workflow efficiency.
• Adjustable acceleration/deceleration (grade 0–9) or direct time-based accel/decel; stores 40 user-programmable protocols.
• Hold-on and pulse/interrupt centrifugation modes to accommodate varied separation protocols.

Technical parameters
Model: CF-FLR21M
Max Speed: 21000 r/min
Max RCF: 48900 xg
Max Capacity: 3000 ml
Speed Accuracy: ±50 r/min
Temperature Range: -20°C – 40°C
Temperature Accuracy: ±1°C
Time Range: 0-99H59min
Power Supply: AC 220V 50Hz / AC 110V 60Hz, 35A
Noise: ≤65 dB
Dimension: 810 × 710 × 1220 mm
Weight: 320 kg

Rotors
Rotor Type | Number | Capacity | Max Speed (r/min) | Max RCF (×g) | Dimension of tube (mm)
Angle Rotor | No.3 | 16×10 / 1.5 ml | 21000 | 48900 | Φ16×81 / Φ11×41.5
Angle Rotor | No.5 | 6×50 ml | 20000 | 43000 | Φ28×105
Angle Rotor | No.15 | 8×50 ml | 15000 | 27720 | Φ29×106.5
Angle Rotor | No.20 | 8×100 ml | 12000 | 19830 | Φ38×124
Angle Rotor | No.24 | 4×300 ml | 11000 | 19300 | Φ63×158 (round bottom)
Angle Rotor | No.28 | 6×300 ml | 10000 | 18500 | Φ63×157 (round bottom)
Angle Rotor | No.35 | 6×500 ml | 8000 | 11680 | Φ74×168
Swing Rotor | No.61 | 4×500 ml | 5000 | 5470 | Φ80×140
Swing Rotor | No.62 | 4×50 ml | 5000 | 4390 | Φ28×105-115
Swing Rotor | No.76 | 32×15 ml | 4000 | 3160 | Φ16×114-118
Swing Rotor | No.80 | 8×50 ml | 4000 | 2950 | Φ28×105-115
Swing Rotor | No.42 | 2×(2×96 holes) | 4000 | 2300 | Microtiter plate
Continuous Rotor | No.46 | 1000 ml | 14000 | 21500 | (continuous rotor configuration)

Specifications

• Model: CF-FLR21M
• Max Speed: 21000 r/min
• Max RCF: 48900 × g
• Max Capacity: 3000 ml
• Speed Accuracy: ±50 r/min
• Temperature Range: -20°C to 40°C
• Temperature Accuracy: ±1°C
• Time Range: 0–99H59min
• Power Supply: AC 220V 50Hz / AC 110V 60Hz, 35A
• Noise Level: ≤65 dB
• Dimensions (W×D×H): 810 × 710 × 1220 mm
• Weight: 320 kg
