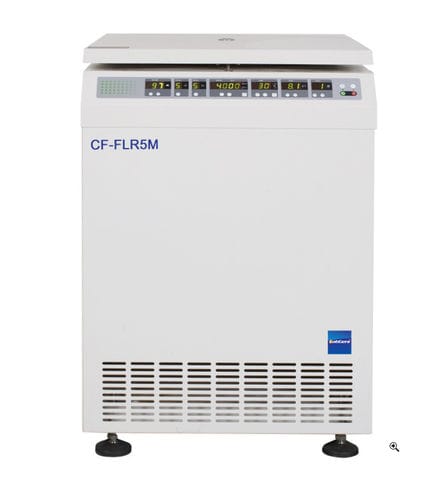

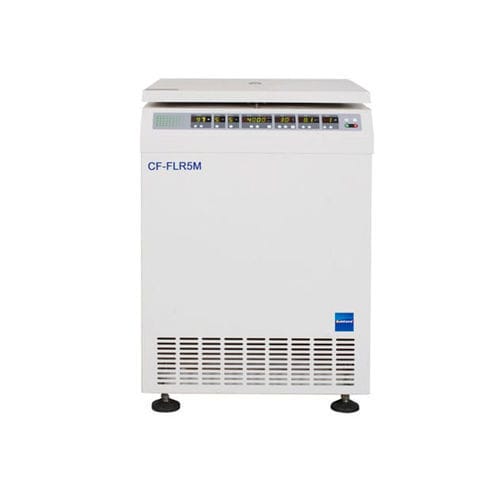

Centrifuge for pharmaceutical applications CF-FLR5M

laboratorycleaningfloor-standing

Overview CF-FLR5M is a refrigerated floor centrifuge designed for clinical, biochemical and pharmaceutical laboratories requiring large capacity and gentle, low-speed processing. It features microprocessor control with a touch panel and digital LED display, direct RCF input, brushless converter motor and a freon-free compressor. The robust steel cabinet and stainless-steel rotor chamber enable easy cleaning and long service life. Multiple safety protections and pre-cooling for the chamber ensure reliable, high-throughput operation.

Features

• Microprocessor control with touch panel and digital LED display; operational data can be saved automatically; direct RCF input for precise protocol setup.
• Brushless converter motor with high torque and imported bearings for smooth, low-maintenance running.
• Multistage damping system and freon-free compressor to minimize noise and vibration in laboratory environments.
• Steel body with stainless-steel centrifugal chamber and imported key components for durability and simplified cleaning.
• Comprehensive safety protections: over-speed, over-temperature, door interlock and imbalance protection.
• Pre-cooling chamber design for rapid temperature stabilization; fast acceleration and deceleration to maximize throughput.
• Wide rotor and adapter compatibility (5 ml to 500 ml, immuno tubes, vacuum blood collection tubes, microplates) to cover clinical and research workflows.
• Adjustable acceleration/deceleration settings (grade 0–9 or direct time) to optimize separation results.

Technical Parameter:
Model: CF-FLR5M
Max Speed: 5000 r/min
Max RCF: 4390 × g
Max Capacity: 3000 ml
Speed Accuracy: ±50 r/min
Temperature Range: -20°C to +40°C
Temperature Accuracy: ±1°C
Time Range: 0-99 min
Power Supply: AC 220V 50Hz / AC110V 60Hz 20A
Noise: ≤ 65 dB
Dimension: 615 × 780 × 900 mm
Net Weight: 190 kg

Rotor / Adapter Options (selection)
Angle Rotor | No.40 | 12×10 ml | Max speed 5000 r/min | Max RCF 3500 × g | Tube Ø16×81 mm
Swing Rotor | No.63 | 4×50/100 ml | Max speed 5000 r/min | Max RCF 4390 × g | Tube Ø38×124 mm
Swing Rotor | No.69 | 4×500 ml | Max speed 4000 r/min | Max RCF 3580 × g | Tube Ø80×140 mm
Adaptor | 12×50 ml / 8×100 ml | Max speed 4000 r/min | Max RCF 3580 × g
Swing Rotor | No.70 | 4×250 ml | Max speed 4000 r/min | Max RCF 3500 × g | Tube Ø64×112 mm
Adaptor | 8×50 ml / 36×10 ml | Max speed 4000 r/min | Max RCF 3500 × g
Swing Rotor | No.84 | 148×7 ml | Max speed 4000 r/min | Max RCF 3200 × g | Immuno tube
Swing Rotor | No.84 | 120×7 ml | Max speed 4000 r/min | Max RCF 3200 × g | Vacuum blood collection tube
Swing Rotor | No.75 | 72×5 ml | Max speed 4000 r/min | Max RCF 2830 × g | Tube Ø14×54 mm
Swing Rotor | No.77 | 32×10/15 ml | Max speed 4000 r/min | Max RCF 2810 × g | Tube Ø16×114-118 mm
Swing Rotor | No.81 | 8×50/100 ml | Max speed 4000 r/min | Max RCF 2810 × g | Tube Ø16×114-118 mm
Swing Rotor | No.85 | 96×7 ml | Max speed 4000 r/min | Max RCF 2800 × g | Immuno tube
Swing Rotor | No.85 | 80×7 ml | Max speed 4000 r/min | Max RCF 2800 × g | Vacuum blood collection tube
Swing Microplate Rotor | No.43 | 2×2×96 holes | Max speed 4000 r/min | Max RCF 2300 × g | Microtiter plate compatible

Specifications

• Control: Microprocessor with touch panel and LED display
• Max speed: 5000 r/min
• Max RCF: 4390 × g
• Capacity: up to 3000 ml (dependent on rotor/adaptor)
• Temperature range: -20°C to +40°C; accuracy ±1°C
• Time range: 0–99 minutes
• Power: AC 220V 50Hz or AC110V 60Hz (20A)
• Noise level: ≤ 65 dB
• Dimensions: 615 × 780 × 900 mm; Net weight: 190 kg
• Safety: over-speed, over-temperature, door interlock, imbalance protection
• Rotors/adapters: multiple angle and swing rotor options for tubes (from 5 ml up to 500 ml), immuno tubes, vacuum blood collection tubes and microplate rotor
