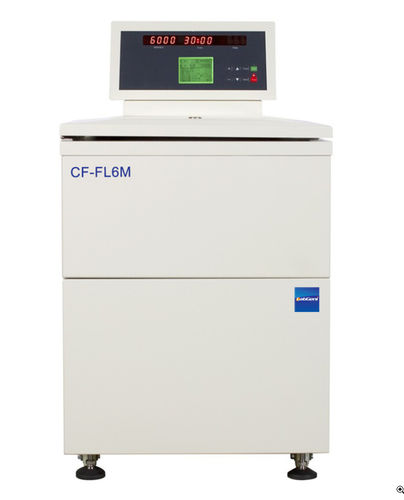

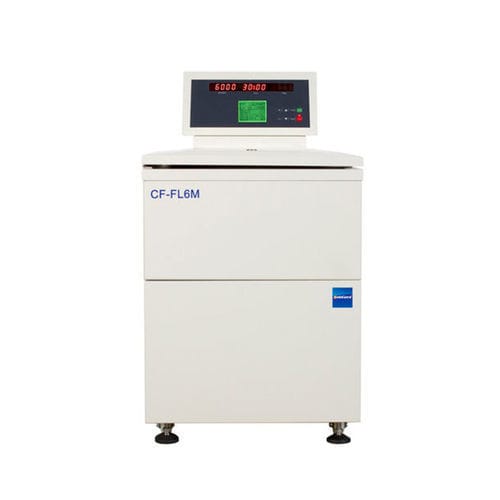

Centrifuge for pharmaceutical applications CF-FL6M

laboratoryfloor-standingdigital display

Product overview
CF-FL6M floor-standing low-speed large-capacity centrifuge, max speed 6000 r/min. Microprocessor control with touch panel and LED/LCD display; suitable for serology, biochemistry, pharmaceutical R&D and blood product separation.

Features

• Microprocessor control with touch panel and LED/LCD display; operating data can be saved automatically; RCF value can be entered directly for accurate runs.
• Brushless converter motor with high torque and European high-speed bearings for smooth, maintenance-free operation.
• Multistage damping system to minimize vibration and reduce noise (≤65 dB).
• Sturdy steel cabinet with stainless steel centrifugal chamber; imported key components for durability and easy cleaning.
• Comprehensive safety: rotor identification, over-speed protection, door interlock, imbalance protection and rotor service-life calculation.
• Adjustable acceleration/deceleration (grades 0–9) or direct time input for Accel/Decel; stores up to 40 user-defined programs for repeatable protocols.
• Proprietary SBT control and rotor design to prevent sample mix-up and maximize specimen recovery.
• Hold-on and transient centrifugation modes for flexible processing.
• Compatible with multiple adapters (5 ml, 7 ml, 10 ml, 15 ml, 30 ml, 50 ml, etc.) to meet varied laboratory needs.

Technical parameters

• Model: CF-FL6M
• Max speed: 6000 r/min
• Max RCF: 6680×g (depending on rotor)
• Max capacity: 6000 ml
• Speed accuracy: ±20 r/min
• Time range: 0–99 h 59 min 59 s
• Power supply: AC 220V 50Hz or AC 110V 60Hz (25A)
• Noise level: ≤65 dB
• Dimensions (W × D × H): 830 × 720 × 1250 mm
• Weight: 190 kg
• Control: Microprocessor touch-panel with LED/LCD; stores up to 40 programs
• Safety features: rotor ID, over-speed protection, door interlock, imbalance protection, rotor life calculation

Rotor

• Angle rotor No.33: 6 × 500 ml | Max speed 6000 r/min | Max RCF 6680×g | Tube dimension Φ74 × 168 mm
• Angle rotor No.29: 6 × 300 ml | Max speed 6000 r/min | Max RCF 5650×g | Tube dimension Φ62 × 139 mm
• Swing rotor No.65 (round bucket): 6 × 1000 ml | Max speed 4200 r/min | Max RCF 5100×g | Tube dimension Φ100 × 175 mm
• Swing rotor No.65 (rectangular bucket): 6 × 1000 ml | Max speed 4200 r/min | Max RCF 5100×g | Also fits 12 × 200 ml blood bags
