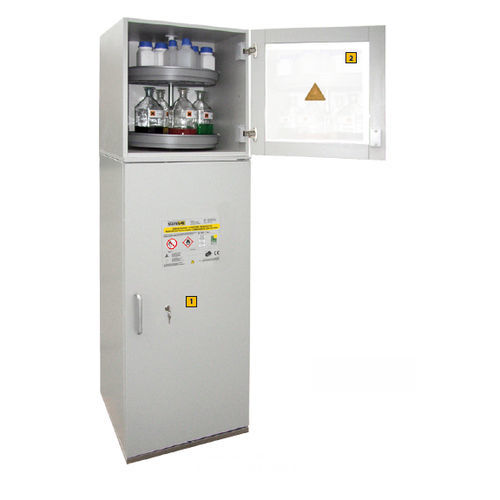

Storage cabinet Typ 90 / 600 KL2

floor-mountedhinged doorsheet steel

Approved for the storage of fl ammable liquids at the workplace as per DIN EN 14470-1 (type 90) and TRGS 510, annex 3, toxic and very toxic substances, acids and alkalis. Ideal combination for storage of various hazardous substances in a very small space Safety cabinet (type 90) for fl ammable liquids as per DIN EN 14470-1 Whole construction tested and approved by an authorized materials testing institute as per DIN EN 14470-1 (type 90) with a fi re resistance of >90 minutes GS-approved safety (GS-sign) Insulation according to DIN 4102 Outer body made from powder-coated sheet steel, RAL 7035 - light grey Inner body made from HPL coated sheets - RAL 7035 Stainless steel base plate - Niro Rhombus Shelf height-adjustable at intervals of 64 mm DN 80 ventilation connection for exhaust air extraction on cabinet roof Operation complies with TRGS 510 (approved even with exhaust air connection!) Ground connection in accordance with TRBS 2153 (avoidance of sources of ignition) Markings according to DIN EN 14470-1 / TRGS 510 / ISO 3864 / ASR A1.3 Leveling feet for installing cabinet horizontally Doors with cylinder lock
