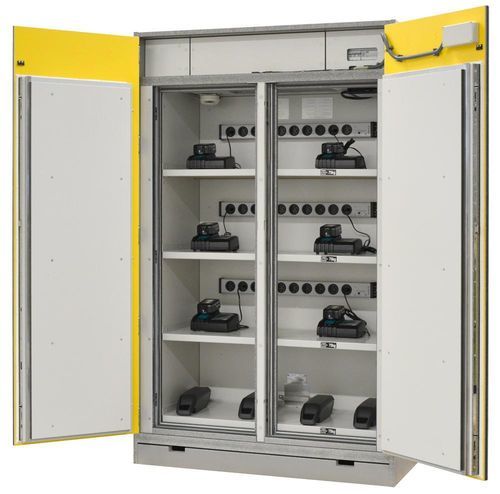

Floor-mounted electric cabinet B80-8017-A

free-standingaluminumsteel

Overview
The SiS Li‑Ion Premium I/O 90 battery cabinet by LaCont is a tested solution for safe storage and optional charging of lithium‑ion batteries. Designed and tested to VDMA 24994 standards, the cabinet limits risks from internal thermal runaway and provides >90 minutes external fire resistance. With an assessed total energy capacity up to 8.0 kWh, integrated pressure relief and mechanical ventilation, it reduces the release of flames, projectiles and shrapnel in battery failure scenarios.

Main features

• Designed for storage and charging of lithium‑ion batteries; tested according to VDMA 24994
• Tested for internal thermal runaway and >90 minutes external fire resistance
• Proven to prevent escape of flames, projectiles and shrapnel in real-world tests
• Maximum tested energy capacity per cabinet: 8.0 kWh
• Non-combustible construction; body RAL aluminium colour, doors RAL 1023 (traffic yellow)
• Perimeter fire-protection seals that foam up automatically in case of fire
• Double-leaf door with central mullion; lockable with profile cylinder; audible reminder 60 s after doors left open
• Technical mechanical ventilation to avoid internal heat build-up; ventilation shuts off on fire detection
• Base with 100 mm clearance for vehicle underpass; removable base panel
• Height-adjustable powder-coated steel shelves: 4 levels, 75 kg load per level
• Floor tray AwSV-compliant, powder-coated sheet steel, capacity 5 litres
• Optional power-strip version: up to 3 shelf levels with power strip (10 earthed sockets per strip)
• Integrated control unit with visual and audible status indicators and fire detection as standard
• Complete emergency disconnection of cabinet power supply; surge protection included
• Operating voltage: 400 V (3-phase)

Control & safety systems

• Control unit with visual status indicator (normal / fault / alarm) as standard
• Built-in sensitive smoke detector and fire detection; immediate visual and audible alarm on detection
• Automatic shutdown of cabinet power supply and mechanical ventilation when fire is detected
• Potential-free contact for alarm differentiation and forwarding to a control centre
• Cable preparation inside and outside for retrofit connection to a building fire alarm system
• Optional GSM module for remote monitoring and alarm notification

Active fire suppression (optional)
Optionally fitted with an integrated aerosol fire‑extinguishing generator that activates automatically upon critical temperature rise or fire; the aerosol fills the interior within seconds to suppress flames and limit fire spread.

Protection objectives

• Protect stored goods from external fire
• Limit spread of smoke and fire if an internal battery fire occurs
• Minimise risk to personnel from toxic or explosive gas release
• Protect against projectiles and shrapnel
• Signal critical internal conditions to staff and emergency services and interface with existing fire-protection systems

Technical table (selected entries)
Model — SiS Li‑Ion Premium I/O 90
Fire resistance class: I/O 90
Internal fire resistance: Thermal runaway (VDMA 24994)
External fire resistance: 90 mins (VDMA 24994)
Basis for audit: VDMA 24994
Certification: ECB•S Certificate (VDMA)
Maximum charge energy: 8 kWh tested (with raw cells)
Maximum charging power per cabinet: 10.5 kW
Can be charged in the cupboard: optional
Number of charging points: 0 / 3
Integrated pressure relief: yes
Integrated mechanical ventilation: yes
Self-closing doors: no
Control unit: standard
Smoke detectors / Fire detection: standard
Mechanical ventilation: standard
Shutting off the ventilation in the event of a fire: standard
Visual and audible status indicators: yes
Visual and audible alarms in the event of a fire: yes
Shutdown in the event of an emergency: full disconnection of cabinet power supply
Active fire suppression: optional (aerosol extinguishing generator)
Voltage-free interface: yes (with alarm differentiation)
Pre-fitted cable for customer fire alarm: yes
Locking system: door handle with profile cylinder (compatible with locking systems)
Number of grating floors: 0
Number of steel shelves, powder-coated: 4
Load-bearing capacity of the shelves: 75 kg per level
Base clearance for pallet truck / forklift: 100 mm (removable plinth panel)
Floor pan capacity: 5 litres (AwSV compliant)
Surge protection: yes
Supply voltage: 400 V (3-phase)

Technical specifications

• Model: SiS Li‑Ion Premium I/O 90
• Fire resistance basis: VDMA 24994 (thermal runaway inside, O 90 outside)
• Certification: ECB•S (VDMA)
• Max. tested stored/charge energy per cabinet: 8.0 kWh
• Max. charging power per cabinet: 10.5 kW (max. 3.5 kW per power strip)
• Shelves: 4 steel shelves, height-adjustable, 75 kg load capacity per level
• Base clearance: 100 mm for pallet truck/forklift
• Floor tray volume: 5 litres (AwSV compliant)
• Integrated pressure relief and mechanical ventilation (with shutdown on fire)
• Control unit: standard (visual & audible indicators, potential-free contact)
• Active fire suppression: optional aerosol extinguishing generator
• Supply voltage: 400 V (3-phase, 3 x 16 A)
• Surge protection: yes
