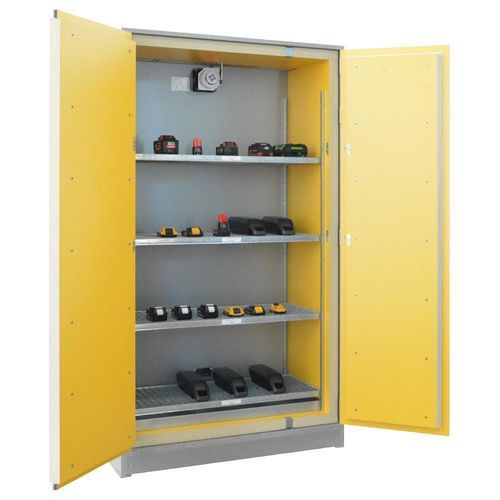

Free-standing electric cabinet B80-8003-A

aluminumindustrialfor electrical equipment

Overview
The Basic Battery Cabinet from LaCont, model SiS Li-Ion Basic, is an entry-level solution for passive and active storage and optional charging of lithium-ion batteries. It is designed around certified fire resistance (EI90), combining non-combustible construction, integrated detection and mechanical ventilation to limit fire propagation and protect people, property and adjacent goods.

Key features

• Certified complete structure with EI90 fire resistance (90 minutes internal and external)
• Constructed from non-combustible materials (Class A2 – s1, d0 according to DIN EN 13501-1); body aluminium colour, doors RAL 1023 (traffic yellow)
• Perimeter fire protection seals that expand and foam in case of fire
• Doors lockable with double-bit cylinder lock (swing lever)
• Integrated ventilation system with smoke detector and fan (mechanical ventilation standard)
• Fire-resistant cable entries at top and bottom
• Smooth-opening doors with 180° opening angle, non-self-closing
• Base with 100 mm clearance for pallet truck/forklift and removable base panel
• Storage levels with height-adjustable grating; load capacity 75 kg per shelf; 4 grating floors
• Integrated floor pan (drip tray) capacity 17 litres
• Surge protection included

Active features / Options

• Charging options (Basic Charge): optional power strips — configurations 0 / 2 / 4 (up to 10-socket strips possible); max. charging power per cabinet 3.5 kW, max. 2 kW per power strip
• Recommended maximum charge energy: max. 8 kWh (for standard rechargeable batteries only)
• Optional control unit with visual status indicator and fault signalling; ventilation shutdown on smoke detection
• Optional active fire suppression (e.g. integrated aerosol extinguishing generator with automatic activation)
• Potential-free contact for external control/monitoring systems
• Accessible and movable by pallet truck or forklift thanks to 100 mm plinth; plinth panel removable without tools

Technical data (excerpt)
Fire resistance class: EI90
Internal fire resistance: 90 min (EN 1363-1)
External fire resistance: 90 min (EN 1363-1)
Standards: DIN EN 1363-1:2012-10
Certification: Report by MPA Dresden
Maximum recommended charge energy: max. 8 kWh (standard rechargeable batteries)
Maximum charging power per cabinet: 3.5 kW
Charging point options: 0 / 2 / 4
Integrated mechanical ventilation: yes (standard)
Smoke detection: standard
Ventilation shut-off on fire: standard
Active fire suppression: optional
Potential-free interface: yes
Cable entry: top/bottom possible
Supply voltage: 230 V
Number of grating floors: 4
Load capacity per shelf: 75 kg
Base clearance: 100 mm (removable plinth panel)
Floor pan capacity: 17 litres

Specifications

• Model name: SiS Li-Ion Basic
• Manufacturer: LaCont
• Fire resistance class: EI90
• Standards / basis: DIN EN 1363-1:2012-10
• Certification: Report by MPA Dresden
• Max. recommended charge energy: max. 8 kWh
• Max. charging power per cabinet: 3.5 kW
• Charging points: 0 / 2 / 4
• Supply voltage: 230 V (16 A single-phase fuse)
• Number of grating floors: 4
• Load capacity per shelf: 75 kg
• Floor pan capacity: 17 litres
• Base clearance / pallet access: 100 mm (removable plinth)
• Materials classification: non-combustible Class A2 – s1, d0
