Floor-mounted electric cabinet B80-8012-V

free-standingaluminumsheet steel

Overview

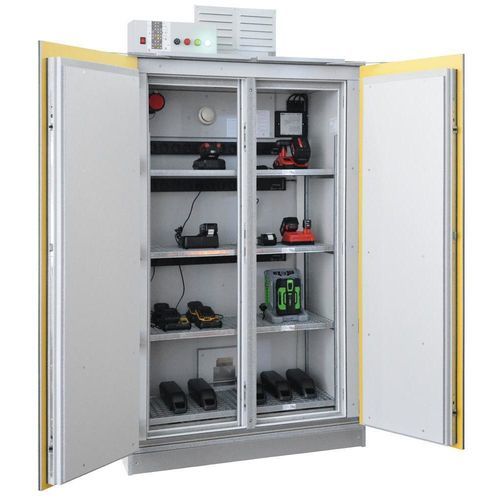

The Safe Pro Battery Cabinet SiS Li‑Ion 90 from LaCont is a Pro model designed for professional active and passive storage and optional charging of lithium‑ion batteries. The cabinet is GS‑certified (MPA Dresden) according to audit standard EK5 / AK4 22‑01 and has passed a live fire test. It offers dual‑direction 90‑minute fire resistance, permanent self‑closing doors, visual and audible status indicators and alarms, automatic power and ventilation shutdown in emergencies, integrated mechanical ventilation for normal operation and environmental protection via an integrated floor pan.

Key features

• Pro model for professional storage and optional charging of lithium‑ion batteries with GS mark (MPA Dresden) audited to EK5 / AK4 22‑01
• 90 minutes external fire resistance in accordance with DIN EN 14470‑1
• 90 minutes internal fire resistance in accordance with DIN EN 1363‑2
• Tested smoke‑tightness
• Permanent self‑closing doors tested for long‑term functionality (DIN EN 16121 and DIN EN 16122)
• Constructed from non‑combustible building materials; body typically RAL aluminium, doors typically RAL 1023 (traffic yellow)
• Perimeter seals that foam in the event of fire for enhanced sealing
• Double‑leaf door with central mullion, lockable with profile cylinder (compatible with locking systems)
• Integrated mechanical ventilation to prevent heat build‑up during charging (standard)
• Base clearance for pallet truck/forklift (100 mm) with removable base panel
• Height‑adjustable grating floors; load capacity 75 kg per level
• Floor pan (drip tray) compliant with AwSV; powder‑coated sheet steel, capacity 5 litres
• Each grating level can be equipped with a power strip (10 earthed sockets) for organised charging
• Control unit included as standard with visual and audible indicators and smoke detection
• Complete automatic disconnection of cabinet power supply in case of emergency
• Surge protection included
• Supply voltage options: 230 V (single‑phase) or 400 V (3‑phase)

Optional equipment & additional functions

• Optional integrated aerosol fire‑extinguishing generator activates automatically on critical temperature rise or fire
• Optional active fire suppression systems
• Optional GSM module for remote monitoring and alarm notification
• Power strip options and pre‑installed cable preparation for connection to a fire alarm system (potential‑free contact for external signalling)

Product information

• Designed and manufactured in Germany with a focus on certified 90‑minute fire protection
• Intended to protect personnel and property by preventing fire spread and providing time for emergency response

Technical specifications

• Model designation: SiS Li‑Ion 90 Safe Pro
• Fire resistance class: 90 minutes
• Internal fire resistance: 90 minutes (EN 1363‑2)
• External fire resistance: 90 minutes (EN 14470‑1)
• Audit basis: EK5 / AK4 22‑01
• Certification: GS certificate (MPA Dresden)
• Maximum recommended charge energy: 12 kWh (standard batteries)
• Maximum charge energy (VDMA 24994): not specified
• Charging in cabinet: optional
• Number of charging points (configurable): 0 / 2 / 4
• Maximum charging power per cabinet: 3.5 kW at 230 V; 10.5 kW at 400 V
• Integrated pressure relief: not specified
• Integrated mechanical ventilation: yes (standard)
• Self‑closing doors: yes (permanent)
• Control unit: included as standard
• Smoke detection / fire detection: included as standard
• Ventilation shut‑off in the event of fire: automatic (standard)
• Visual and audible status indicators (normal / fault / alarm): yes
• Visual and audible alarms in the event of fire: yes
• Emergency shutdown: full disconnection of power supply
• Active fire suppression: optional
• Voltage‑free interface (potential‑free contact): yes
• Cable entry / pre‑installed cable for customer fire alarm: prepared; pre‑installed cable for fire alarm: yes
• Locking system: door handle with profile cylinder (compatible with locking systems)
• Number of grating floors: 4
• Number of steel shelves, powder‑coated: 0 (standard uses grating floors)
• Load capacity of floors: 75 kg per level
• Base clearance for vehicle passage: yes (100 mm)
• Floor pan (drip tray): 5 litres, powder‑coated sheet steel, RAL 7035 light grey
• Surge protection: yes
• Supply voltage: 230 V or 400 V
