Control electric cabinet B80-8011-V

PDUfloor-mountedfree-standing

Product overview

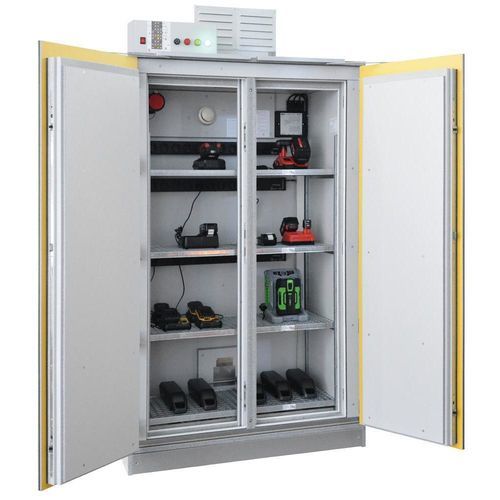

The Safe Pro Battery Cabinet by LaCont (model SiS Li‑Ion 90 Safe Pro) is designed for organised storage and optional charging of lithium‑ion rechargeable batteries. It supplies certified extended fire protection (GS certificate, live‑fire test) and is engineered to minimise fire spread, smoke release and hazards to personnel.

Key features

• GS certification (MPA Dresden) audited to EK5 / AK4 22‑01 with a successful live‑fire test on batteries.
• Fire resistance: 90 minutes external (EN 14470‑1) and 90 minutes internal (EN 1363‑2).
• Self‑closing double‑leaf doors with central mullion; doors lock automatically in the event of fire.
• Perimeter fire seals that expand/foam under heat; constructed from non‑combustible materials.
• Tested smoke tightness to limit toxic gas release.
• Integrated mechanical ventilation (standard) to prevent heat build‑up during charging; ventilation cuts out automatically on fire.
• Visual and audible status indicators and alarms; control unit with smoke detection included as standard.
• Automatic full power cut‑off in emergency situations.
• Optional integrated aerosol extinguishing generator for immediate internal suppression on critical temperature rise or fire.
• Optional active fire suppression systems and optional GSM module for remote monitoring and alarm notification.
• Organised charging with optional power strips (each grating level can accept a power strip with 10 earthed sockets).
• Base clearance 100 mm for pallet truck/forklift access; removable plinth panel.
• Floor pan/drip tray (powder‑coated steel) compliant with AwSV, capacity 5 litres to contain hazardous liquids.

Technical specifications (table)
Model: SiS Li‑Ion 90 Safe Pro
Fire resistance class: 90 minutes
Internal fire resistance: 90 minutes (EN 1363‑2)
External fire resistance: 90 minutes (EN 14470‑1)
Basis for audit: EK5 / AK4 22‑01
Certification: GS certificate (MPA Dresden)
Maximum recommended stored charge energy: 12 kWh (standard batteries)
Charging points: 0 / 2 / 4
Maximum charging power per cabinet: 3.5 kW (230 V) or 10.5 kW (400 V)
Integrated mechanical ventilation: Yes (standard); shuts down on fire
Self‑closing doors: Yes (tested to DIN EN 16121 / 16122)
Control unit: Visual and audible indicators, smoke detection (standard)
Shutdown in emergency: Full power supply cut‑off
Floor pan capacity: 5 L (AwSV compliant)
Base clearance: 100 mm (forklift/pallet truck access)
Load capacity per level: 75 kg
Number of grating floors: 4
Number of steel shelves (powder‑coated): 0
Surge protection: Yes
Potential‑free contact (voltage‑free interface): Yes
Pre‑installed fire alarm cable: Yes
Supply voltage: 230 V or 400 V

Additional product features

• Aerosol extinguishing generator: optional integrated device activates automatically on critical temperature rise or fire to suppress internal flames.
• Power strip: optional integrated power strips enable tidy, level‑by‑level charging; available power depends on cabinet voltage version.
• Control unit behaviour: on smoke/fire detection the unit triggers visual/audible alarm, shuts off power and ventilation, and provides a potential‑free contact for external signalling.
• Installation preparation: cable entries and pre‑wiring provided for fire alarm sensor connection to building systems.
• Operating voltage and fuses: 230 V single‑phase (1×16 A) or 400 V three‑phase (3×16 A); power limits vary by configuration.

Specifications

• Model name: SiS Li‑Ion 90 Safe Pro
• GS certified (MPA Dresden), audit standard EK5 / AK4 22‑01
• Fire resistance: 90 minutes (internal and external)
• Max recommended stored charge energy: 12 kWh (standard batteries)
• Charging points: 0 / 2 / 4
• Max charging power: 3.5 kW (230 V) or 10.5 kW (400 V)
• Integrated mechanical ventilation; ventilation cutoff on fire
• Visual and audible status indicators and alarms; full power shutdown on emergency
• Floor pan: 5 L (AwSV compliant); base clearance 100 mm; removable plinth
• Load capacity per level: 75 kg; number of grating floors: 4
• Optional aerosol extinguishing generator and active suppression
• Surge protection and potential‑free contact for external monitoring
