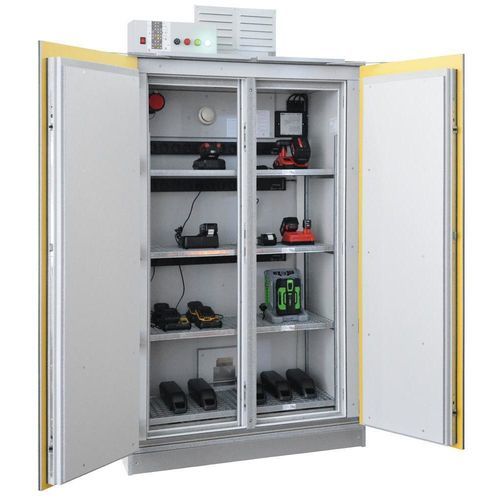

Control electric cabinet B80-8010-A

floor-mountedfree-standingsheet steel

Product overview
The Safe Pro battery cabinet from LaCont is a Pro model for both active and passive storage and for optional charging of lithium‑ion rechargeable batteries. It holds a GS certificate (MPA Dresden) based on audit criteria EK5 / AK4 22-01 and has passed a real‑fire test on a cabinet equipped with batteries. Designed to prevent fire and smoke spread, the cabinet offers tested 90‑minute fire resistance and signals critical internal conditions via visual and audible indicators.

Key features

• Pro model for active and passive storage of lithium‑ion batteries with GS certification (EK5 / AK4 22-01) and passed real‑fire test at MPA Dresden
• Tested external fire resistance 90 minutes (DIN EN 14470-1)
• Tested internal fire resistance 90 minutes (DIN EN 1363-2)
• Smoke‑tight design and perimeter fire protection seals that foam on exposure to heat
• Permanent, self‑closing double‑leaf doors with central mullion and profile cylinder lock
• Constructed from non‑combustible materials with protective coating (body RAL aluminium colour / doors RAL 1023 traffic yellow)
• Integrated mechanical ventilation to prevent heat build‑up during charging; ventilation is fully shut off in the event of fire
• Integrated control unit with visual and audible status indicators, smoke detection and full power disconnection on emergency
• Pre‑installed cable preparation and potential‑free contact for integration with site fire alarm systems
• Optional integrated aerosol extinguishing generator for automatic internal suppression
• Optional GSM module for remote monitoring and alarm notification
• Base clearance 100 mm for pallet truck or forklift access; removable plinth panel
• Integrated floor pan (drip tray) for liquid containment (5 litres)
• Surge protection included

Technical specifications (summary)

• Model: Safe Pro (LaCont)
• Certification: GS certificate (MPA Dresden), audit standard EK5 / AK4 22-01
• Fire resistance class – 90 minutes
• Internal fire resistance – 90 minutes (EN 1363-2)
• External fire resistance – 90 minutes (EN 14470-1)
• Recommended maximum stored/charged energy – Max. 12 kWh (standard batteries)
• Charging configuration – 0 / 2 / 4 charging points (optional)
• Maximum charging power per cabinet – 3.5 kW (230 V) / 10.5 kW (400 V)
• Integrated mechanical ventilation – yes (standard), shuts off on fire
• Control unit – standard (visual & audible indicators, power/ventilation shutoff on alarm)
• Smoke detectors / Fire detection – standard
• Active fire suppression – optional (aerosol extinguishing generator)
• Voltage‑free interface – yes
• Pre‑installed cable for customer fire alarm – yes
• Number of grating floors – 4 (height‑adjustable)
• Load capacity per level – 75 kg
• Base clearance – 100 mm for vehicle access
• Floor pan capacity – 5 litres (powder‑coated sheet steel RAL 7035)
• Supply voltage – 230 V or 400 V
