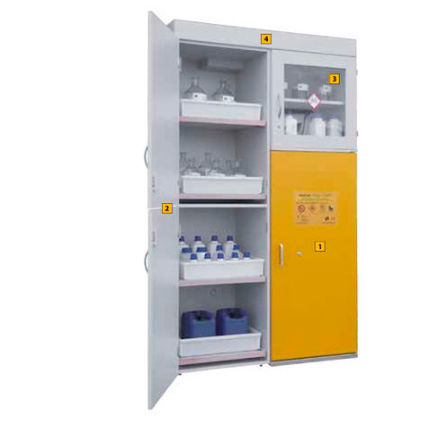

Storage cabinet Type 90 / 1200 KL1

floor-mounteddouble-doorshelf

Approved for storage of fl ammable liquids at the workplace as per DIN EN 14470-1 (type 90) and TRGS 510, annex 3 Whole construction tested and approved by an authorized materials testing institute as per DIN EN 14470-1 (type 90) with a fi re resistance > 90 minutes GS-approved safety (GS-sign) Insulation according to DIN 4102 Outer body made from powder-coated sheet steel, RAL 7035 - light grey, doors either in RAL 7035 - light grey or RAL 1007 - daffodil yellow Inner body made from HPL-coated sheets - RAL 7035 Stainless steel base plate - Niro Rhombus Shelves height-adjustable at intervals of 64 mm Automatic thermal closing mechanism if fi re occurs • Doors after temperature increase to ≤50°C and • Inlet and outlet channels after temperature increase to 70°C (±10°C) DN 80 ventilation connection for exhaust air extraction on cabinet roof Operation complies with TRGS 510 (approved even without exhaust air connection!) Ground connection in accordance with TRBS 2153 (avoidance of sources of ignition) Markings according to DIN EN 14470-1 / TRGS 510 / ISO 3864 / ASR A1.3 Leveling feet for installing cabinet horizontally Doors with cylinder lock
