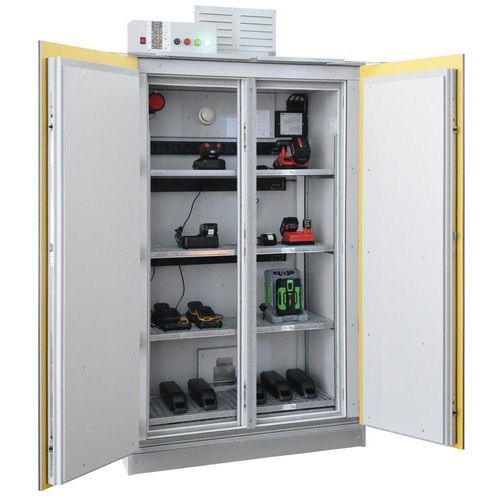

Control electric cabinet B80-8010-V

floor-mountedfree-standingindustrial

Overview
The Safe Pro Battery Cabinet from LaCont is a professional Pro model designed for the active and passive storage and optional charging of lithium-ion batteries. It offers GS certification (EK5 / AK4 22-01) and has passed a live fire test, providing certified 90-minute fire resistance to protect personnel, property and neighbouring equipment. The cabinet includes self-closing doors, visual and audible status indicators and automatic shutdown of power and ventilation in the event of a detected fire.

Key features

• Pro model specially designed for active and passive storage of lithium-ion batteries with GS certification and a completed real-fire test.
• Certified fire resistance: 90 minutes from the outside in (DIN EN 14470-1) and 90 minutes from the inside out (DIN EN 1363-2).
• GS mark from MPA Dresden, audited to EK5 / AK4 22-01.
• Smoke-tight construction and use of non-combustible building materials with protective coating.
• Perimeter fire protection seals that automatically foam in case of fire.
• Permanent self-closing doors tested for long-term functionality (DIN EN 16121 / DIN EN 16122).
• Integrated mechanical ventilation (with automatic shutdown in the event of a fire).
• Control unit as standard with visual and audible status indicators and smoke detection.
• Complete disconnection of the cabinet power supply in the event of an emergency and potential-free contact for external signalling.
• Optional integrated aerosol extinguishing generator (automatic activation on critical temperature rise or fire).
• Floor pan (5 litres) to contain leaked liquids and base with clearance for pallet truck / forklift access (100 mm).

Technical specifications (table)
Fire resistance class: 90 minutes
Internal fire resistance: 90 minutes (in accordance with EN 1363-2)
External fire resistance: 90 mins (in accordance with EN 14470)
Basis for audit: EK5 / AK4 22-01
Certification: GS certificate
Maximum charge energy: Max. 12 kWh recommended (for standard batteries only)
Maximum charge energy (VDMA 24994): –
Can be charged in the cupboard: optional
Number of charging points: 0 / 2 / 4
Maximum charging power per cabinet: 3.5 kW at 230 V and 10.5 kW at 400 V
Integrated pressure relief: –
Integrated mechanical ventilation: yes
Self-closing doors: yes (permanent)
Control unit: As standard
Smoke detectors / Fire detection: As standard
Mechanical ventilation: As standard
Shutting off the ventilation in the event of a fire: As standard
Visual and audible status indicators: yes
Visual and audible alarms in the event of a fire: yes
Shutdown in the event of an emergency: Yes – full power supply
Active fire suppression: Optional
Voltage-free interface: yes
Cable entry possible: –
Pre-installed cable for the customer’s fire alarm: yes
Locking system: Door handle with profile cylinder (compatible with locking systems)
Number of grating floors: 4
Number of steel shelves, powder-coated: 0
Load-bearing capacity of the floors: 75 kg per level
Base with clearance for vehicles to pass underneath: yes (100 mm)
Floor pan: yes (5 litres)
Surge protection: yes
Supply voltage: 230 V or 400 V

Product features / Facilities

• Power strip option: organised charging with power strips (each grating level can be fitted with a power strip with 10 earth-connected sockets).
• Control unit behaviour: power supply and integrated ventilation are switched off completely if a fire is detected; visual and audible alarm triggered; includes potential-free contact for signal transmission.
• Electrical connection options: 230 V (single-phase, 16 A) — models without power strips available in 230 V only; 400 V (3-phase, 3 x 16 A) for higher charging power.
• Maximum electrical power (230 V version with sockets): 3.5 kW total (max. 2 kW per power strip).
• Maximum electrical power (400 V version): up to 10.5 kW (max. 3.5 kW per power strip; for 4 power strips distribution differs per level).
• Optional GSM module available for remote monitoring and alarm notification.

Technical features / Specifications

• Model name (table reference): SiS Li-Ion 90 Safe Pro
• Fire resistance: 90 minutes (internal and external, DIN EN 1363-2 / DIN EN 14470-1)
• Certification: GS certificate (MPA Dresden) audited to EK5 / AK4 22-01
• Recommended maximum charge energy: max. 12 kWh (standard batteries)
• Charging points available: configurable 0 / 2 / 4
• Max. charging power: 3.5 kW (230 V), 10.5 kW (400 V)
• Integrated mechanical ventilation with automatic shutdown on fire
• Permanent self-closing doors with automatic locking on fire
• Perimeter foam-sealing seals for fire situations
• Floor tray capacity: 5 litres (AwSV compliant), powder-coated
• Load-bearing capacity per grating level: 75 kg
• Number of grating levels: 4
• Base plinth height for pallet truck access: 100 mm (removable plinth panel)
• Surge protection and pre-installed cable preparation for connection to external fire alarm systems
• Visual and audible status indicators and alarms as standard; potential-free contact for external signalling
• Optional integrated aerosol fire-extinguishing generator
• Door locking: door handle with profile cylinder compatible with locking systems
