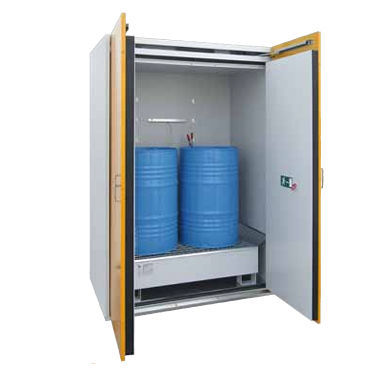

Storage cabinet SiS-FAS Typ 90 / 1550-CW

floor-mounteddouble-doorsheet steel

For storage of fl ammable liquids in containers and drums up to 200 liters inside buildings Whole construction tested and approved by an authorized materials testing institute as per DIN EN 14470-1 (type 90) with a fi re resistance > 90 minutes Insulation according to DIN 4102 Outer body made from powder-coated sheet steel in RAL 7035 - light grey, doors RAL 1007 - daffodil yellow Inner body made from HPL-coated sheets - RAL 7035 Stainless steel base plate - Niro Rhombus Base sump tray made from 3 mm sheet steel, painted in RAL 7035 - light grey, as per WHG - Ü-sign according to StawaR Automatic thermal closing mechanism if fi re occurs • Doors after temperature increase to ≤50°C and • Inlet and outlet channels after temperature increase to 70°C (±10°C) DN 80 ventilation connection for exhaust air extraction on cabinet roof Operation complies with TRGS 510 (approved even without exhaust air connection!) Ground connection in accordance with TRBS 2153 (avoidance of sources of ignition) Ground clamp as standard Markings according to DIN EN 14470-1 / TRGS 510 / ISO 3864 / ASR A1.3 Doors with cylinder lock Door inside clearance width 1310 mm Internal emergency opening device door hold-open device
