Product overview

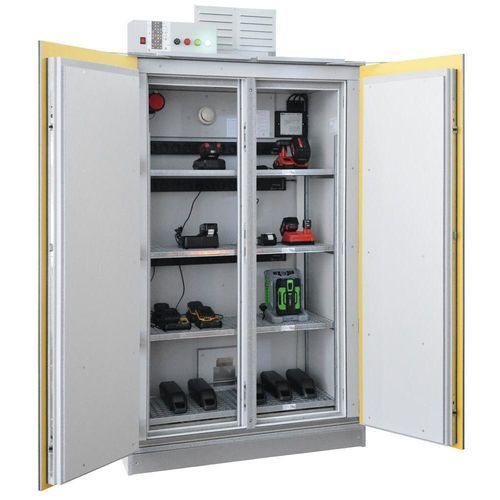

The Safe Pro battery cabinet by LaCont is a GS-certified Pro model designed for safe storage and optional charging of lithium‑ion batteries in industrial and commercial environments. The cabinet passed a real-fire test and provides 90 minutes fire resistance to protect personnel, limit fire spread and allow emergency response time.

Key features

• GS certification (MPA Dresden) audited to EK5 / AK4 22-01; tested with installed lithium‑ion batteries.
• Fire resistance: 90 minutes (tested from outside in and inside out).
• Self-closing doors with long-term functionality testing (DIN EN 16121 / DIN EN 16122).
• Smoke-tight construction and perimeter seals that foam automatically in case of fire.
• Built from non‑combustible materials with protective coating (body RAL aluminium / doors RAL 1023 traffic yellow).
• Visual and audible status indicators and alarms as standard.

Facilities and optional equipment

• Optional integrated aerosol extinguishing generator activating on critical temperature rise or fire.
• Integrated power strip options for organised charging at each storage level (each level can accept a strip with 10 earthed sockets).
• Integrated floor pan (drip tray) compliant with AwSV (powder-coated steel, 5 L) to contain hazardous liquids from cell damage.
• Mechanical ventilation to prevent heat build-up during charging; ventilation automatically shuts off in case of fire.
• Control unit with smoke detection, visual status indicator and potential-free contact for external signalling; on fire the unit cuts power and ventilation and triggers alarms.
• Automatic door closer: doors close and lock on fire to ensure the 90-minute enclosure function.
• Base with 100 mm clearance for pallet truck/forklift access; removable plinth panel.
• Height-adjustable mesh shelving; load capacity 75 kg per level; number of grating floors: 4.

Quality and safety

• Manufactured in Germany and engineered for operational safety in industrial/commercial sites.
• Designed to minimise risk from release of explosive or toxic gases and to signal critical internal conditions to personnel and emergency services.

Technical specifications

• Fire resistance class: 90 minutes
• Internal fire resistance: 90 minutes (EN 1363-2)
• External fire resistance: 90 minutes (EN 14470-1)
• Basis for audit: EK5/AK4 22-01
• Certification: GS certificate (MPA Dresden)
• Maximum recommended stored charge energy: 12 kWh (standard batteries)
• Can be charged in the cabinet: optional
• Number of charging points: 0 / 2 / 4
• Maximum charging power per cabinet: 3.5 kW at 230 V; 10.5 kW at 400 V
• Integrated mechanical ventilation: yes (shuts off on fire)
• Self-closing doors: yes (permanent)
• Control unit: standard (smoke detection, visual indicator, potential-free contact)
• Visual and audible alarms: yes
• Shutdown in emergency: full power supply cut
• Active fire suppression: optional (aerosol extinguishing generator)
• Pre-installed cable for customer's fire alarm: yes
• Locking system: door handle with profile cylinder (compatible with locking systems)
• Number of grating floors: 4
• Load-bearing capacity per floor: 75 kg
• Base clearance for vehicles: 100 mm
• Floor pan capacity: 5 litres
• Surge protection: yes
• Supply voltage: 230 V or 400 V
