Product overview

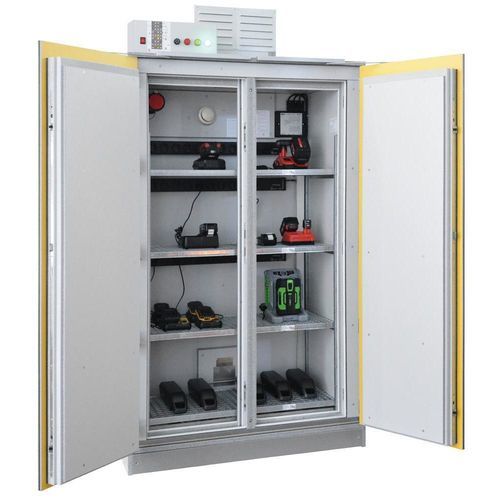

The SiS Li-Ion 90 Safe Pro battery cabinet is LaCont's professional model for the active and passive storage and, optionally, the charging of lithium‑ion rechargeable batteries. The cabinet offers certified extended fire protection (GS mark, live‑fire test) and is engineered to limit fire and smoke spread, protect stored units and alert personnel via visual and audible alarms. Doors are permanently self‑closing and the system performs automatic shutdown of power and ventilation in emergency situations.

Key features

• GS-certified (MPA Dresden) according to audit criteria EK5 / AK4 22-01; passed a live fire test with batteries.
• Tested fire resistance: 90 minutes (external: DIN EN 14470-1; internal: DIN EN 1363-2).
• Smoke-tight construction to limit smoke propagation.
• Permanently self-closing double-leaf doors (central mullion) tested for long-term functionality (DIN EN 16121 / DIN EN 16122).
• Constructed from non-combustible building materials; body and doors finished with defined RAL coatings.
• Perimeter fire protection seals that automatically expand/foam in case of fire.
• Integrated mechanical ventilation for normal charging operations; ventilation is automatically shut off in the event of fire.
• Standard control unit with visual and audible status indicators and fire/smoke detection.
• Complete disconnection of cabinet power supply in emergencies; potential-free contact for external signalling.

Optional equipment and facilities

• Optional integrated aerosol fire‑extinguishing generator that activates automatically on critical temperature rise or fire to suppress flames inside the cabinet.
• Optional power strips mounted at each grating level to enable organised charging (each strip can include up to 10 earthed sockets).
• Pre-installed cabling and cable preparation for connection of a customer fire alarm sensor; optional GSM module for remote monitoring.
• Base with removable plinth (100 mm) to enable movement with a pallet truck or forklift; plinth panel removable without tools.
• Integrated floor pan (drip tray) to contain hazardous liquids in case of cell damage (capacity: 5 litres).

Technical specifications

• Model designation: SiS Li-Ion 90 Safe Pro
• Fire resistance class: 90 minutes
• Internal fire resistance: 90 minutes (EN 1363-2)
• External fire resistance: 90 minutes (EN 14470-1)
• Basis for audit: EK5 / AK4 22-01
• Certification: GS certificate (MPA Dresden)
• Maximum recommended charge energy: Max. 12 kWh (recommended for standard batteries only)
• Maximum charge energy in accordance with VDMA 24994: –
• Can be charged inside the cabinet: optional
• Number of charging points: 0 / 2 / 4
• Maximum charging power per cabinet: 3.5 kW at 230 V; 10.5 kW at 400 V
• Integrated pressure relief: –
• Integrated mechanical ventilation: yes (standard)
• Self-closing doors: yes (permanent)
• Control unit: standard (visual & audible status indicators)
• Smoke detectors / Fire detection: standard
• Ventilation shut-off in event of fire: yes
• Visual and audible alarms in event of fire: yes
• Shutdown in emergencies: complete disconnection of power supply
• Active fire suppression: optional (aerosol extinguishing generator)
• Voltage-free interface (potential-free contact): yes
• Cable entry: pre-installed cable for customer fire alarm: yes
• Locking system: door handle with profile cylinder (compatible with access control systems)
• Number of grating floors: 4
• Number of steel shelves (powder-coated): 0
• Load-bearing capacity per floor level: 75 kg
• Base vehicle clearance: yes (100 mm)
• Floor pan (drip tray): yes (5 litres)
• Surge protection: yes
• Supply voltage: 230 V or 400 V
