Product overview

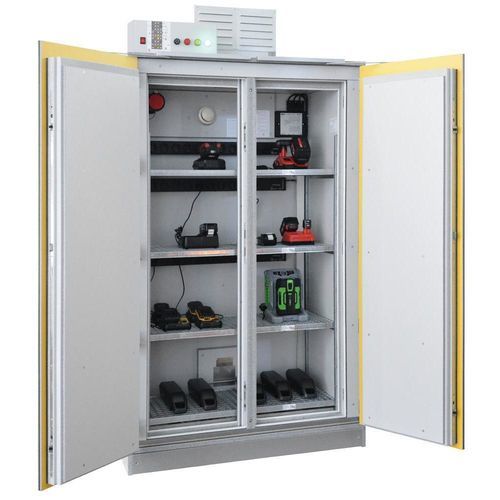

The SiS Li-Ion 90 Safe Pro battery cabinet by LaCont is a professional solution for active and passive storage and optional charging of lithium‑ion rechargeable batteries. GS‑certified (MPA Dresden) and validated in a live fire test, the cabinet offers 90 minutes fire resistance, smoke‑tight construction, permanent self‑closing doors and integrated visual and audible status indicators to protect stored batteries and personnel.

Key features

• Pro model for professional storage and optional charging of lithium‑ion batteries with GS certification (audit standard EK5 / AK4 22-01) and live fire test performed on a battery‑equipped cabinet at MPA Dresden
• External and internal fire resistance: 90 minutes (DIN EN 14470-1 / DIN EN 1363-2)
• Tested smoke‑tightness and perimeter foaming seals that expand under heat
• Permanent self‑closing doors, long‑term functionality tested to DIN EN 16121 / DIN EN 16122
• Integrated mechanical ventilation to prevent heat build‑up during charging (automatically shut off in case of fire)
• Visual and audible indicators and automatic full power shutdown in an emergency
• Optional active fire suppression (integrated aerosol extinguisher available) and control unit with smoke detection and potential‑free contact for external signalling
• Base clearance 100 mm for pallet truck/forklift access and removable plinth panel; integrated 5 L floor pan to contain leaks (AwSV)

Technical specifications

• Model: SiS Li-Ion 90 Safe Pro
• Fire resistance: 90 minutes (EN 14470-1 external / EN 1363-2 internal)
• Certification: GS (MPA Dresden), audited to EK5 / AK4 22-01
• Recommended maximum charge energy: Max. 12 kWh (standard batteries)
• Charging configuration: 0 / 2 / 4 charging points; max power per cabinet: 3.5 kW (230 V) or 10.5 kW (400 V)
• Integrated mechanical ventilation: yes (shuts off on fire)
• Control unit: standard (visual & audible indicators, smoke detection, potential‑free contact)
• Self‑closing doors: permanent; surge protection: yes
• Number of grating floors: 4; load capacity per level: 75 kg
• Base clearance: 100 mm; floor pan: 5 L

Facilities / Product features (additional details)

• Optional integrated aerosol extinguishing generator that activates automatically on critical temperature rise or fire
• Optional power strip per grating level (10 earthed sockets) for organised charging
• Height‑adjustable mesh shelving per grating level (75 kg load capacity)
• Cable preparation for fire alarm sensor and building fire alarm connection; pre‑installed cable for customer fire alarm
• Optional GSM module for remote monitoring and alarm notification
• Transportable by pallet truck or forklift due to 100 mm plinth clearance; removable plinth panel without tools
