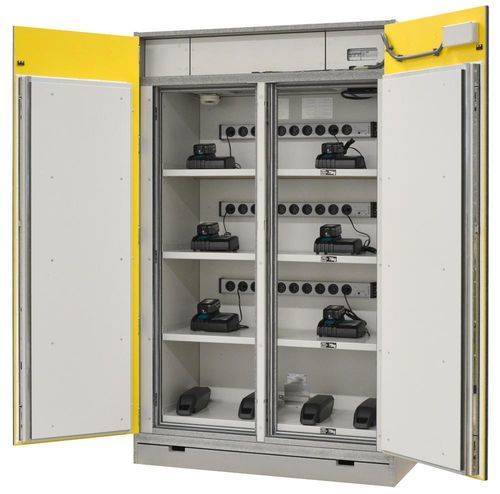

Floor-mounted electric cabinet B80-8024-A

free-standingaluminumsteel

Overview
The SiS Li-Ion Premium I/O 90 cabinet from LaCont is designed for safe active and passive storage and optional charging of lithium‑ion batteries. Engineered and tested according to VDMA 24994, it resists internal thermal runaway, provides certified external fire protection (O 90, >90 minutes) and prevents escape of flames, projectiles and fragments. Integrated pressure relief, mechanical ventilation and an electronic control unit enhance operational safety.

Key features

• Designed and tested for storage and charging of lithium‑ion batteries (VDMA 24994)
• Internal thermal runaway protection (VDMA 24994)
• External fire resistance: > 90 minutes (O 90)
• Prevents release of flames, projectiles and shrapnel in case of cell failure
• Max tested energy per cabinet: 8.0 kWh (raw cells)
• Constructed from non‑combustible materials; body RAL aluminium colour, doors RAL 1023 (traffic yellow)
• Perimeter fire‑protection seals that foam on exposure to fire
• Double‑leaf door with central mullion; lockable with profile cylinder (locking systems compatible)
• Audible reminder alarm after 60 seconds if doors remain open
• Technical (mechanical) ventilation to prevent internal heat build‑up
• Base with 100 mm clearance for pallet truck/forklift; removable plinth panel
• Height‑adjustable powder‑coated steel shelves — 4 standard; 75 kg load per shelf
• Floor tray compliant with AwSV, powder‑coated steel, 5 L capacity
• Optional: power strips (up to 3 levels) with 10 earthed sockets each (max 3.5 kW per strip)
• Standard control unit with visual and audible indicators, smoke detection and fire detection
• Complete power disconnection in emergency; surge protection included
• Optional active fire suppression (aerosol extinguishing) and optional GSM remote monitoring module

Product control & alarms

• Integrated control unit with optical status indicator (normal, fault, alarm)
• Highly sensitive internal smoke detector triggers visual and audible alarm
• On fire detection, power supply and integrated ventilation are shut down completely
• Potential‑free contact for alarm transmission and alarm differentiation
• Cable preparation for retrofitting a fire alarm sensor and connection to building fire alarm systems

Additional functions & usability

• Each shelf can accept a power strip (10 sockets) — max. 3.5 kW per strip
• Maximum total charging power per 400 V cabinet: 10.5 kW
• Operating voltage: 400 V (3‑phase); standard fuse protection 3 x 16 A
• Adjustable shelving layout for different battery sizes and load requirements
• Removable plinth panel allows access with pallet truck or forklift for relocation

Technical specifications
Fire resistance class — I/O 90
Internal fire resistance — Thermal runaway (VDMA 24994)
External fire resistance — > 90 minutes (VDMA 24994)
Test standard — VDMA 24994
Certification — ECB•S (VDMA)
Maximum charge energy — 8.0 kWh tested (raw cells)
Number of charging points — 0 / 3 (optional)
Maximum charging power per cabinet — 10.5 kW
Integrated pressure relief — yes
Integrated mechanical ventilation — yes
Self-closing doors — no
Control unit — standard
Smoke detectors / Fire detection — standard
Shutdown in emergency — full power disconnection
Active fire suppression — optional (aerosol generator)
Voltage-free interface — yes (alarm differentiation)
Pre-fitted cable for customer fire alarm — yes
Locking system — door handle with profile cylinder (compatible with locking systems)
Number of steel shelves (powder-coated) — 4
Load capacity per shelf — 75 kg
Underfloor clearance for vehicle access — yes (100 mm)
Floor tray capacity — 5 litres (AwSV compliant)
Surge protection — yes
Supply voltage — 400 V
