Lithium-ion battery cabinet B80-8012-A

storagechargingfire safety

Overview

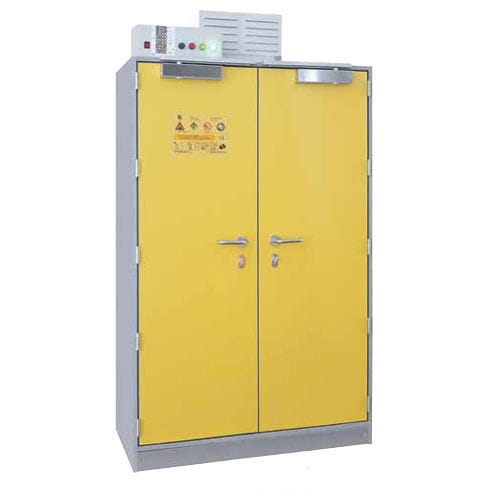

The SiS Li‑Ion 90 Safe Pro battery cabinet from LaCont is a GS‑certified professional solution for safe storage and optional charging of lithium‑ion rechargeable batteries. It is engineered to limit fire and smoke spread, protect personnel and property, and provide signal interfaces for emergency response.

Key features

• Pro model with GS certification (MPA Dresden) according to EK5 / AK4 22‑01 and real‑fire testing with battery‑fitted cabinet
• Tested fire resistance: 90 minutes external (DIN EN 14470‑1) and 90 minutes internal (DIN EN 1363‑2)
• Smoke‑tight design and perimeter seals that foam up under fire
• Permanent self‑closing doors, long‑term functionality tested (DIN EN 16121 / 16122)
• Constructed from non‑combustible materials; body typically RAL aluminium, doors RAL 1023 (traffic yellow)
• Visual and audible status indicators and alarms; potential‑free contact for external signalling
• Complete shutdown of cabinet power supply and ventilation in an emergency
• Integrated mechanical ventilation as standard to avoid heat build‑up during charging; ventilation shuts off on fire detection
• Optional integrated active fire suppression (aerosol extinguishing generator)
• Optional internal charging: configurations 0 / 2 / 4 charging points; grating levels can be fitted with power strips (10 earthed sockets)
• Base with 100 mm clearance for pallet truck/forklift access; removable plinth panel
• Integrated floor tray compliant with AwSV (powder‑coated sheet steel, capacity 5 litres) to capture liquids
• Surge protection included; control unit with power switch, smoke detection and status indicators

Optional / Additional equipment

• Integrated aerosol fire‑extinguishing generator (automatic activation on critical temperature rise or fire)
• GSM module for remote monitoring and alarm notification
• Pre‑installed cable and cable preparation for connection to customer fire alarm systems

Product information (concise)
The Safe Pro cabinet is manufactured in Germany and offers certified industrial fire protection to protect stored goods from external fires, limit internal incidents, reduce risks from toxic or explosive gases released by cells, and notify personnel and emergency services via visual, audible and potential‑free signals.

Technical specifications (table)
Fire resistance class: 90 minutes
Internal fire resistance: 90 minutes (EN 1363‑2)
External fire resistance: 90 minutes (EN 14470‑1)
Basis for audit: EK5 / AK4 22‑01
Certification: GS certificate (MPA Dresden)
Maximum recommended stored/charged energy: max. 12 kWh (standard batteries only)
Can be charged in the cabinet: optional
Number of charging points: 0 / 2 / 4
Maximum charging power per cabinet: 3.5 kW (230 V) / 10.5 kW (400 V)
Integrated mechanical ventilation: yes (standard); ventilation shuts off on fire
Self‑closing doors: yes (permanent)
Control unit: standard (power switch, status indicator, smoke/fire detection, potential‑free contact)
Floor pan capacity: 5 litres (AwSV compliant)
Base clearance for handling equipment: 100 mm
Surge protection: yes

Technical characteristics

• Model: SiS Li‑Ion 90 Safe Pro
• Fire resistance (outside‑in): 90 minutes (DIN EN 14470‑1)
• Internal fire resistance (inside‑out): 90 minutes (DIN EN 1363‑2)
• Certification: GS (MPA Dresden) audited per EK5 / AK4 22‑01
• Maximum recommended energy: up to 12 kWh (standard batteries)
• Charging options: configurable (0 / 2 / 4)
• Max. charging power: 3.5 kW (230 V single‑phase) or up to 10.5 kW (400 V three‑phase)
• Integrated systems: control unit, smoke detection, mechanical ventilation, audible/visual alarms, full power shutdown on alarm
• Optional systems: aerosol extinguishing generator, GSM remote monitoring
• Transportability: 100 mm plinth for pallet truck/forklift access; removable plinth panel
• Containment: integrated floor tray (5 L) in compliance with AwSV
