Control electric cabinet B80-8009-A

floor-mountedfree-standingindustrial

Overview

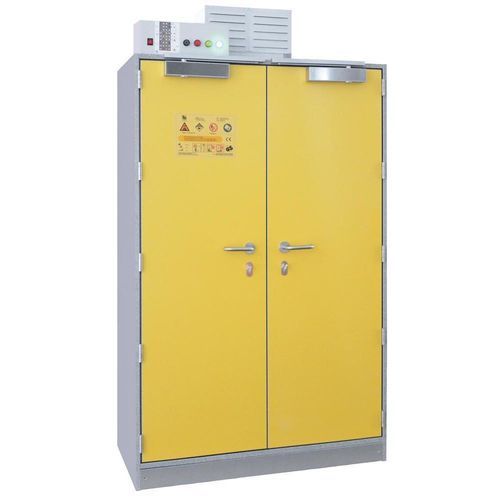

The SiS Li‑Ion 90 Safe Pro cabinet by LaCont is a GS‑certified solution for active and passive storage of lithium‑ion batteries, designed to combine 90‑minute fire protection with monitored charging options. Certified to audit standard EK5 / AK4 22‑01 and successfully passed a live‑fire test, the cabinet integrates mechanical ventilation, smoke detection, visual/audible alarms and full power shutdown in emergencies. Optional active extinguishing and remote alarm modules are available to meet site requirements.

Main features

• Pro model for active and passive storage with GS certification (audit EK5 / AK4 22‑01) and live‑fire test passed.
• 90 minutes fire resistance (external: DIN EN 14470‑1; internal: DIN EN 1363‑2).
• Smoke‑tight construction and perimeter seals that foam on heat exposure.
• Permanent self‑closing double doors with long‑term function tests (DIN EN 16121 / EN 16122).
• Constructed from non‑combustible materials with protective coating; doors available in high‑visibility colour.
• Integrated mechanical ventilation for heat control during normal charging; ventilation automatically shuts off on fire.
• Visual and audible status indicators, smoke detectors and full power supply shutdown on emergency.
• Control unit with potential‑free contact for external signalling and prewired connection for customer fire alarm.
• Optional aerosol extinguishing generator (auto‑activation on critical temperature) and active fire suppression systems.
• Base with 100 mm clearance (forklift/pallet truck access) and removable plinth panel.
• Integrated floor drip tray (5 L) compliant with AwSV for containment of fluids from cell damage.
• Surge protection included; supply voltage 230 V or 400 V.

Product information / Facilities
Model designation: SiS Li‑Ion 90 Safe Pro
Fire resistance class: 90 minutes (internal EN 1363‑2 / external EN 14470‑1)
Certification: GS (MPA Dresden), audit basis EK5 / AK4 22‑01
Maximum recommended charge energy: 12 kWh (standard batteries)
Charging points: configurable 0 / 2 / 4
Max charging power per cabinet: 3.5 kW (230 V) / 10.5 kW (400 V)
Integrated mechanical ventilation: yes (automatic shut‑off on fire)
Self‑closing doors: permanent, lockable with profile cylinder
Shelving: 4 grating floors, height‑adjustable, 75 kg per level
Base clearance: 100 mm, removable plinth panel
Floor pan / drip tray: 5 L (AwSV compliant)
Surge protection: included
Control and detection: standard control unit, smoke detectors, visual & audible indicators, potential‑free contact

Control unit and electrical / monitoring features

• Control unit with power switch, visual status indicator (normal / fault / alarm) and smoke detection.
• On fire/smoke detection the system triggers visual and audible alarms and immediately cuts power and ventilation to the cabinet.
• Potential‑free contact for external signal transmission (e.g. to a control centre) and cable preparation for customer fire alarm connection.
• Optional GSM module for remote monitoring and alarm notification.
• Power strip option: each grating level can be fitted with a power strip (10 earthed sockets per strip); versions without power strips available (230 V).
• 230 V single‑phase (16 A) with sockets: max total 3.5 kW (max 2 kW per power strip).
• 400 V three‑phase (3 x 16 A): up to 10.5 kW (max 3.5 kW per power strip; observe distribution rules).

Optional equipment

• Integrated aerosol extinguishing generator (automatic activation on critical temperature rise).
• Active fire suppression systems (water mist / gas systems as configured).
• GSM module for remote alarm messaging and monitoring.

Protection objectives

• Protect stored batteries from external fire exposure.
• Prevent spread of smoke and fire from internal events to surrounding areas.
• Minimise risk to personnel from release of explosive or toxic gases.
• Provide clear signalling of critical conditions and interfaces to site fire‑protection systems.

Caractéristiques / Spécifications techniques

• Model: SiS Li‑Ion 90 Safe Pro
• Fire resistance: 90 min external (DIN EN 14470‑1) / 90 min internal (DIN EN 1363‑2)
• Certification: GS (MPA Dresden), audit EK5 / AK4 22‑01
• Recommended max charge energy: 12 kWh (standard batteries)
• Charging points: configurable 0 / 2 / 4
• Max charging power per cabinet: 3.5 kW (230 V) / 10.5 kW (400 V)
• Ventilation: integrated mechanical, automatic shut‑off on fire
• Doors: double‑leaf, permanent self‑closing, lockable (profile cylinder)
• Shelving: 4 grating floors, adjustable, 75 kg per level
• Floor pan: integrated drip tray 5 L (AwSV compliant)
• Base plinth: 100 mm clearance, removable panel (forklift/pallet truck access)
• Surge protection: included
• Control/detection: standard control unit, smoke detectors, visual & audible indicators, potential‑free contact
• Optional: aerosol extinguisher, active suppression, GSM module
