Floor-mounted electric cabinet B80-8002-A

free-standingindustrialfor electrical equipment

Product overview

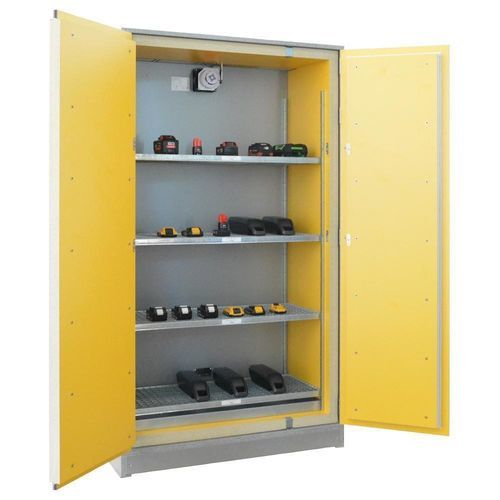

The LaCont SiS Li-Ion Basic battery cabinet is an entry-level industrial solution for passive storage and optional active charging of lithium-ion batteries. Designed primarily for fire safety, the cabinet provides certified EI90 protection for both interior and exterior exposures and integrates features to limit propagation of thermal runaway and contain leaked fluids.

Key features

• Certified complete structure with 90-minute fire resistance rating inside and outside (EI90, tested to EN 1363-1).
• Constructed from non-combustible building materials (Class A2 – s1, d0 per EN 13501-1). Body in aluminium colour; doors in RAL 1023 (traffic yellow).
• Perimeter intumescent seals that foam automatically in case of fire.
• Lockable swing-lever doors with double-bit cylinder.
• Integrated mechanical ventilation with smoke detection and fan; ventilation automatically shuts off on smoke detection (standard).
• Fire‑resistant cable entries top and bottom for retrofitting detection/alarm systems.
• Smooth‑operating doors with 180° opening angle (non-self-closing).
• Base with 100 mm clearance for forklift/pallet truck access and removable base panel.
• Height-adjustable grating shelves; load capacity 75 kg per shelf; standard configuration includes 4 grating floors.

Options & integrated equipment

• Basic Store: passive storage variant with ventilation and smoke detection; no integrated power strips or control unit.
• Basic Charge: active charging variant fitted with power strips (up to 10 sockets / total up to 3.5 kW) and an optional control unit with visual status indicator.
• Optional aerosol fire‑extinguishing generator that activates automatically on critical temperature rise or fire.
• Optional active fire suppression system with power‑independent activation on fire/over‑temperature.
• Integrated floor pan (17 litres) to contain leaked liquids in case of cell damage and built‑in surge protection.
• Control unit with smoke detection and potential‑free contact for building management system integration.

Technical summary (table)
Fire resistance class: EI90
Internal fire resistance: 90 min (EN 1363-1)
External fire resistance: 90 min (EN 1363-1)
Test standard: DIN EN 1363-1:2012-10
Certification: Report by MPA Dresden
Maximum recommended charge energy: max. 8 kWh (for standard rechargeable batteries)
Charging in cabinet: optional
Number of charging points: 0 / 2 / 4
Maximum charging power per cabinet: 3.5 kW
Integrated pressure relief: –
Integrated mechanical ventilation: yes (standard)
Self-closing doors: no
Control unit: optional
Smoke detection: standard
Fan shutdown on fire: standard
Visual/audible status indicators: optical optional
Emergency shutdown: ventilation only
Active fire suppression: optional
Potential-free interface: yes
Cable entry possible: yes
Floor pan capacity: 17 litres
Number of grating floors: 4
Load capacity per floor: 75 kg
Base clearance for vehicle underpass: 100 mm
Surge protection: yes
Supply voltage: 230 V

Characteristics / technical specifications

• Model family: SiS Li-Ion Basic (LaCont)
• Fire resistance: EI90 (interior & exterior), tested to EN 1363-1
• Certification: MPA Dresden report
• Recommended maximum stored energy: up to 8 kWh
• Charging options: 0 / 2 / 4 power strips, max. 3.5 kW per cabinet
• Ventilation: integrated mechanical ventilation with smoke detector; automatic fan shutoff on smoke
• Optional equipment: control unit, aerosol extinguisher, active suppression
• Construction: non-combustible material Class A2 – s1, d0; body aluminium colour; doors RAL 1023
• Storage: height-adjustable grating floors, 75 kg per floor
• Floor pan: 17 litres capacity
• Underfloor clearance: 100 mm for pallet truck/forklift access
• Electrical: supply 230 V; surge protection; potential-free contact for alarm relay
