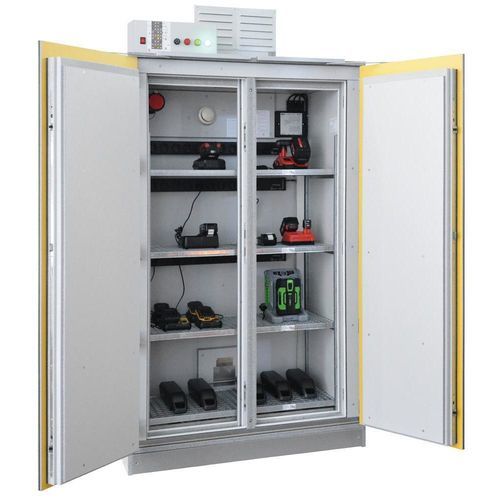

Floor-mounted electric cabinet B80-8008-A

free-standingindustrialfor electrical equipment

Product overview: The Safe Pro battery cabinet from LaCont is a GS-certified Pro model for active and passive storage and optional in-cabinet charging of lithium-ion batteries. It provides certified 90-minute fire resistance (inside-out and outside-in) per EN 1363-2 and EN 14470-1, passed a live-fire test at MPA Dresden, and includes permanent self-closing doors, visual and audible status indicators and a control unit for automatic shutdown in emergencies.

Key features:

• GS-certified Pro model (audit standard EK5 / AK4 22-01) with passed live-fire test at MPA Dresden
• 90 minutes external fire resistance (EN 14470-1) and 90 minutes internal fire resistance (EN 1363-2)
• Tested smoke-tightness and perimeter fire-protection seals that foam automatically
• Permanent self-closing doors tested for long-term function
• Constructed from non-combustible materials with protective coating

Product features and options:

• Maximum recommended charge energy: 12 kWh (standard batteries)
• Optional in-cabinet charging; configurable charging points: 0 / 2 / 4
• Maximum charging power: 3.5 kW at 230 V or 10.5 kW at 400 V
• Integrated mechanical ventilation (standard) with automatic shut-off on fire
• Optional integrated aerosol fire-extinguishing generator
• Power strips available per grating level (10 earthed sockets each)
• Base with 100 mm clearance for pallet truck or forklift; removable plinth panel; included 5 L floor drip tray

Control unit and detection:

• Standard control unit with visual and audible status indicators (normal, fault, alarm)
• Smoke and fire detection included; on detection ventilation and power are switched off and alarm triggers
• Full power disconnection in emergency; potential-free contact for external signalling
• Cable preparation for customer fire alarm sensor; optional GSM module for remote monitoring

Construction, storage levels and handling:

• Double-leaf door with central mullion, lockable with profile cylinder
• Height-adjustable grating shelving; 4 grating floors standard; load capacity 75 kg per floor
• No steel shelves by default (grating used); surge protection included

Protection objectives:

• Protect stored batteries from external fire
• Prevent smoke and fire propagation if fire originates inside the cabinet
• Reduce risk from explosive or toxic gases released from batteries
• Signal critical internal conditions for personnel and emergency responders and interface with fire protection systems

Technical specifications:

• Fire resistance class: 90 minutes
• Internal fire resistance: 90 minutes (EN 1363-2)
• External fire resistance: 90 minutes (EN 14470-1)
• Audit basis: EK5 / AK4 22-01; GS certificate (MPA Dresden)
• Max recommended charge energy: 12 kWh
• Charging points: 0 / 2 / 4; max charging power per cabinet: 3.5 kW at 230 V, 10.5 kW at 400 V
• Integrated mechanical ventilation; permanent self-closing doors; smoke and fire detection as standard
• Optional aerosol suppression; potential-free interface; pre-installed cable for customer alarm
• Number of grating floors: 4; floor load: 75 kg; base clearance: 100 mm; floor pan: 5 L
