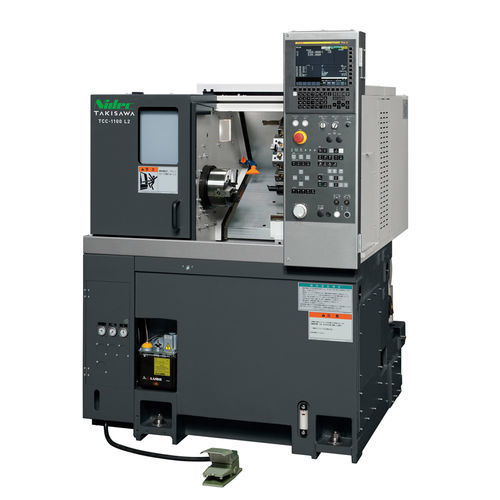

CNC lathe TCC-1100

horizontal12 tools8 tools

The TCC-1100 is a compact 6-inch chuck CNC lathe designed to deliver high productivity and high machining quality at low cost, ideal for small parts such as flanges and shafts. It emphasizes high speed, high accuracy and a minimized footprint to reduce thermal distortion and improve machining performance.

Key features

• Increased rapid traverse rate compared with previous models to reduce machining time.
• Tank bed structure with a large-capacity coolant tank.
• Minimized thermal distortion for improved machining accuracy.
• All slideways use highly rigid, highly accurate rectangular slides.
• Turret options: direct-mount 8-station turret (standard) or 12-station direct-mount turret (option) capable of heavy-duty cutting.
• Hydraulic tailstock available (optional).

Flexible layout

• Machine Width: 1200 mm
• Required Floor Space: 1.6 m²

TCC-1100G (compact automation option)

• Additional width to main body: only 710 mm added (main body 1170 mm).
• Loader target workpiece: outside diameter φ100 mm, length 60 mm, weight 0.7 kg.
• Work piece feeder (pallet type): Number of pallets: 14; Loading capacity per pallet: 25 kg; Work stacking height: 450 mm.

Specifications / Technical data

• Model: TCC-1100
• Chuck Size: 6 inch
• Type of Turret: 8-Station Turret (Direct-Mount Type) or 12-Station Turret (Direct-Mount Type)
• Max. Turning Diameter: φ220 mm / φ170 mm (depending on configuration)
• Max. Turning Length: 171 mm
• Bar Capacity: φ42 mm (varies with chuck and cylinder types)
• Spindle Speed: 4000 min⁻¹ (options: 5000, 6000)
• Rapid Traverse Rate: X: 24 m/min, Z: 30 m/min
• Spindle Motor (15, 30 min/continuous): 5.5/3.7 kW (option: 7.5/5.5)
• Machine Height: 1700 mm
• Required Floor Space (footprint): 1200 × 1370 mm
• Machine Weight: 1860 kg
• Note: Bar capacity depends on the type of chuck and cylinder.
