CNC lathe TCN-2100V.EDITION
rigid12 tools8 tools

CNC lathe - TCN-2100V.EDITION - TAKISAWA - rigid / 12 tools / 8 tools
CNC lathe - TCN-2100V.EDITION - TAKISAWA - rigid / 12 tools / 8 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Structure
rigid
Number of tool stations
12 tools, 8 tools
Applications
for bar machining, for long workpieces
Performance
high-precision, high-rigidity
Diameter

340 mm, 410 mm
(13.39 in, 16.14 in)

Spindle speed

3,200 rpm
(20,106.193 rad.min-1)

Maximum part length

300 mm, 600 mm
(12 in, 24 in)

Maximum cutting diameter

Max.: 410 mm
(16 in)

Min.: 340 mm
(13 in)

Bar capacity

51 mm
(2 in)

Rapids on X

24 m/min

Rapids on Z

30 m/min

Nominal power

7.5 kW, 11 kW
(10.2 hp, 15 hp)

Overall lenght

1,750 mm, 2,095 mm
(69 in, 82 in)

Overall width

1,532 mm
(60 in)

Overall height

1,700 mm
(67 in)

Weight

2,700 kg, 3,200 kg
(5,952 lb, 7,055 lb)

Description

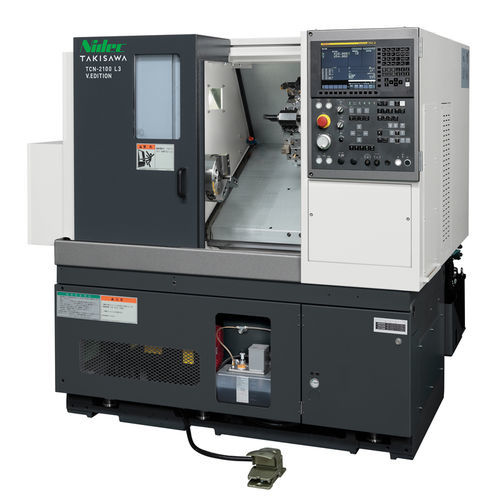

The TCN-2100 V.EDITION is a V.EDITION CNC lathe that retains high turning performance while providing only the minimum required functions for excellent cost performance.

Key features
  • All slideways use highly rigid and highly accurate rectangular slides.
  • Continuous rated torque improved versus previous models by optimizing the spindle motor and reduction ratio.
  • Two turret configurations available: 8-station (standard) and 12-station (option), direct-mount type.
  • Supports a highly rigid hydraulic tailstock (optional) to enhance long-work turning stability.


Machine main specifications
  • Models: TCN-2100 L3 V.EDITION; TCN-2100 L6 V.EDITION
  • Chuck size (inch): L3 = 8; L6 = 8
  • Type of turret: 8-Station Turret (Direct-Mount) or 12-Station Turret (Direct-Mount) — both available for L3 and L6
  • Max. turning diameter (mm): L3 = φ410 (with one turret configuration) / φ340 (alternative turret); L6 = φ410*2 / φ340*2
  • Max. turning length (mm): L3 = 300; L6 = 600
  • Bar capacity (mm): L3 = φ51; L6 = φ51
  • Spindle speed (min⁻¹): L3 = 3200; L6 = 3200
  • Rapid traverse rate (m/min): X = 24 / Z = 30 (both L3 and L6)
  • Spindle motor (15 min / continuous) (kW): L3 = 11 / 7.5; L6 = 11 / 7.5
  • Machine height (mm): L3 = 1700; L6 = 1700
  • Required floor space (mm): L3 = 1750 × 1532; L6 = 2095 × 1532
  • Machine weight (kg): L3 = 2700; L6 = 3200


Notes
  • Bar capacity may vary depending on chuck and cylinder combinations.
  • For L6, maximum turning diameter may be limited by work size; refer to "The Limit of the Turning Range" in the catalog.
