CNC lathe TCN-3500
horizontal12 tools10 tools

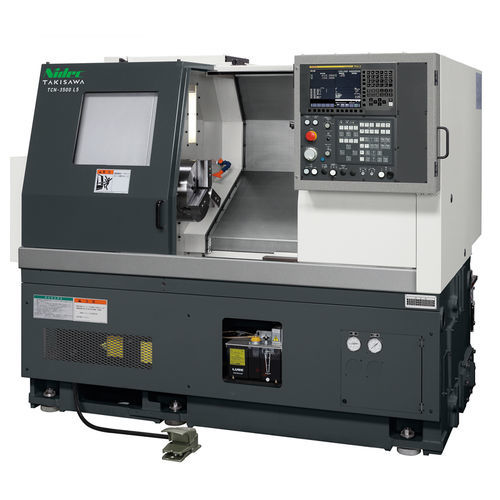

CNC lathe - TCN-3500 - TAKISAWA - horizontal / 12 tools / 10 tools
CNC lathe - TCN-3500 - TAKISAWA - horizontal / 12 tools / 10 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of tool stations
12 tools, 8 tools, 10 tools
Performance
high-rigidity
Other characteristics
compact
Associated function
milling
Diameter

370 mm, 430 mm, 460 mm
(14.57 in, 16.93 in, 18.11 in)

Spindle speed

2,500 rpm, 3,000 rpm
(15,707.963 rad.min-1, 18,849.556 rad.min-1)

Maximum part length

465 mm, 485 mm, 510 mm, 985 mm, 1,010 mm
(18 in, 19 in, 20 in, 39 in, 40 in)

Bar capacity

80 mm, 108 mm
(3 in, 4 in)

Rapids on X

16 m/min

Rapids on Z

24 m/min

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Overall lenght

2,000 mm, 3,450 mm
(79 in, 136 in)

Overall width

1,768 mm, 1,833 mm
(70 in, 72 in)

Overall height

1,802 mm
(71 in)

Weight

4,000 kg, 4,100 kg, 5,000 kg, 5,100 kg
(8,818 lb, 9,039 lb, 11,023 lb, 11,244 lb)

Description

TCN-3500 is a high-rigidity CNC lathe compatible with 12″/10″ chucks, designed as a standard machine to meet diverse production requirements including turning, milling and automation (gantry loader compatible). The optimized machine configuration provides a compact, space-saving footprint and all axes use square-slide high-durability sliding surfaces.

Main features
  • Standard compact configuration adapted to shop-floor production conditions.
  • Square-slide high-durability sliding surfaces on all axes for sustained precision and rigidity.
  • Tool turret options: turning turret 8/10/12 stations (T8/T10/T12); milling turret selectable as 12 stations (T12M).
  • Energy-efficient design.


Variants (representative specifications)
  • TCN-3500 L5 (turning): chuck 12″/10″, max turning diameter Φ430–Φ460, max turning length 485–510 mm, bar capacity Φ80 (opt. Φ108), spindle speed 2,500 min⁻¹ (opt. 3,000), rapid feed X:16 / Z:24 m/min, spindle motor 15/11 kW, machine height 1,802 mm, footprint 2,000×1,768 mm, weight ≈4,000 kg.
  • TCN-3500 L10 (turning): chuck 12″/10″, max turning diameter Φ460, max turning length 985–1,010 mm, bar capacity Φ80 (opt. Φ108), spindle speed 2,500 min⁻¹ (opt. 3,000), rapid feed X:16 / Z:24 m/min, spindle motor 15/11 kW, machine height 1,802 mm, footprint 3,450×1,833 mm, weight ≈5,000 kg.
  • TCN-3500 CM (turning + milling) L5 / L10: chuck 12″/10″, max turning diameter Φ370, max turning length L5:465 mm / L10:965 mm, bar capacity Φ80 (opt. Φ108), spindle speed 2,500 min⁻¹ (opt. 3,000), tool-spindle speed up to 3,600 min⁻¹ (model dependent), spindle motor 15/11 kW, tool-spindle motor 3.7/11 kW (varies by model), machine height 1,802 mm, footprint L5 2,000×1,768 mm / L10 3,450×1,833 mm, weight ≈4,100–5,100 kg.
  • TCN-3500 G (gantry automation): gantry-loader compatible; example workpiece Ø Φ200 mm, length 140 mm, workpiece weight 10 kg (×2) assumed. Example feeder (pallet) configuration: pallets 10, load per pallet 70 kg, step height 400 mm.


Technical specifications
  • Model: TCN-3500 (multiple configurations: L5 / L10 / CM / CM-L5・L10 / G)
  • Chuck compatibility: 12″, 10″
  • Max turning diameter: Φ370–Φ460 (varies by configuration)
  • Max turning length: ≈485–1,010 mm (varies by model)
  • Bar capacity: standard Φ80 (optional Φ108)
  • Spindle speed: 2,500 min⁻¹ (optional 3,000 min⁻¹)
  • Max rapid feed: X:16 m/min, Z:24 m/min
  • Spindle motor (30 min/cont): 15/11 kW (representative)
  • Tool-spindle motor (milling models): example 3.7/11 kW (varies)
  • Tool turret: turning turret 8/10/12 stations, milling turret 12 stations (T12M)
  • Machine height (typical): 1,802 mm
  • Footprint (typical): 2,000×1,768 mm or 3,450×1,833 mm
  • Machine weight (typical): ≈4,000–5,100 kg
  • Gantry loader example: work Ø Φ200 mm, length 140 mm, pallets up to 10, load per pallet 70 kg
  • Software: TiwaP-1 (optional) for program creation, simulation, operation assessment, spindle control and C-axis origin fine adjustment
