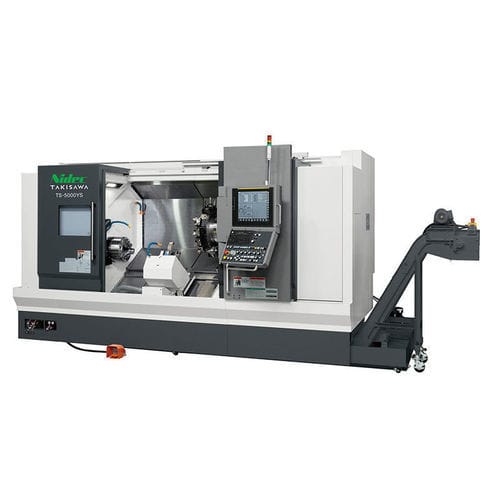

CNC lathe TS-5000
horizontal2-spindleA2-11

CNC lathe - TS-5000 - TAKISAWA - horizontal / 2-spindle / A2-11
CNC lathe - TS-5000 - TAKISAWA - horizontal / 2-spindle / A2-11
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of spindles
2-spindle
Spindle mount
A2-11
Number of tool stations
12 tools, 10 tools, 15 tools, 20 tools
Applications
for bar machining, for mass production
Diameter

292 mm, 315 mm, 370 mm
(11.5 in, 12.4 in, 14.57 in)

Spindle speed

2,500 rpm, 4,200 rpm, 5,000 rpm, 6,000 rpm
(15,707.963 rad.min-1, 26,389.378 rad.min-1, 31,415.927 rad.min-1, 37,699.112 rad.min-1)

Maximum part length

1,285 mm, 1,300 mm
(51 in, 51 in)

Bar capacity

82 mm, 102 mm
(3 in, 4 in)

Rapids on X

30 m/min

Rapids on Z

30 m/min

Nominal power

7.5 kW, 11 kW, 15 kW, 22 kW
(10.2 hp, 15 hp, 20.4 hp, 29.9 hp)

Overall lenght

4,105 mm
(162 in)

Overall width

2,255 mm
(89 in)

Overall height

2,300 mm
(91 in)

Weight

8,700 kg
(19,180 lb)

Description

Overview
  • The TS-5000 is a process-integration combined machining CNC lathe engineered for flexible handling of variable-kind and variable-lot workpieces. Right and left twin spindles allow completion of front and rear machining in a single setup. Product pages note that options are included.


Key features
  • Multi-spindle capability and multiple turret configurations to suit varied turning applications.
  • Twin spindles on TS-5000YS; TS-5000Y provides tailstock (NC servo) instead of a right spindle.
  • Interchangeable turret options: 12-station (all-holder, standard), 10-station, 15-station, 20-station (all-holder type).
  • Bar capacity and chuck/cylinder combinations configurable via options.


Variants
  • TS-5000YS (standard): right spindle present; chuck 12+8 inch; A-axis rapid traverse 30 m/min.
  • TS-5000Y: no right spindle; NC servo tailstock present; chuck 12 inch; A-axis rapid traverse 13 m/min.


Technical specifications
  • Model: TS-5000 (variants TS-5000YS, TS-5000Y)
  • Variants: TS-5000YS, TS-5000Y
  • Right spindle stock: TS-5000YS: present (standard); TS-5000Y: none
  • Tailstock (NC Servo Type): TS-5000YS: none; TS-5000Y: present
  • Chuck size (inch): TS-5000YS: 12+8; TS-5000Y: 12
  • Turret type (options): 12-station (all-holder, standard), 10-station (all-holder), 15-station (all-holder), 20-station (all-holder)
  • Max. turning diameter (mm): 12-/10-Station: φ370; 15-Station: φ315; 20-Station: φ292
  • Max. turning length (mm): 12-/10-Station: 1300; 15-Station: 1285; 20-Station: 1300
  • Bar capacity (mm): φ102 [Optional φ82] (depends on chuck and cylinder types)
  • Left spindle speed (min⁻¹): 2500 [Option 4200]
  • Right spindle speed (min⁻¹): TS-5000YS: 5000 [Option 6000]; TS-5000Y: none
  • Rotary tool speed (min⁻¹): 6000
  • Rapid traverse rate (m/min): X: 30 / Z: 30 / Y: 10 / A: TS-5000YS: 30 ; TS-5000Y: 13
  • Left spindle motor (30 min/continuous): 22 / 15 kW
  • Right spindle motor (30 min/continuous): TS-5000YS: 11 / 7.5 kW; TS-5000Y: none
  • Rotary tool motor (S3 25% / continuous): 7.5 / 3.7 kW
  • Machine height: 2300 mm
  • Required floor space: 4105 × 2255 mm (without oilpan and chip conveyor)
  • Machine weight: TS-5000YS: 8700 kg; TS-5000Y: 8500 kg
  • Notes: "•" = Standard; "-" = None.


Options & notes
  • Product imagery and text indicate included options; configurable elements (chucks, cylinders, turrets) affect bar capacity and some dimensions.
  • Required floor space shown excludes oilpan and chip conveyor.


Recommended applications
  • Mixed-part production where front/rear machining in one setup reduces handling and setup time.
  • Bar work and multi-process turning requiring flexible turret configurations and subspindle capability.
