CNC lathe TT-2100H series
horizontal2-axis2-spindle

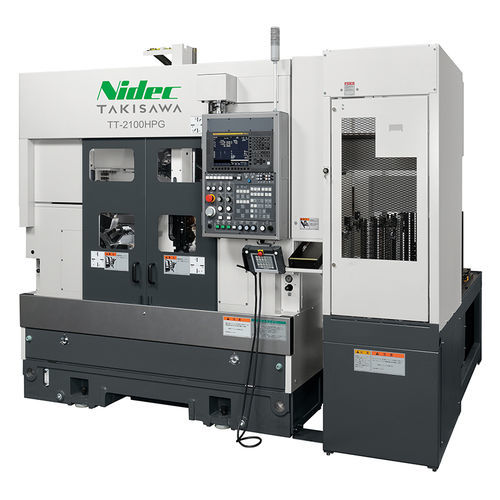

CNC lathe - TT-2100H series - TAKISAWA - horizontal / 2-axis / 2-spindle
CNC lathe - TT-2100H series - TAKISAWA - horizontal / 2-axis / 2-spindle
CNC lathe - TT-2100H series - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 2
CNC lathe - TT-2100H series - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Number of spindles
2-spindle
Number of tool stations
12 tools, 10 tools
Applications
for small parts production, for production
Performance
high-precision, high-speed, high-productivity
Other characteristics
multi-function
Associated function
milling
Options and accessories
automated loading/unloading
Diameter

240 mm
(9.45 in)

Spindle speed

3,200 rpm, 4,500 rpm, 6,000 rpm
(20,106.193 rad.min-1, 28,274.334 rad.min-1, 37,699.112 rad.min-1)

Maximum part length

94 mm, 136 mm
(4 in, 5 in)

Maximum cutting diameter

240 mm
(9 in)

Rapids on X

30 m/min

Rapids on Z

30 m/min

Nominal power

5.5 kW, 7.5 kW, 11 kW
(7.5 hp, 10.2 hp, 15 hp)

Overall lenght

2,825 mm
(111 in)

Overall width

2,615 mm
(103 in)

Overall height

2,700 mm
(106 in)

Weight

5,200 kg
(11,464 lb)

Description

Overview

  • The TT-2100HG and TT-2100HPG are high-precision parallel twin-spindle CNC lathes designed for reduced cycle times and improved accuracy. Available in turning-only and turning+milling configurations with selectable loader specifications to match production needs.


Key highlights

  • High-precision development of the TT-2100G series with increased rapid traverse speed via linear-guide specification.
  • Patented high-precision direct measuring system (glass scale) on the X-axis minimizes thermal displacement and stabilizes one-shot good quality.
  • Selectable loader specification supporting small to medium workpieces (various options by set).
  • Two-spindle layout with standard transfer turnover unit enables simultaneous front and back machining, improving space and process efficiency versus two single-spindle lathes with a reversing device.


Features

  • Linear guides on X/Z axes (high-speed) provide high follow-up performance in micro movement and micro taper machining and increase X/Z feed rate by about 25% up to 30 m/min; turret axis swivels during movement to reduce cycle time.
  • High Precision Direct Measuring System: glass scale on the X-axis improves long-term machining accuracy by about 70%.
  • Tank-bed structure minimizes thermal displacement throughout the day.
  • Two headstock spindle specifications (6" and 8" chuck) combined with FANUC high-performance spindle motors.
  • 10-station turret (T10) standard; 12-station turret (T12) and 10-station milling turret (T10M) optional to enable multiple processes.
  • ENERGY SAVING SYSTEM and oil–water separator extend coolant life and reduce power consumption.
  • Operator-oriented software and dedicated buttons simplify setup and process/measurement management to reduce non-cutting time.


Multimedia

  • Product video: "Talk About \"TT-2100HP\"" (YouTube).


Technical specifications

  • Models: TT-2100HG / TT-2100HPG (turning), TT-2100HCMG / TT-2100HPCMG (turning & milling).
  • Chuck size (inch): 6+6 and 8+8.
  • Max. turning diameter: Ø240 mm.
  • Max. turning length: 6+6 = 135.5 mm; 8+8 = 94 mm.
  • Spindle speed (min⁻¹): 6+6 = 4500 (option 6000); 8+8 = 3200 (option 4500).
  • Rapid traverse rate: X: 30 m/min / Z: 30 m/min.
  • Spindle motor (15 min/continuous): 6+6 = 7.5 / 5.5 kW (option 11 / 7.5 kW); 8+8 = 11 / 7.5 kW.
  • Rotary tool speed (turning & milling models): 2500 min⁻¹.
  • Rotary tool motor (15 min/continuous): 5.5 / 3.7 kW.
  • Machine height: 2700 mm.
  • Required floor space: 2825 × 2615 mm.
  • Machine weight: turning models ~5200 kg; turning & milling models ~5400 kg.
  • Loader target workpiece (per pallet/set): for 6+6 chuck — OD Ø80 mm (option Ø160), length 80 mm, weight 0.7 kg ×2 (option 3.0 kg ×2); for 8+8 chuck — OD Ø160 mm (option Ø80), length 80 mm, weight 3.0 kg ×2 (option 0.7 kg ×2).
  • Workpiece feeder specifications: number of pallets = 16; loading capacity per pallet = 40 kg; stacking height = 450 mm.
  • Transfer turnover unit: standard (enables simultaneous front and back machining).
  • Linear guide (X/Z): increases feed rate by ~25% (to 30 m/min) and improves micro-movement follow-up.
  • High Precision Direct Measuring System: glass scale on X-axis improves long-term machining accuracy by about 70%.
