CNC lathe TCN-2100
horizontal12 tools8 tools

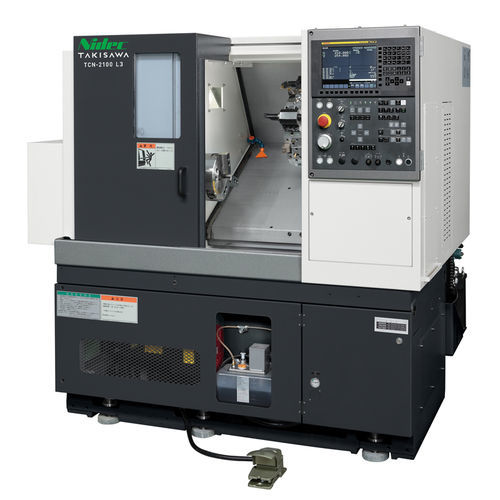

CNC lathe - TCN-2100 - TAKISAWA - horizontal / 12 tools / 8 tools
CNC lathe - TCN-2100 - TAKISAWA - horizontal / 12 tools / 8 tools
CNC lathe - TCN-2100 - TAKISAWA - horizontal / 12 tools / 8 tools - image - 2
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of tool stations
12 tools, 8 tools
Applications
for bar machining, for production, for mass production
Performance
high-precision
Associated function
milling
Options and accessories
automated loading/unloading, with integrated bar feeder
Diameter

340 mm, 410 mm
(13.39 in, 16.14 in)

Spindle speed

3,200 rpm, 5,000 rpm
(20,106.193 rad.min-1, 31,415.927 rad.min-1)

Maximum part length

300 mm, 600 mm
(12 in, 24 in)

Bar capacity

51 mm
(2 in)

Rapids on X

24 m/min

Rapids on Z

30 m/s
(98 ft/s)

Nominal power

9 kW, 11 kW
(12.2 hp, 15 hp)

Overall lenght

1,750 mm, 1,810 mm, 2,095 mm, 2,277 mm
(69 in, 71 in, 82 in, 90 in)

Overall width

1,532 mm
(60 in)

Overall height

1,700 mm
(67 in)

Weight

2,700 kg, 3,300 kg
(5,952 lb, 7,275 lb)

Description

Overview
TCN-2100 is an 8-inch CNC lathe designed for high cutting capability and flexible production workflows. It is offered in turning (TCN-2100), turning-and-milling (TCN-2100CM) and automation-ready (TCN-2100G) variants to suit bar feeding, loader or mixed machining operations.

Key features
  • All slideways employ highly rigid, high-accuracy rectangular slides for precise motion control.
  • Spindle motor and reduction ratio revised to increase continuous rated torque for improved cutting performance.
  • Available turret options: 8-station direct-mount, 12-station direct-mount, and 12-station rotary tool type for milling functions.
  • Optional high-rigidity hydraulic tailstock for supporting long or heavy workpieces.


Machine main specifications (Turning)
  • TCN-2100 (Turning) — variants
    • Models: TCN-2100 L3 and TCN-2100 L6.
    • Chuck size: 8 inch.
    • Turret types (options): 8-station (direct-mount) and 12-station (direct-mount).
    • Max. turning diameter (mm): L3 — Φ410 (8-station) / Φ340 (12-station); L6 — Φ410* / Φ340*.
    • Max. turning length (mm): L3 — 300; L6 — 600.
    • Bar capacity: Φ51 mm (depends on chuck/cylinder type).
    • Spindle speed (min-1): 3200 (option 5000).
    • Rapid traverse rate (m/min): X: 24 / Z: 30.
    • Spindle motor (30 min / continuous) (kW): 11 / 9.
    • Machine height: 1700 mm.
    • Required floor space (mm): L3 — 1750 × 1532; L6 — 2095 × 1532.
    • Machine weight (kg): L3 — 2700; L6 — 3200.


Turning & Milling (TCN-2100CM)
  • TCN-2100CM — variants
    • Chuck size: 8 inch.
    • Turret: rotary tool type — 12-station (turning & milling configuration).
    • Max. turning diameter: Φ280 mm.
    • Max. turning length (mm): L3 — 208; L6 — 508.
    • Bar capacity: Φ51 mm.
    • Spindle speed (min-1): 3200 (option 5000).
    • Rotary tool speed (min-1): 6000.
    • Rotary tool motor (15 min / continuous) (kW): 5.5 / 3.7.
    • Rapid traverse rate (m/min): X: 24 / Z: 30.
    • Spindle motor (kW): 11 / 9.
    • Machine height: 1700 mm.
    • Required floor space (mm): L3 — 1810 × 1532; L6 — 2277 × 1532.
    • Machine weight (kg): L3 — 2800; L6 — 3300.


Automation variant — TCN-2100G (Loader / Feeder)
  • Loader target workpiece
    • Outside diameter: Φ160 mm.
    • Length: 100 mm.
    • Weight: 3 kg (×2).
  • Work piece feeder specifications
    • Number of pallets: 16.
    • Loading capacity (per pallet): 40 kg.
    • Work stacking height: 450 mm.


Takisawa original software
  • TiwaP-1 (optional): interactive programming system for creating, simulating and executing machining programs without requiring G-code knowledge. Features include 3D simulation, tool-path checking and optimized spindle/C-axis control sequencing to reduce operator workload.


Technical specifications (summary)
  • Model family: TCN-2100 (also available as TCN-2100CM and TCN-2100G).
  • Standard chuck: 8".
  • Turret configurations: 8-station, 12-station direct-mount; 12-station rotary tool for milling (CM).
  • Bar capacity: Φ51 mm (depends on chuck/cylinder).
  • Spindle standard speed: 3200 min-1 (option 5000).
  • Tool spindle speed (CM): 6000 min-1.
  • Rapid traverse: X 24 m/min, Z 30 m/min.
  • Spindle motor power (30 min / continuous): 11 / 9 kW.
  • Optional items: hydraulic tailstock, automation loader, TiwaP-1 programming software.
