CNC lathe TT-2600Ⅱ series
horizontal2-axis2-spindle

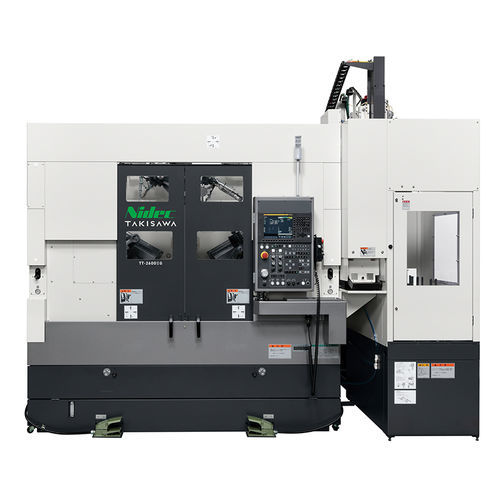

CNC lathe - TT-2600Ⅱ series - TAKISAWA - horizontal / 2-axis / 2-spindle
CNC lathe - TT-2600Ⅱ series - TAKISAWA - horizontal / 2-axis / 2-spindle
CNC lathe - TT-2600Ⅱ series - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 2
CNC lathe - TT-2600Ⅱ series - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Number of spindles
2-spindle
Number of tool stations
12 tools
Applications
for automotive applications, for mass production
Performance
high-precision, high-rigidity, high-productivity
Associated function
milling
Options and accessories
automated loading/unloading
Diameter

290 mm, 340 mm
(11.42 in, 13.39 in)

Spindle speed

2,500 rpm, 3,000 rpm, 4,000 rpm
(15,707.963 rad.min-1, 18,849.556 rad.min-1, 25,132.741 rad.min-1)

Part diameter

Max.: 240 mm
(9 in)

Min.: 160 mm
(6 in)

Maximum cutting diameter

Max.: 340 mm
(13 in)

Min.: 290 mm
(11 in)

Maximum cutting length

Max.: 214 mm
(8 in)

Min.: 166 mm
(7 in)

Rapids on X

24 m/min

Rapids on Z

24 m/min

Nominal power

7.5 kW, 11 kW, 15 kW
(10.2 hp, 15 hp, 20.4 hp)

Overall lenght

3,227 mm, 3,412 mm, 3,725 mm
(127 in, 134 in, 147 in)

Overall width

2,938 mm
(116 in)

Overall height

3,751 mm, 3,840 mm, 4,130 mm
(148 in, 151 in, 163 in)

Weight

6,300 kg, 6,400 kg, 6,500 kg
(13,889 lb, 14,110 lb, 14,330 lb)

Description

Overview

  • The TT-2600ⅡG/TT-2600ⅡWG are twin-spindle CNC lathes for high-accuracy mass production of automotive components, available in turning and optional turning+milling configurations with selectable loader options.
  • Available chuck specifications: 8", 10" and 12"; rigid box-type bed and wide square slideways on X/Z axes for thermal stability and sustained accuracy.


Key Features

  • Box/tank-type bed design to minimize thermal displacement during continuous operation.
  • Wide rectangular (square) slideways on X and Z axes for long-term high-accuracy machining.
  • Headstock supports high-accuracy spindles with 8", 10" and 12" chuck options; integrated with FANUC high-performance spindle motors.
  • Standard 12-station turret (T12) with optional 12-station milling turret (T12M) for milling-capable configurations.
  • Standard transfer turnover unit enabling simultaneous front/back machining for compact dual-spindle operation.
  • Energy saving system and oil-water separator to reduce power consumption and extend coolant life.
  • Operator-friendly controls and dedicated keys for process and measurement management to reduce non-productive time.


Machine Main Specifications (Turning)

  • Chuck Size (inch): 8+8 / 10+10 / 12+12
  • Type of Turret: 12-Station Turret (All-Holder Type)
  • Max. Turning Diameter (mm): Ø290 (8/10" specs) / Ø340 (12" spec)
  • Max. Turning Length (mm): 214 (8+8) / 204 (10+10) / 184 [OP. 166] (12+12)
  • Spindle Speed (min-1): 4000 (8+8) / 3200 [OP. 2500] (10+10) / 2500 (12+12)
  • Rapid Traverse Rate (m/min): X: 24 / Z: 24
  • Spindle Motor (kW): typical examples 11/7.5 [OP. 15/11] (8+8); 15/11 [OP. 18.5/15] (10+10); 15/11 (12+12)
  • Machine Height (mm): 3751 (8+8) / 3840 (10+10) / 4130 (12+12)
  • Required Floor Space (mm): 3227×2938 (8+8) / 3412×2938 (10+10) / 3725×2938 (12+12)
  • Machine Weight (kg): 6300 (8+8) / 6400 (10+10) / 6500 (12+12)


Turning & Milling Specifications (when configured for milling)

  • Chuck Size (inch): 8+8 / 10+10 / 12+12
  • Type of Turret: 12-Station Turret (All-Holder Type) with optional milling turret (T12M)
  • Max. Turning Diameter (mm): Ø290 (8/10" specs) / Ø340 (12" spec)
  • Max. Turning Length (mm): 214 / 204 / 184 [OP. 166]
  • Spindle Speed (min-1): 4000 / 3200 [OP.2500] / 2500
  • Rotary Tool Speed (min-1) (milling versions): 4000 (where applicable)
  • Rotary Tool Motor (kW) (S3 25%/15 min/continuous): 5.5 / 5.5 / 3.7 (example values for milling turret configurations)
  • Rapid Traverse Rate (m/min): X: 24 / Z: 24


Loader Target Workpiece

  • Chuck Size 8+8: Outside Diameter Ø160 mm, Length 100 mm, Weight 4 kg (×2)
  • Chuck Size 10+10: Outside Diameter Ø200 mm, Length 120 mm, Weight 8 kg (×2)
  • Chuck Size 12+12: Outside Diameter Ø240 mm, Length 110 mm [Option: 100], Weight 8 kg (×2)


Work Piece Feeder Specifications

  • Number of Pallets: 16 (8+8) / 14 (10+10) / 14 (12+12)
  • Loading Capacity per Pallet (kg): 40 (8+8) / 70 (10+10) / 70 (12+12)
  • Work Stacking Height (mm): 450 (8+8) / 400 (10+10) / 400 (12+12)


Product Features / Technical Specifications

  • Brand: Takisawa Machine Tool Co., Ltd.
  • Model variants: TT-2600ⅡG and TT-2600ⅡWG (turning); TT-2600ⅡCMG / TT-2600ⅡWCMG for turning & milling combinations
  • Product type: Twin-spindle CNC lathe for high-accuracy, mass-production automotive components
  • Bed: Highly rigid box/tank-type bed resistant to thermal displacement
  • Slideways: Square/wide rectangular slideways on X/Z axes for long-term accuracy
  • Standard turret: 12-station (T12); optional 12-station milling turret (T12M)
  • Applicable chuck sizes: 8", 10", 12"
