CNC lathe TCY-200Ⅱ
12 toolsfor small workpiecescompact

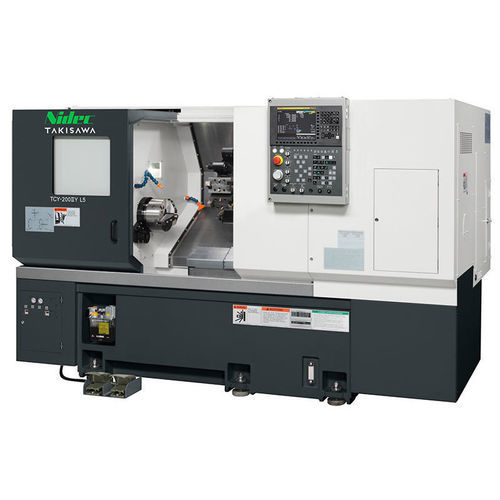

CNC lathe - TCY-200Ⅱ - TAKISAWA - 12 tools / for small workpieces / compact
CNC lathe - TCY-200Ⅱ - TAKISAWA - 12 tools / for small workpieces / compact
CNC lathe - TCY-200Ⅱ - TAKISAWA - 12 tools / for small workpieces / compact - image - 2
CNC lathe - TCY-200Ⅱ - TAKISAWA - 12 tools / for small workpieces / compact - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of tool stations
12 tools
Applications
for small workpieces
Other characteristics
compact, Y-axis
Associated function
milling
Diameter

220 mm, 250 mm
(8.66 in, 9.84 in)

Spindle speed

4,000 rpm, 6,000 rpm
(25,132.741 rad.min-1, 37,699.112 rad.min-1)

Maximum part length

254 mm, 271 mm, 454 mm, 471 mm
(10 in, 11 in, 18 in, 19 in)

Bar capacity

51 mm
(2 in)

Rapids on X

20 m/min

Rapids on Z

24 m/min

Nominal power

2.2 kW, 3.7 kW, 5.5 kW, 7.5 kW, 11 kW
(3 hp, 5 hp, 7.5 hp, 10.2 hp, 15 hp)

Overall lenght

2,310 mm, 2,500 mm, 2,860 mm
(91 in, 98 in, 113 in)

Overall width

1,695 mm, 1,795 mm
(67 in, 71 in)

Overall height

1,700 mm
(67 in)

Weight

3,500 kg, 4,100 kg
(7,716 lb, 9,039 lb)

Description

Overview

  • Compact combined machining lathe integrating turning, rotating-tool cutting and milling with Y-axis control for small workpieces.


Key features
  • Compact combined machining for small workpieces, enabling integrated turning and rotating-tool cutting processes.
  • Milling capability and Y-axis control for improved process integration and machining of complex features.
  • 12-station drum turret, all-holder type, for flexible multi-tool setups.
  • Left and (where applicable) right spindles, rotary-tool spindle and high rapid traverse rates to support efficient cycle times.


Options & automation
  • Available loader and automation packages for continuous unmanned operation (optional).
  • Optional interactive programming software (TiwaP-1) for program creation, 3D simulation and toolpath verification without deep G-code knowledge.
  • Optional bar feeders and material handling systems to enable automated bar supply and integration with loaders.


Applications
  • Integrated turning + milling processes for small, complex parts in high-mix or high-volume production (automotive components, connectors, precision mechanical parts).


Technical specifications
  • Commercial models: TCY-200Ⅱ (variants: TCY-200ⅡYS / TCY-200ⅡY)
  • Machine type: Compact combined machining lathe with milling and Y-axis
  • Turret: 12-station drum turret, all-holder type
  • Max. turning diameter: Ø220 mm (Ø250 mm for BMT45 type)
  • Max. turning length: L3: 254 mm [271 mm] ; L5: 454 mm [471 mm]
  • Chuck size (inch): TCY-200ⅡYS: 8+6 ; TCY-200ⅡY: 8
  • Bar capacity (left spindle): Ø51 mm (depends on chuck/cylinder types)
  • Bar capacity (right spindle): TCY-200ⅡYS: Ø42 mm ; TCY-200ⅡY: -
  • Left spindle speed (min⁻¹): 4000 [option 6000]
  • Right spindle speed (min⁻¹): 4000 [option 6000] (where fitted)
  • Rotary tool speed (min⁻¹): 6000
  • Rapid traverse rate: X 20 m/min ; Z 24 m/min ; Y 10 m/min
  • Left spindle motor (15 min / continuous): 11 / 7.5 kW
  • Right spindle motor (15 min / continuous): 5.5 / 3.7 kW (where applicable)
  • Rotary tool motor (5 min / 15 min / continuous): 3.7 / 2.2 / 1.5 kW
  • Machine height: 1700 mm
  • Required floor space: L3: 2500 × 1695 mm ; L5: 2860 × 1795 mm (other note: L3: 2310 × 1695 mm *)
  • Machine weight: L3: 3500 kg ; L5: 4100 kg
  • Loader target workpiece (3 kg type): Outside diameter Ø160 mm ; Length L3: 50 mm / L5: 100 mm ; Weight 3 kg
  • Work piece feeder (3 kg type): Number of pallets 16 ; Loading capacity per pallet 40 kg ; Stacking height 450 mm
  • Notes: • = Standard ◦ = Optional - = None ; [ ] indicates BMT45 type where specified
