CNC lathe TC-40
horizontal12 tools10 tools

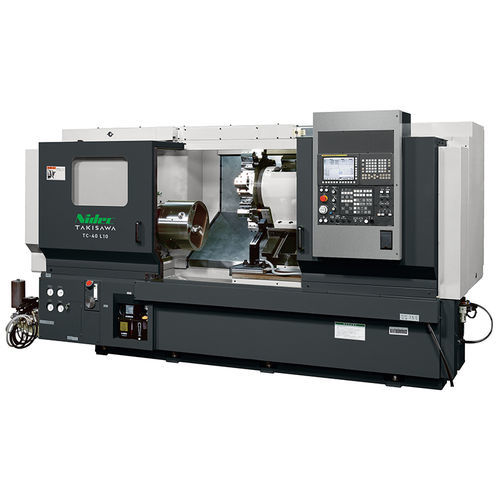

CNC lathe - TC-40 - TAKISAWA - horizontal / 12 tools / 10 tools
CNC lathe - TC-40 - TAKISAWA - horizontal / 12 tools / 10 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of tool stations
12 tools, 8 tools, 10 tools
Performance
high-precision, high-rigidity, high-productivity
Associated function
milling
Diameter

420 mm, 450 mm
(16.54 in, 17.72 in)

Spindle speed

2,500 rpm
(15,707.963 rad.min-1)

Maximum part length

1,020 mm
(40 in)

Bar capacity

89 mm
(4 in)

Rapids on X

12 m/min

Rapids on Z

16 m/min

Nominal power

15 kW, 18.5 kW, 22 kW, 26 kW
(20.4 hp, 25.2 hp, 29.9 hp, 35.4 hp)

Overall lenght

2,100 mm, 2,331 mm
(83 in, 92 in)

Overall width

3,500 mm, 4,940 mm, 6,265 mm
(138 in, 194 in, 247 in)

Overall height

1,920 mm, 2,190 mm
(76 in, 86 in)

Weight

Max.: 10,700 kg
(23,589 lb)

Min.: 7,500 kg
(16,535 lb)

Description

Overview
  • The TC-40 is a flagship model of the TC-Series lathes, equipped with a spindle compatible with 12 in and 15 in chucks. It supports conventional turning and turning+ milling (CM) configurations.
  • Full-square slide bed & saddle construction with a high-rigidity turret and tailstock provide stability for a wide range of machining tasks.


Main features
  • Spindle suited for 12 in and 15 in chucks with high precision and high output
  • Robust full-square slide bed and saddle structure
  • High-rigidity turret toolpost (options: 8/10/12 station depending on specification)
  • High-rigidity tailstock with strong support capacity


Variants — selected specifications
  • TC-40 L10
    • Chuck size: 12 in (specified in the data sheet)
    • Max turning diameter: Ø450 / Ø420 mm (depending on configuration)
    • Max turning length: 1020 mm
    • Bar capacity (turning): Ø89 mm
    • Spindle speed: 2500 min-1
    • Rapid feed: X: 12 / Z: 16 m/min
    • Spindle motor (30 min/continuous): 18.5 / 15 kW (options: 22/18.5, 26/22)
    • Machine height: 1920 mm
    • Required floor area: 2100 × 3500 mm
    • Machine weight: 7500 kg
  • TC-40 L20
    • Chuck size: 12 in
    • Max turning diameter: Ø450 / Ø420 mm
    • Max turning length: 2020 mm
    • Bar capacity (turning): Ø89 mm
    • Spindle speed: 2500 min-1
    • Rapid feed: X: 12 / Z: 16 m/min
    • Spindle motor (30 min/continuous): 18.5 / 15 kW (options: 22/18.5, 26/22)
    • Machine height: 2190 mm
    • Required floor area: 2331 × 4940 mm
    • Machine weight: 9000 kg
  • TC-40 L30
    • Chuck size: 12 in
    • Max turning diameter: Ø450 / Ø420 mm
    • Max turning length: 3020 mm
    • Bar capacity (turning): Ø89 mm
    • Spindle speed: 2500 min-1
    • Rapid feed: X: 12 / Z: 16 m/min
    • Spindle motor (30 min/continuous): 18.5 / 15 kW (options: 22/18.5, 26/22)
    • Machine height: 2190 mm
    • Required floor area: 2331 × 6265 mm
    • Machine weight: 10700 kg
  • TC-40CM L10 (turning + milling)
    • Chuck size: 12 in
    • Max turning diameter: Ø420 mm
    • Max turning length: 2020 mm
    • Bar capacity (turning): Ø89 mm
    • Spindle speed: 2500 min-1
    • Rotary tool speed: 3000 min-1
    • Rapid feed: X: 12 / Z: 16 m/min
    • Spindle motor (30 min/continuous): 18.5 / 15 kW (options: 22/18.5, 26/22)
    • Rotary tool motor (30 min/continuous): 5.5 / 3.7 kW
    • Machine height: 2190 mm
    • Required floor area: 2331 × 4940 mm
    • Machine weight: 9000 kg
  • TC-40CM L20 / L30 (turning + milling)
    • The TC-40CM series expands maximum turning length, floor space and machine weight according to L10/L20/L30 configurations
    • Spindle speed: 2500 min-1; Rapid feed: X: 12 / Z: 16 m/min
    • Spindle and rotary tool motor options are selectable per model


Technical specifications
  • Series: TC-Series (this page: TC-40)
  • Application: Turning (and turning + milling for CM types)
  • Main structure: Full-square slide bed & saddle
  • Tooling: High-rigidity turret (8/10/12 stations depending on specification)
  • Tailstock: High-rigidity design
  • Spindle output and optional high-output spindles available depending on specification
  • Control & software integration: Compatible with external program creation/simulation solutions (optional), e.g. TiwaP-1
