CNC lathe TCN-2600
12 tools10 tools8 tools

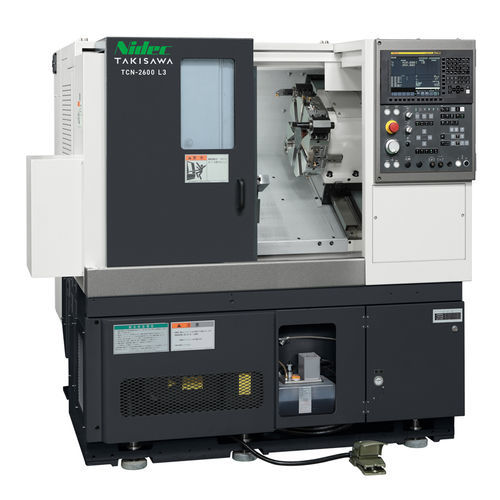

CNC lathe - TCN-2600 - TAKISAWA - 12 tools / 10 tools / 8 tools
CNC lathe - TCN-2600 - TAKISAWA - 12 tools / 10 tools / 8 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of tool stations
12 tools, 8 tools, 10 tools
Associated function
milling
Diameter

280 mm, 410 mm
(11.02 in, 16.14 in)

Spindle speed

2,500 rpm, 3,200 rpm
(15,707.963 rad.min-1, 20,106.193 rad.min-1)

Maximum part length

158 mm, 250 mm, 458 mm, 550 mm
(6 in, 10 in, 18 in, 22 in)

Bar capacity

74 mm, 90 mm
(3 in, 4 in)

Nominal power

9 kW, 11 kW
(12.2 hp, 15 hp)

Overall lenght

1,750 mm, 1,810 mm, 2,095 mm, 2,277 mm
(69 in, 71 in, 82 in, 90 in)

Overall width

1,543 mm
(61 in)

Overall height

1,700 mm
(67 in)

Weight

2,700 kg, 2,800 kg, 3,200 kg, 3,300 kg
(5,952 lb, 6,173 lb, 7,055 lb, 7,275 lb)

Description

The TCN-2600 is a 10-inch CNC lathe by Takisawa engineered for high cutting capability and versatile production. Available in L-series (pure turning) and CM-series (turning plus milling) configurations, with optional automation-ready TCN-2600G systems.

Key features
  • All slideways use highly rigid rectangular slides for durability and positional accuracy.
  • Wide-range spindle motor and revised reduction ratio deliver improved continuous torque across low to high speeds.
  • Two turret families: L-series 8-station direct-mount turret (standard); CM-series 12-station rotary-tool turret for milling variants.
  • Optional highly rigid hydraulic tailstock for supported turning operations.


Automation (TCN-2600G)
  • Designed for integration with a high-speed gantry loader for compact automated turning cells.
  • Loader target workpiece: outside diameter Φ200 mm, length 140 mm, weight 5 kg (×2).
  • Work feeder: 14 pallets, loading capacity per pallet 70 kg, stacking height 400 mm.


Software
TiwaP-1 (optional): an interactive programming system supporting program creation, 3D simulation and execution to reduce operator workload. Provides dialog-style input without requiring G-code expertise, 3D animation/tool-path simulation for program verification, and automatic recognition of spindle/process order for optimized execution.

Technical specifications
  • Model variants: TCN-2600 L3, TCN-2600 L6, TCN-2600CM L3, TCN-2600CM L6.
  • Chuck size: 10 inch (all variants).
  • Turret type: L-series — 8-station direct-mount; CM-series — 12-station rotary-tool type.
  • Max turning diameter: L-series Φ410 mm (L6: subject to work-size limitations); CM-series Φ280 mm.
  • Max turning length: TCN-2600 L3 = 250 mm, L6 = 550 mm; TCN-2600CM L3 = 158 mm, CM L6 = 458 mm.
  • Bar capacity: Φ74 mm (OP. Φ90) per chuck/cylinder type.
  • Spindle speed: 3200 min-1 (OP. 2500) for all variants.
  • Rotary tool speed: CM variants 6000 min-1; not applicable to L-series.
  • Rapid traverse rate: X: 24 m/min, Z: 30 m/min.
  • Spindle motor (30 min/continuous): 11/9 kW (all variants).
  • Rotary tool motor (15 min/continuous): CM variants 5.5/3.7 kW; not applicable to L-series.
  • Machine height: 1700 mm.
  • Required floor space (W×D): L3 = 1750×1543 mm, L6 = 2095×1543 mm, CM L3 = 1810×1543 mm, CM L6 = 2277×1543 mm.
  • Machine weight: L3 = 2700 kg, L6 = 3200 kg, CM L3 = 2800 kg, CM L6 = 3300 kg.
  • Manufacturer/brand: Takisawa.
