NC lathe TF-2600
vertical8 toolsfor shaft machining

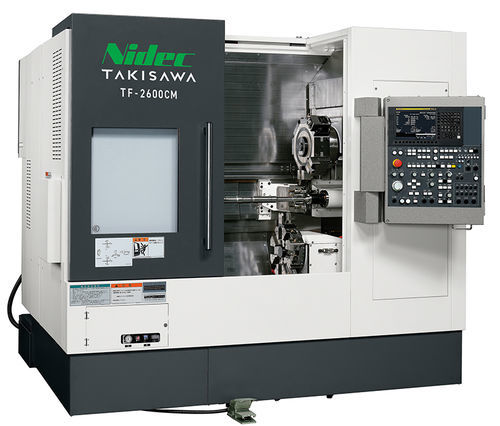

NC lathe - TF-2600 - TAKISAWA - vertical / 8 tools / for shaft machining
NC lathe - TF-2600 - TAKISAWA - vertical / 8 tools / for shaft machining
Add to favorites
Compare this product

Characteristics

Control type
NC
Spindle orientation
vertical
Number of tool stations
8 tools
Applications
for shaft machining
Performance
high-rigidity
Associated function
milling
Diameter

260 mm
(10.24 in)

Spindle speed

2,500 rpm, 3,000 rpm, 3,200 rpm, 5,000 rpm
(15,707.963 rad.min-1, 18,849.556 rad.min-1, 20,106.193 rad.min-1, 31,415.927 rad.min-1)

Part diameter

Max.: 70 mm
(3 in)

Min.: 70 mm
(3 in)

Maximum part length

650 mm, 750 mm
(26 in, 30 in)

Maximum cutting diameter

260 mm
(10 in)

Rapids on X

20 m/min

Rapids on Z

30 m/min

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Overall lenght

2,400 mm
(94 in)

Overall width

2,080 mm
(82 in)

Overall height

2,150 mm
(85 in)

Weight

6,100 kg
(13,448 lb)

Description

Overview

The Takisawa TF-2600 is a high-rigidity shaft machining center designed to shorten cutting time for flange and shaft machining while maintaining efficient chip evacuation and stable machining conditions.

Key features
  • Powerful wide-range spindle motor (10" specification)
  • Highly rigid rectangular slideways
  • Vertical bed construction for improved chip flow and rigidity


Additional functional units
  • NC servo tailstock — Travel: 580 mm; Quill taper hole: 8" spec: MT.4, 10" spec: MT.5
  • NC servo steady rest (option) — Travel: 720 mm


Main specifications (Turning)
  • Chuck size (inch): 8 / 8 / 10 (variants)
  • Type of turret: 6-station turret (direct-mount) / 8-station turret (direct-mount)
  • Max. turning diameter: Ø260 mm
  • Max. turning length: 750 mm (some variants) / 650 mm (other variants)
  • Spindle speed (min⁻¹): 3200 [OP. 5000] (some variants) / 2500 [OP. 3000] (other variants)
  • Rapid traverse rate (m/min): X: 20 / Z: 30 / A: 20 / R: 30
  • Spindle motor (kW): 11/15 or 15/11 (wide-range, depending on variant)
  • Machine height: 2150 mm
  • Required floor space: 2400 × 2080 mm
  • Machine weight: 6100 kg


Main specifications (Turning & Milling)
  • Chuck size (inch): 8 / 10 (variants)
  • Type of turret: Upper: rotary-tool 8-station turret (all-holder type); Lower: 6-station turret (direct-mount) [OP. 8-station lower turret]
  • Max. turning diameter (lower): Ø260 mm
  • Max. turning length (lower): 750 mm / 650 mm
  • Spindle speed (min⁻¹): 3200 [OP. 5000] / 2500 [OP. 3000]
  • Rotary tool speed (min⁻¹): 6000
  • Rapid traverse rate (m/min): X: 20 / Z: 30 / A: 20 / R: 30
  • Spindle motor (kW): 11/15 or 15/11 (wide-range)
  • Rotary tool motor (kW): 2.2
  • Machine height: 2150 mm
  • Required floor space: 2400 × 2080 mm
  • Machine weight: 6100 kg


Loader target workpiece (Optional)
  • Chuck size (inch): 8 / 10
  • Outside diameter: Ø70 mm
  • Length: 750 / 650 mm
  • Workpiece weight: 10 kg
