CNC lathe TT-1100G

horizontal2-spindle10 tools

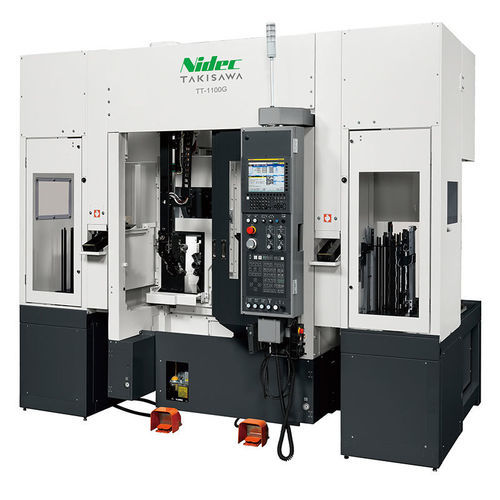

Takisawa TT-1100G parallel 2-spindle CNC lathe engineered for ultrafast loading and simultaneous front/back machining to maximize throughput.

Ultrafast loading system
The loader area is positioned in front of the machining chamber (front waiting system) to reduce loading distance. The spindle advances to the loading position and, combined with a high-speed 3-axis loader, achieves ultrahigh-speed loading performance.

Transfer / Loader
The machine is equipped with a transfer turnover unit as standard enabling simultaneous front and back machining and offering better space efficiency compared with two single-spindle lathes connected via a reversing device.

Features

• Tank bed structure minimizes thermal displacement over the working day.
• X- and Z-axis roller guides are mounted on the same column; the X-axis is arranged vertically to reduce machine width.
• Right and left turrets are identical 10-station all-holder type with powerful bolt clamping.
• Energy saving system reduces power consumption; oil-water separator extends coolant life.
• Dedicated buttons for process and measurement management; integrated right/left machine information simplifies operation.

Technical specifications

• Chuck size: 6 + 6 inch
• Type of turret: 10-station turret (all-holder type)
• Max. turning diameter: Ø140 mm
• Max. turning length: 121 mm
• Spindle speed: 4500 min⁻¹ (option: 6500)
• Rapid traverse rate: X: 24 m/min, Z: 30 m/min
• Spindle motor (15 min/continuous): 5.5 / 3.7 kW (option: 7.5 / 5.5)
• Machine height: 2450 mm
• Required floor space: 2258 × 3327 mm
• Machine weight: 5800 kg
• Loader target workpiece - outside diameter: Ø80 mm
• Loader target workpiece - length: 80 mm
• Loader target workpiece - weight: 0.7 kg × 2
• Work piece feeder - number of pallets: 14
• Work piece feeder - loading capacity (per pallet): 25 kg
• Work piece feeder - stacking height: 450 mm
