CNC lathe TT-500GD
horizontal2-axis2-spindle

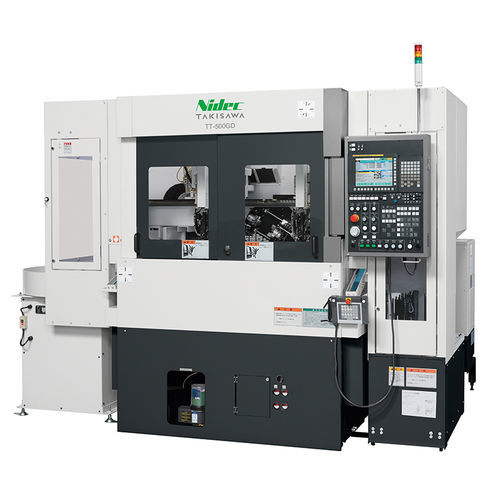

CNC lathe - TT-500GD - TAKISAWA - horizontal / 2-axis / 2-spindle
CNC lathe - TT-500GD - TAKISAWA - horizontal / 2-axis / 2-spindle
CNC lathe - TT-500GD - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 2
CNC lathe - TT-500GD - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 3
CNC lathe - TT-500GD - TAKISAWA - horizontal / 2-axis / 2-spindle - image - 4
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Number of spindles
2-spindle
Applications
for small parts production, for mass production
Performance
high-precision, high-rigidity, powerful, high-productivity
Other characteristics
compact
Options and accessories
automated loading/unloading, with gantry loader
Diameter

50 mm
(1.97 in)

Spindle speed

5,000 rpm
(31,415.927 rad.min-1)

Maximum part length

Min.: 0 mm
(0 in)

Max.: 50 mm
(2 in)

Maximum cutting diameter

Min.: 0 mm
(0 in)

Max.: 50 mm
(2 in)

Rapids on X

20 m/min

Rapids on Z

24 m/min

Nominal power

3.7 kW, 7.5 kW
(5 hp, 10.2 hp)

Overall lenght

2,560 mm
(101 in)

Overall width

2,512 mm
(99 in)

Overall height

2,145 mm
(84 in)

Weight

4,300 kg
(9,480 lb)

Description

The TT-500GD is a compact twin-spindle CNC lathe from Takisawa's TT-Series designed for high accuracy, automation and high productivity in a minimized footprint.

Overview
  • Supports 5" chuck (5+5) with a twin gantry supplied as standard for accelerated loading and short machining tact times (loading time approx. 2.5 seconds).
  • Equipped with a high-accuracy comb type tool slide (flat type) that reduces non-cutting time compared with turret types and allows up to five tools to be mounted for small parts machining.
  • High-power built-in spindle motor (7.5 kW / 3.7 kW) enabling rapid acceleration to 5000 min-1 in about 0.8 seconds (option: 8000 min-1).


Key features
  • Twin gantry optimum for workpieces with short machining tact time is equipped as standard.
  • High power 7.5 kW built-in motor accelerates/decelerates the spindle rapidly (0.8 s to 5000 min-1).
  • Comb type tool slide (flat type) allows accurate centering and mounting of five tools for Ø50 mm workpieces.
  • Integrated bed and vibration-dispersing slit structure for both high rigidity and high accuracy.
  • 560 mm wide chip conveyor for effective chip disposal and large maintenance doors for easy chip change and tip exchange.
  • Transfer turnover unit equipped as standard allowing simultaneous front and back machining (space-efficient compared with two one-spindle lathes with a reversing device).
  • Easy process and measurement management via dedicated buttons; intuitive loader teaching with guide diagrams (RAKU-RAKU Loader example screens).


Machine Main Specifications
  • Model: TT-500GD
  • Brand: Takisawa Machine Tool Co., Ltd.
  • Chuck Size (inch): 5+5
  • Type of Turret: Comb Type Tool Slide (flat type)
  • Number of Attachable Tools / Tool Slide Width: 5 Tools, 330 mm
  • Max. Turning Diameter: Ø50 mm
  • Max. Turning Length: 50 mm
  • Spindle Speed: 5000 min-1 (Option 8000)
  • Rapid Traverse Rate: X: 20 m/min / Z: 24 m/min
  • Spindle Motor (15 min / continuous): 7.5 / 3.7 kW
  • Machine Height: 2145 mm
  • Required Floor Space: 2560 × 2512 mm
  • Machine Weight: 4300 kg
  • Chip Conveyor Width: 560 mm


Loader Target Workpiece
  • Target Outside Diameter: Ø50 mm
  • Length: 50 mm
  • Weight: 0.5 kg × 2 (per stated configuration)


Work Piece Feeder Specifications
  • Number of Pallets: 12
  • Loading Capacity (Per Pallet): 4 kg
  • Work Stacking Height: 250 mm


Remarks
  • Design optimized for short machining tact times and space-efficient mass production of small parts.
