CNC lathe TK-2100
vertical8 toolshigh-precision

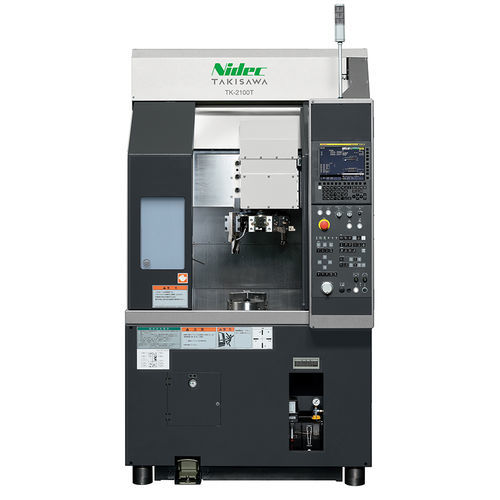

CNC lathe - TK-2100 - TAKISAWA - vertical / 8 tools / high-precision
CNC lathe - TK-2100 - TAKISAWA - vertical / 8 tools / high-precision
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of tool stations
8 tools
Performance
high-precision, high-rigidity
Other characteristics
compact
Diameter

400 mm, 600 mm
(15.75 in, 23.62 in)

Spindle speed

2,000 rpm, 2,500 rpm, 3,200 rpm
(12,566.371 rad.min-1, 15,707.963 rad.min-1, 20,106.193 rad.min-1)

Maximum cutting diameter

355 mm
(14 in)

Maximum cutting length

Max.: 400 mm
(16 in)

Min.: 310 mm
(12 in)

Rapids on X

20 m/s
(66 ft/s)

Rapids on Z

20 m/s
(66 ft/s)

Nominal power

9 kW, 11 kW, 15 kW, 18.5 kW
(12.2 hp, 15 hp, 20.4 hp, 25.2 hp)

Overall lenght

1,220 mm, 1,600 mm
(48 in, 63 in)

Overall width

1,980 mm
(78 in)

Overall height

2,200 mm
(87 in)

Weight

3,600 kg, 3,700 kg
(7,937 lb)

Description

Fully redesigned compact vertical turning lathe offering versatile configurations adaptable to different workpieces, processes and tooling/automation layouts. The modular basic structure enables selection of suitable swing diameter and turret type to match machining requirements. Rectangular slideways with high rigidity and accuracy improve machining stability and precision.

Configurations
  • Comb type tool slide
  • 6-station turret (Direct-Mount Type)
  • 8-station turret (Direct-Mount Type)


Product videos
  • TK-2100/2600 introduction video
  • Talk about TK-2100/2600


Specifications
  • Chuck size: 8 inch
  • Type of turret: Comb type tool slide; 6-Station Turret (Direct-Mount Type); 8-Station Turret (Direct-Mount Type)
  • Max. swing: 400 mm (600 mm for 600 swing variant)
  • Max. turning diameter: Comb: - ; 6-Station Turret: φ355 mm ; 8-Station Turret: φ335 mm
  • Max. turning length: Comb: 400 mm ; 6-/8-Station: 310 mm
  • Spindle speed: 3200 min-1 (options: 2000, 2500)
  • Rapid traverse rate: X: 20 m/min ; Z: 20 m/min
  • Spindle motor (30 min / continuous): 11 / 9 kW (optional: 15/11, 18.5/15)
  • Machine height: 2200 mm
  • Required floor space: 1220 × 1980 mm (1600 × 1980 mm for 600 swing)
  • Machine weight: 3600 kg (3600 / 3700 kg depending on configuration; 3700 kg for 600 swing)
