CNC lathe TCY-160II
12 toolsfor small workpieces

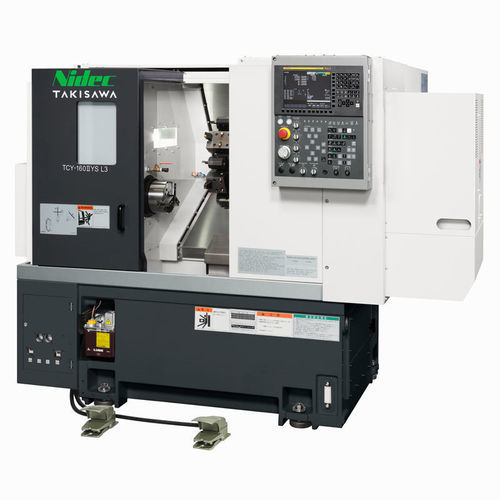

CNC lathe - TCY-160II - TAKISAWA - 12 tools / for small workpieces
CNC lathe - TCY-160II - TAKISAWA - 12 tools / for small workpieces
CNC lathe - TCY-160II - TAKISAWA - 12 tools / for small workpieces - image - 2
CNC lathe - TCY-160II - TAKISAWA - 12 tools / for small workpieces - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of tool stations
12 tools
Applications
for small workpieces
Diameter

220 mm, 250 mm
(8.66 in, 9.84 in)

Spindle speed

4,000 rpm, 6,000 rpm
(25,132.741 rad.min-1, 37,699.112 rad.min-1)

Maximum part length

291 mm, 308 mm, 491 mm, 508 mm
(11 in, 12 in, 19 in, 20 in)

Rapids on X

20 m/min

Rapids on Z

24 m/min

Nominal power

1.5 kW, 2.2 kW, 3.7 kW, 5.5 kW, 7.5 kW
(2 hp, 3 hp, 5 hp, 7.5 hp, 10.2 hp)

Overall lenght

2,210 mm, 2,400 mm, 2,760 mm, 2,860 mm
(87 in, 94 in, 109 in, 113 in)

Overall width

1,695 mm, 1,795 mm
(67 in, 71 in)

Overall height

1,700 mm
(67 in)

Weight

3,500 kg, 4,100 kg
(7,716 lb, 9,039 lb)

Description

Overview

  • Compact combined machining lathe integrating turning and rotating-tool (milling) cutting processes for small parts.
  • Y-axis with milling capability enables multi-process machining in a single setup to reduce handling and cycle time.
  • Available in two main versions: TCY-160IIYS (with right spindle, right C-axis, 6+6" chuck) and TCY-160IIY (with NC tailstock, 6" chuck).
  • 12-station drum turret (all-holder type) and left/right C-axis configurations support complex contouring and multi-op operations.


Automation and software

  • Supports Takisawa gantry loader for continuous automatic operation; bar feeder automation also available.
  • Optional interactive programming software TiwaP-1 for program creation, 3D animation/tool-path simulation and simplified operation without deep G-code knowledge.
  • Designed for integration with peripheral equipment to enable lights-out or high-mix automated production.


Loader and feeder example specifications

  • Loader target workpiece (3 kg type): Outside diameter Φ160 mm; length L3: 50 mm, L5: 100 mm; weight: 3 kg.
  • Work piece feeder (3 kg type): Number of pallets: 16; loading capacity per pallet: 40 kg; stacking height: 450 mm.


Technical specifications (key items)

  • Product versions: TCY-160IIYS, TCY-160IIY
  • Right spindle stock: Standard on TCY-160IIYS; none on TCY-160IIY
  • Tailstock (NC servo type): Standard on TCY-160IIY; none on TCY-160IIYS
  • Y-axis: Standard on both versions
  • Left C-axis: Standard on both versions; Right C-axis: Standard on TCY-160IIYS
  • Milling (rotating-tool): Standard on both versions; rotary tool speed: 6000 min-1
  • Chuck size: TCY-160IIYS = 6+6 inch; TCY-160IIY = 6 inch
  • Type of turret: 12-station drum turret, all-holder type
  • Max. turning diameter: Φ220 (Φ250 in brackets)
  • Max. turning length: L3: 291 [308] mm; L5: 491 [508] mm
  • Bar capacity (left spindle): Φ42 mm; bar capacity (right spindle where fitted): Φ42 mm
  • Left spindle speed: 4000 min-1 (optional 6000)
  • Right spindle speed (where fitted): 4000 min-1 (optional 6000)
  • Rapid traverse rates: X: 20 m/min; Z: 24 m/min; Y: 10 m/min
  • Spindle motors (15 min/continuous): Left spindle 7.5 / 5.5 kW; Right spindle (where fitted) 5.5 / 3.7 kW
  • Rotary tool motor (15 min/continuous): 3.7 / 2.2 / 1.5 kW
  • Machine height: 1700 mm
  • Required floor space: L3: 2400 × 1695 mm; L5: 2760 × 1795 mm (alternative dims for tailstock wear: L3: 2210 × 1695 mm; L5: 2860 × 1795 mm)
  • Machine weight: L3: 3500 kg; L5: 4100 kg
  • Legend: • = Standard, ◦ = Optional, － = None; BMT45 type noted where applicable
  • Optional items: TiwaP-1 software, loader specification, bar feeder specification, other peripheral equipment
