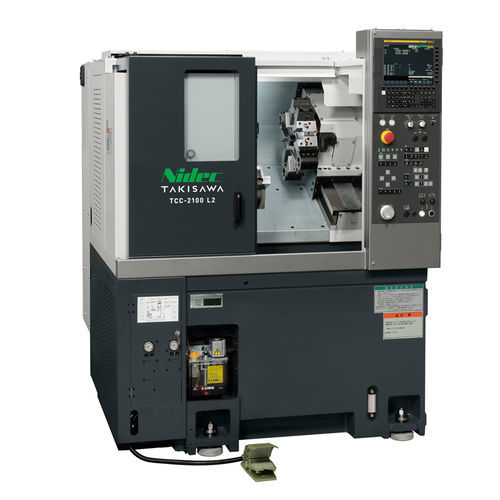

CNC lathe TCC-2100
horizontal12 tools8 tools

CNC lathe - TCC-2100 - TAKISAWA - horizontal / 12 tools / 8 tools
CNC lathe - TCC-2100 - TAKISAWA - horizontal / 12 tools / 8 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of tool stations
12 tools, 8 tools
Applications
for small parts production, for bar machining, for production
Performance
high-precision, high-speed
Other characteristics
compact
Options and accessories
with gantry loader
Diameter

320 mm, 350 mm
(12.6 in, 13.78 in)

Spindle speed

2,500 rpm, 3,200 rpm, 4,100 rpm, 5,000 rpm, 6,000 rpm
(15,707.963 rad.min-1, 20,106.193 rad.min-1, 25,761.06 rad.min-1, 31,415.927 rad.min-1, 37,699.112 rad.min-1)

Maximum part length

189 mm, 191 mm, 289 mm, 291 mm
(7 in, 8 in, 11 in, 11 in)

Bar capacity

42 mm, 51 mm
(2 in, 2 in)

Rapids on X

24 m/min

Rapids on Z

30 m/min

Nominal power

7.5 kW, 11 kW
(10.2 hp, 15 hp)

Overall lenght

1,320 mm, 1,420 mm
(52 in, 56 in)

Overall width

1,495 mm, 1,525 mm
(59 in, 60 in)

Weight

2,400 kg, 2,530 kg
(5,291 lb, 5,578 lb)

Description

Overview

The TCC-2100 is a compact CNC lathe designed for both chuck work and center work. It delivers high speed and high accuracy with a small footprint and is available in L2 and L3 layouts with an 8-inch chuck. An automated gantry-loader option (TCC-2100G) is available for compact automation systems.

Key features
  • Increased rapid traverse rate compared to previous models to reduce machining time.
  • Tank-bed structure with a large-capacity coolant tank.
  • Improved machining accuracy through minimized thermal distortion.
  • All slideways use highly rigid rectangular slides.
  • Direct-mount turrets available in 8-station and 12-station versions capable of heavy-duty cutting.
  • Hydraulic tailstock available as an option.


Machine size and automation variants
  • TCC-2100 L2 — Machine width: 1320 mm; Floor space: 1.93 m2.
  • TCC-2100 L3 — Machine width: 1420 mm; Floor space: 2.12 m2.
  • TCC-2100G (gantry loader automation) L2 — Machine width: 2113.6 mm; Floor space: 4.59 m2.
  • TCC-2100G (gantry loader automation) L3 — Machine width: 2213.6 mm; Floor space: 4.90 m2.


Machine main specifications (selected)
  • Model variants: TCC-2100L2, TCC-2100L3.
  • Chuck size: 8 inch.
  • Turret: Direct-mount 8-station and 12-station options.
  • Max turning diameter: Φ350 / Φ320 mm (varies with turret/configuration).
  • Max turning length: TCC-2100L2 — 189 / 191 mm; TCC-2100L3 — 289 / 291 mm (depends on configuration).
  • Bar capacity: Φ51 [Φ42] (depends on chuck/cylinder type).
  • Spindle speed (min⁻¹): 3200 (options: 2500, 4100; optional: 5000, 6000).
  • Rapid traverse rate: X 24 m/min; Z 30 m/min.
  • Spindle motor (kW): 11 / 7.5 (15 min / continuous specification).
  • Machine height: 1700 mm.
  • Required floor space (mm): TCC-2100L2 — 1320 × 1495; TCC-2100L3 — 1420 × 1525.
  • Machine weight: TCC-2100L2 — 2400 kg; TCC-2100L3 — 2530 kg.


Notes
  • Higher spindle-speed options (5000, 6000 min⁻¹) are available; maximum turning diameter may differ for these options.
  • Bar capacity depends on the type of chuck and cylinder used.
