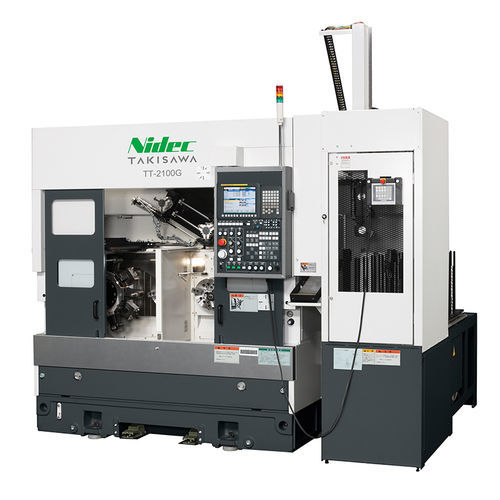

CNC lathe TT-2100G

horizontal2-axisflatbed

Overview

The TT-2100G is a parallel twin-spindle CNC lathe with a high-speed gantry loader as standard, designed for high-accuracy, mass-production machining primarily for the automotive sector. Its low-center-height structure and low gravity center provide stable cutting, fast loader transfer and high productivity in a compact footprint.

Key features

• Dedicated button and simplified measurement management for easy process control.
• Tank bed (box-type) structure to minimize thermal displacement over long production runs.
• Wide rectangular slideways on X/Z axes to ensure long-term stable high-accuracy machining.
• High-accuracy spindle specifications available for both 6" and 8" chuck configurations, paired with FANUC high-performance spindle motors.
• Standard 10-station turret (T10); optional 12-station turret (T12) for additional indexing and a 10-station milling turret (T10M) for milling operations.
• ENERGY SAVING SYSTEM to reduce power consumption and oil–water separator to extend coolant life.
• Operator-friendly software to reduce non-cutting time such as setup and changeover.

Machine configurations & operation

• Turning-only model: TT-2100G (available in 6+6 or 8+8 chuck configurations).
• Turning & milling model: TT-2100CMG (rotary-tool-equipped variant for combined turn/mill operations).
• Gantry loader is standard; loader specification is selectable to match production requirements.
• Transfer/turnover unit provided as standard to allow simultaneous front and back machining; operation side is selectable with indicator lamps to limit control to the chosen side.

Loader / Feeder overview

• Gantry loader supports small-diameter, short-length parts as standard; optional sets available for larger diameters and weights.
• Workpiece feeder supports palletized loading and stacking; number of pallets and loading capacity depend on the selected feeder configuration.

Technical specifications

• Model (commercial name): TT-2100G
• Brand: Takisawa Machine Tool Co., Ltd.
• Chuck size (available): 6" + 6" or 8" + 8"
• Type of turret (TT-2100G): 10-station turret (all-holder type) standard; 12-station turret (all-holder type) optional
• Max. turning diameter: Φ240 mm
• Max. turning length: 135.5 mm (6+6); 94 mm (8+8)
• Spindle speed: 4500 min⁻¹ [option 6000] (6+6); 3200 min⁻¹ [option 4500] (8+8)
• Rapid traverse rate: X: 24 m/min / Z: 24 m/min
• Spindle motor (15 min / cont.): 7.5 / 5.5 kW [option 11 / 7.5] (6+6); 11 / 7.5 kW (8+8)
• Machine height: 2700 mm
• Required floor space: 2825 × 2615 mm
• Machine weight: 5200 kg (TT-2100G turning); 5400 kg (TT-2100CMG turning & milling)
• TT-2100CMG additional (turning & milling): Rotary tool speed 2500 min⁻¹; rotary tool motor (15 min / cont.) 5.5 / 3.7 kW
• Loader target workpiece (standard / option): Outside diameter Φ80 (standard) [option Φ160]; Length 80 mm; Weight 0.7 kg ×2 (standard) [option 3.0 kg ×2]
• Workpiece feeder specifications: Number of pallets 16; loading capacity per pallet 40 kg; stacking height 450 mm
