CNC lathe TS-4000
horizontal2-spindleA2-8

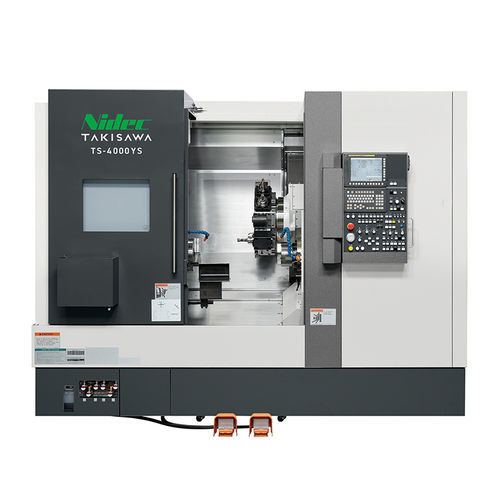

CNC lathe - TS-4000 - TAKISAWA - horizontal / 2-spindle / A2-8
CNC lathe - TS-4000 - TAKISAWA - horizontal / 2-spindle / A2-8
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of spindles
2-spindle
Spindle mount
A2-8
Number of tool stations
12 tools, 10 tools, 15 tools, 20 tools
Diameter

292 mm, 315 mm, 370 mm
(11.5 in, 12.4 in, 14.57 in)

Spindle speed

6,000 rpm
(37,699.112 rad.min-1)

Maximum part length

735 mm, 750 mm
(29 in, 30 in)

Bar capacity

82 mm
(3 in)

Rapids on X

30 m/min

Rapids on Z

30 m/min

Nominal power

7.5 kW, 11 kW, 15 kW, 22 kW
(10.2 hp, 15 hp, 20.4 hp, 29.9 hp)

Overall lenght

3,000 mm
(118 in)

Overall width

2,070 mm, 2,140 mm
(81 in, 84 in)

Overall height

2,300 mm
(91 in)

Weight

6,000 kg, 6,200 kg
(13,228 lb, 13,669 lb)

Description

Overview

Overview
  • TAKISAWA TS-4000 is a process-integration combined machining CNC lathe engineered for variable-kind, small- to mid-lot production. The TS-4000YS variant features opposed twin spindles enabling front-and-rear machining in a single setup, while the TS-4000Y is configured for headstock/tailstock applications.


Key features
  • Opposed twin-spindle configuration (TS-4000YS) for combined front/rear machining in one setup.
  • Y-axis capability and rotary tooling allow versatile turning and milling operations in the same machine.
  • Flexible turret options (10/12/15/20-station all-holder types) to match tooling and process requirements.
  • Targeted for industries requiring varied small-lot production such as aerospace, medical and construction machinery.


Machine main specifications (variants and selectable turret options)
  • TS-4000YS (Standard)
    • Right spindle stock: Standard
    • Tailstock (NC servo type): None
    • Chuck size (inch): 10 + 6
    • Type of turret (selectable): 12-station turret (all-holder type) - standard; options: 10, 15, 20-station (all-holder type)
    • Max. turning diameter (mm): Φ370 / Φ315 / Φ292 (depending on configuration)
    • Max. turning length (mm): 750 / 735 / 750 (depending on configuration)
    • Bar capacity (mm): Φ82*
    • Left spindle speed (min⁻¹): 4200
    • Right spindle speed (min⁻¹): 6000
    • Rotary tool speed (min⁻¹): 6000
    • Rapid traverse rate (m/min): X: 30 / Z: 30 / Y: 10 / A: 30
    • Left spindle motor (30 min/continuous) (kW): 22 / 15
    • Right spindle motor (30 min/continuous) (kW): 11 / 7.5
    • Rotary tool motor (S3 25% / continuous) (kW): 7.5 / 3.7
    • Machine height (mm): 2300
    • Required floor space (mm): 3000 × 2140 (without oilpan and chip conveyor)
    • Machine weight (kg): 6200
  • TS-4000Y
    • Right spindle stock: None
    • Tailstock (NC servo type): Standard
    • Chuck size (inch): 10
    • Type of turret (selectable): 12-station turret (all-holder type) - standard; options: 10, 15, 20-station (all-holder type)
    • Max. turning diameter (mm): Φ370 / Φ315 / Φ292 (depending on configuration)
    • Max. turning length (mm): 750 / 735 / 750 (depending on configuration)
    • Bar capacity (mm): Φ82*
    • Left spindle speed (min⁻¹): 4200
    • Right spindle speed (min⁻¹): None
    • Rotary tool speed (min⁻¹): 6000
    • Rapid traverse rate (m/min): X: 30 / Z: 30 / Y: 10 / A: 13
    • Left spindle motor (30 min/continuous) (kW): 22 / 15
    • Right spindle motor (30 min/continuous): None
    • Rotary tool motor (S3 25% / continuous) (kW): 7.5 / 3.7
    • Machine height (mm): 2300
    • Required floor space (mm): 3000 × 2070 (without oilpan and chip conveyor)
    • Machine weight (kg): 6000


Notes
  • *1 Bar capacity depends on the types of chucks and cylinders.
  • *2 Required floor space excludes oilpan and chip conveyor.
