CNC lathe TK-2600
vertical8 toolsfor mass production

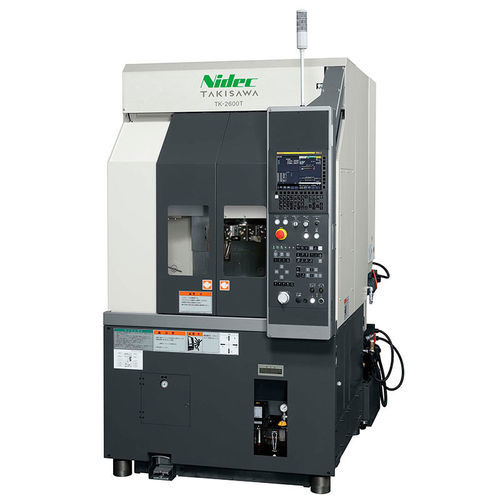

CNC lathe - TK-2600 - TAKISAWA - vertical / 8 tools / for mass production
CNC lathe - TK-2600 - TAKISAWA - vertical / 8 tools / for mass production
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
vertical
Number of tool stations
8 tools
Applications
for metal, for mass production, for production lines
Performance
high-precision, high-rigidity
Other characteristics
compact
Diameter

400 mm, 600 mm
(15.75 in, 23.62 in)

Spindle speed

2,000 rpm, 2,500 rpm
(12,566.371 rad.min-1, 15,707.963 rad.min-1)

Maximum part length

257 mm, 347 mm
(10 in, 14 in)

Maximum cutting diameter

355 mm
(14 in)

Maximum cutting length

Max.: 347 mm
(14 in)

Min.: 257 mm
(10 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

15 kW, 18.5 kW, 22 kW
(20.4 hp, 25.2 hp, 29.9 hp)

Overall lenght

1,220 mm, 1,600 mm
(48 in, 63 in)

Overall width

1,980 mm
(78 in)

Overall height

2,200 mm
(87 in)

Weight

3,650 kg, 3,750 kg
(8,047 lb, 8,267 lb)

Description

Fully redesigned version of a 30-year production model.

Overview
  • Compact vertical lathe TK-2600 engineered for modular configurations to match workpiece dimensions, tooling layout and automation plans.


Key features
  • Configurable swing: 400 mm standard or 600 mm (option).
  • Turret options: comb-type tool slide; 6-station direct-mount turret; 8-station direct-mount turret.
  • Rectangular slideways for high rigidity and high accuracy.
  • Flexible spindle and motor options to adapt cutting conditions and cycle times.
  • Compact footprint allowing integration in production cells or automated lines.


Specifications
  • Chuck size: 10 inch
  • Type of turret: Comb Type Tool Slide; 6-Station Turret (Direct-Mount Type); 8-Station Turret (Direct-Mount Type)
  • Max. swing: 400 mm (600 mm for 600 swing)
  • Max. turning diameter: Comb Type: - ; 6-Station Turret: φ355 ; 8-Station Turret: φ335
  • Max. turning length: Comb Type: 347 mm ; 6-/8-Station Turret: 257 mm
  • Spindle speed: 2000 min⁻¹ (option: 2500 min⁻¹)
  • Rapid traverse rate: X: 20 / Z: 20 m/min
  • Spindle motor (30 min / continuous): 22 / 18.5 kW (option: 18.5 / 15 kW)
  • Machine height: 2200 mm
  • Required floor space: 1220 × 1980 mm (1600 × 1980 mm for 600 swing)
  • Machine weight: 3650 kg; 3750 kg
  • Note: Values shown in brackets are for the 600 swing variant.


Applications
  • Turning of medium-sized components in machining shops and production lines.
  • Integration in automated cells for series production.
  • Suitable for a variety of materials and tooling layouts requiring compact, high-precision vertical turning.
