CNC lathe TS-2000

horizontal4-axis2-spindle

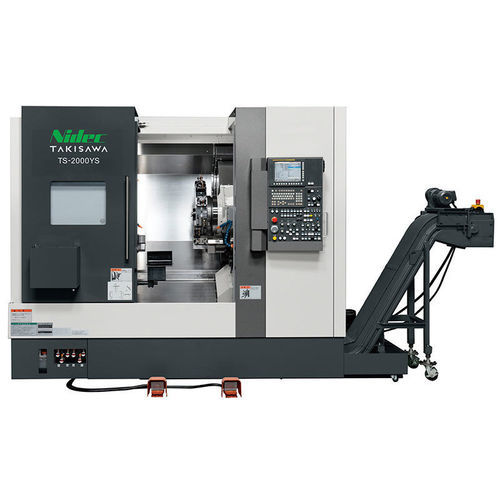

The TS-2000 is a Y-axis, opposed twin-spindle, single-turret turning center by Takisawa Machine Tool Co., Ltd. designed for integrated process machining. With both right and left spindles it can complete front and rear processes in a single setup and is intended for variable-kind, variable-lot workpieces in aerospace, medical and construction machinery markets.

Key features

• Y-axis, opposed twin-spindle configuration (TS-2000YS) and a single-tailstock variant (TS-2000Y).
• Support for rotary tooling to enable compound machining (turning + milling/drilling).
• Multiple turret configurations and tooling options to adapt to mixed production needs.
• Chuck options: 6+6 inch (YS) or 6 inch (Y); bar capacity φ51 mm (depends on chuck/cylinder type).
• High spindle and rotary-tool speeds: 6000 min-1 (left/right/rotary as applicable).

Variants & turret options

• TS-2000YS (Standard): opposed twin spindles (right and left) — Chuck size 6+6 inch; tailstock (NC servo type): none (optional); standard turret: 12-station all-holder type; other options: 10 / 15 / 20-station all-holder turrets.
• TS-2000Y: single-spindle variant — Chuck size 6 inch; tailstock (NC servo type): standard; standard turret: 12-station all-holder type; other options: 10 / 15 / 20-station all-holder turrets.

Machine main specifications (source tables)

• TS-2000YS (Standard):
  • Right spindle stock: standard (available)
  • Tailstock (NC Servo Type): none
  • Chuck size: 6+6 inch
  • Type of turret (options): 12-Station Turret (All-Holder Type) — Standard; 10-Station; 15-Station; 20-Station (All-Holder Type)
  • Max. turning diameter: up to φ370 mm (varies by turret)
  • Max. turning length: 565 mm
  • Bar capacity: φ51 mm (see note)
  • Left spindle speed: 6000 min-1
  • Right spindle speed: 6000 min-1
  • Rotary tool speed: 6000 min-1
  • Rapid traverse rate: X: 30 m/min / Z: 30 m/min / Y: 10 m/min / A: 30 m/min
  • Left spindle motor (30 min/continuous): 11 / 7.5 kW
  • Right spindle motor (30 min/continuous): 11 / 7.5 kW
  • Rotary tool motor (S3 25%/continuous): 7.5 / 3.7 kW
  • Machine height: 2300 mm
  • Required floor space: 2800 × 2140 mm (without oilpan and chip conveyor)
  • Machine weight: 6200 kg
• TS-2000Y:
  • Right spindle stock: none
  • Tailstock (NC Servo Type): standard (available)
  • Chuck size: 6 inch
  • Type of turret (options): 12-Station Turret (All-Holder Type) — Standard; 10-Station; 15-Station; 20-Station (All-Holder Type)
  • Max. turning diameter: up to φ370 mm (varies by turret)
  • Max. turning length: 565 mm (some turret options 550 mm)
  • Bar capacity: φ51 mm (see note)
  • Left spindle speed: 6000 min-1
  • Right spindle speed: not applicable
  • Rotary tool speed: 6000 min-1
  • Rapid traverse rate: X: 30 m/min / Z: 30 m/min / Y: 10 m/min / A: 13 m/min
  • Left spindle motor (30 min/continuous): 11 / 7.5 kW
  • Right spindle motor: not applicable
  • Rotary tool motor (S3 25%/continuous): 7.5 / 3.7 kW
  • Machine height: 2300 mm
  • Required floor space: 2800 × 2070 mm (without oilpan and chip conveyor)
  • Machine weight: 6000 kg

Characteristics / Technical specifications

• Product family / model name: TS-2000 (variants: TS-2000YS, TS-2000Y)
• Manufacturer / Brand: Takisawa Machine Tool Co., Ltd.
• Configuration: Y-axis, opposed twin-spindle (YS) / single-tailstock variant (Y), 1 turret
• Turret options: 12-, 10-, 15- and 20-station all-holder type turrets (12-station standard)
• Chuck sizes: 6+6 inch (YS) / 6 inch (Y)
• Max turning diameter: up to φ370 mm (depending on turret)
• Max turning length: typically 565 mm (some configurations 550 mm)
• Bar capacity: φ51 mm (depends on chuck/cylinder type)
• Spindle speeds: left 6000 min-1; right 6000 min-1 (YS only)
• Rotary tool speed: 6000 min-1
• Rapid traverse: X 30 / Z 30 / Y 10 / A 30 (YS) or A 13 (Y) — m/min
• Motors: left spindle 11 / 7.5 kW (30 min / continuous); right spindle 11 / 7.5 kW (YS); rotary tool 7.5 / 3.7 kW (S3 25% / continuous)
• Machine height: 2300 mm
• Required floor space: 2800 × 2140 mm (YS) / 2800 × 2070 mm (Y) — without oilpan and chip conveyor
• Machine weight: 6200 kg (YS) / 6000 kg (Y)
• Notes: *1 Bar capacity follows types of chucks and cylinders; *2 Floor space values are without oilpan and chip conveyor.
