CNC lathe TG-6000
slant bed12 tools10 tools

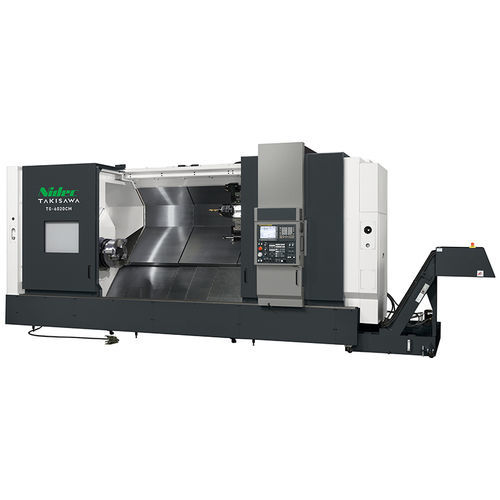

CNC lathe - TG-6000 - TAKISAWA - slant bed / 12 tools / 10 tools
CNC lathe - TG-6000 - TAKISAWA - slant bed / 12 tools / 10 tools
Add to favorites
Compare this product

Characteristics

Control type
CNC
Structure
slant bed
Number of tool stations
12 tools, 8 tools, 10 tools
Turret
four-turret
Applications
for large parts, for large workpieces, for large-bore parts, for long workpieces, for heavy turning
Performance
high-precision, high-performance, high-rigidity, high-productivity
Associated function
milling
Diameter

730 mm, 760 mm
(28.74 in, 29.92 in)

Spindle speed

500 rpm, 750 rpm, 1,000 rpm, 1,200 rpm, 2,000 rpm
(3,141.593 rad.min-1, 4,712.389 rad.min-1, 6,283.185 rad.min-1, 7,539.822 rad.min-1, 12,566.371 rad.min-1)

Maximum part length

1,031 mm, 2,031 mm, 4,031 mm
(41 in, 80 in, 159 in)

Maximum cutting diameter

Max.: 760 mm
(30 in)

Min.: 730 mm
(29 in)

Rapids on X

12 m/min

Rapids on Z

14 m/min, 16 m/min

Nominal power

30 kW, 37 kW, 45 kW
(40.8 hp, 50.3 hp, 61.2 hp)

Overall lenght

5,848 mm, 7,067 mm, 8,388 mm, 9,562 mm
(230 in, 278 in, 330 in, 376 in)

Overall width

2,360 mm, 2,465 mm, 2,496 mm, 2,526 mm, 2,601 mm, 2,624 mm
(93 in, 97 in, 98 in, 99 in, 102 in, 103 in)

Overall height

2,700 mm, 2,800 mm
(106 in, 110 in)

Weight

Max.: 21,800 kg
(48,061 lb)

Min.: 15,500 kg
(34,172 lb)

Description

Overview

Large-format lathe series TG-6000 for high-precision, high-production turning of large-diameter and long workpieces. Supports big-bore pipe end machining and chucks from 15" to 28". Available in turning and turning-&-milling (CM) variants with multiple spindle housing and turret configurations.

Key features

  • High cutting performance for productive machining
  • Capacity for large-diameter and long workpieces
  • Big-bore configuration for large-diameter pipe end machining
  • Compatible with 15"–28" chucks
  • Four spindle-housing types (A, B, C, D) to match application requirements
  • Wide-profile slides on all axes
  • Slant-bed structure for rigidity
  • 37/30 kW spindle motor (OP. 45/37)
  • Four high-rigidity turret options
  • Powerful tailstock


Main machine specifications (representative variants)

  • TG-6010
    • Max turning diameter: Φ760 / Φ730
    • Max turning length: 1031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Feed rate: X: 12 / Z: 16 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2700 mm
    • Required floor area: 5848 × 2360 (A, B), 5848 × 2465 (C, D) mm
    • Machine mass: 15500 kg
  • TG-6020
    • Max turning diameter: Φ760 / Φ730
    • Max turning length: 2031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Feed rate: X: 12 / Z: 16 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2700 mm
    • Required floor area: 7067 × 2496 (A, B), 7067 × 2601 (C, D) mm
    • Machine mass: 18000 kg
  • TG-6030
    • Max turning diameter: Φ760 / Φ730
    • Max turning length: 4031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Feed rate: X: 12 / Z: 14 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2700 mm
    • Required floor area: 8388 × 2526 (A, B), 8388 × 2601 (C, D) mm
    • Machine mass: 20500 kg
  • TG-6010CM (turning & milling)
    • Max turning diameter: Φ750
    • Max turning length: 1031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Rotary tool speed: 3000 min^-1
    • Rotary tool motor (S3 25% / cont): 11/5.5 kW
    • Feed rate: X: 12 / Z: 16 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2700 mm
    • Required floor area: 5848 × 2360 (A, B), 5848 × 2465 (C, D) mm
    • Machine mass: 15800 kg
  • TG-6020CM (turning & milling)
    • Max turning diameter: Φ750
    • Max turning length: 2031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Rotary tool speed: 3000 min^-1
    • Rotary tool motor (S3 25% / cont): 11/5.5 kW
    • Feed rate: X: 12 / Z: 16 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2700 mm
    • Required floor area: 7067 × 2496 (A, B), 7067 × 2601 (C, D) mm
    • Machine mass: 18300 kg
  • TG-6030CM (turning & milling)
    • Max turning diameter: Φ750
    • Max turning length: 3031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Rotary tool speed: 3000 min^-1
    • Rotary tool motor (S3 25% / cont): 11/5.5 kW
    • Feed rate: X: 12 / Z: 14 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2700 mm
    • Required floor area: 8388 × 2526 (A, B), 8388 × 2601 (C, D) mm
    • Machine mass: 20800 kg
  • TG-6040CM (turning & milling)
    • Max turning diameter: Φ750
    • Max turning length: 4031 mm
    • Spindle speed: 1200 [OP. 2000](A), 1000(B), 750(C), 500(D) min^-1
    • Spindle bore: 131(A), 185(B), 275(C), 375(D) mm
    • Rotary tool speed: 3000 min^-1
    • Rotary tool motor (S3 25% / cont): 11/5.5 kW
    • Feed rate: X: 12 / Z: 14 m/min
    • Spindle motor (30 min / cont): 37/30 [OP. 45/37] kW
    • Machine height: 2800 mm
    • Required floor area: 9562 × 2624 mm
    • Machine mass: 21800 kg


Notes

  • A, B, C, D indicate spindle housing types.
  • Displayed dimensions include chuck conveyor where noted.
