Regulated DC/DC converter DCM®

isolatedindustrialwide input range

Product family
DCM® DC-DC Converter Module

Overview
High-density isolated, regulated DC-DC converter in a 2322 ChiP through-hole package. Designed for Safety Extra Low Voltage (SELV) applications, featuring ZVS high-frequency (MHz) switching, wide input range and optimized for array operation (up to 8 units) to scale power for industrial systems.

Key product features

• Isolated, regulated DC-DC converter
• Safety Extra Low Voltage (SELV)
• ZVS high-frequency (MHz) switching topology
• Wide input voltage range
• Optimized for parallel/array operation (up to 8 units)

Package and mechanical

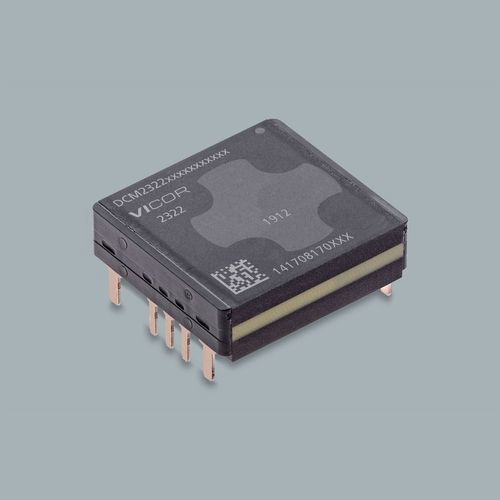

2322 ChiP package with through-hole (through-hole mounting). Package dimensions: 0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm.

Ordering & availability
Part number: DCM2322T50T1360T60
Lead time (example): 40 weeks
Minimum order quantity: 25 units

Pricing (MSRP)
Quantity — Price (USD)
25+ — $118.19
100+ — $110.85

Reference materials (available)

• Data sheet
• Evaluation board user guide
• Application notes (single-unit and parallel/array operation, soldering guidelines, regulation and thermal management)
• DCM design guide
• Mechanical drawings and 3D models (IGS, STP) for 2322 ChiP through-hole package
• Safety approvals and flammability review

Safety & approvals
Multiple safety approvals and certifications available for the DCM2322 family (CSA/EN/UL/TÜV/CE/UKCA/CB listings and flammability assessment).

Applications

• Isolated regulated power for computing, communications and industrial equipment
• Automotive and aerospace subsystems requiring isolated low-voltage power
• Arrayed configurations for higher-power systems (up to 8 units)

Technical specifications

• Part number: DCM2322T50T1360T60
• Series: DCM
• Example input voltage: 30 V
• Example output voltage: 12 V
• Output power: 60 W
• Package: 2322 ChiP through-hole
• Package dimensions: 0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm
• Mounting: Through Hole
• Product temperature grades: T = -40°C to 125°C; M = -55°C to 125°C
• Minimum order quantity: 25
• Typical lead time: 40 weeks
• Evaluation board: DCM2322E50T1360T60
• Optimized for parallel/array operation up to 8 units
• Available documentation: data sheet, application notes, user guides, design guide, safety approvals, mechanical drawings and 3D models
