Regulated DC/DC converter ZVS

non-isolatedSIPindustrial

Product overview

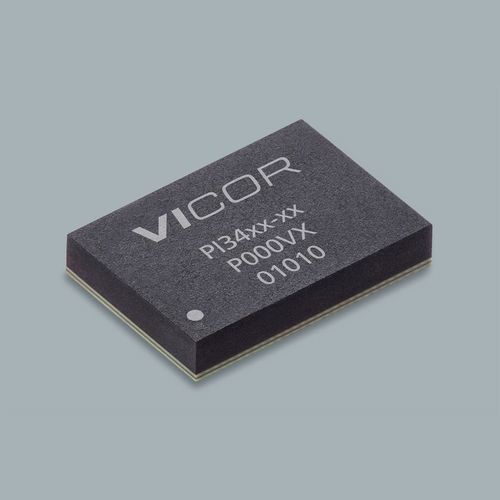

PI3423-00-LGIZ is a non‑isolated ZVS (Zero-Voltage Switching) buck DC-DC regulator from the PI34xx family. Optimized for 12 Vin operation, it targets high-efficiency, high-density power designs and rapid evaluation/development. The device is supplied in a compact 10 x 14 LGA-SIP package (14.0 x 10.0 x 2.56 mm).

Key parameters (page summary)

• Product family: ZVS Buck Regulator (PI34xx)
• Input voltage (optimized example): 12 Vin (family supports 8–18 V and wider ranges 8–36 V)
• Output voltage (example): 3.3 V
• Maximum output current (Iout Max): 15 A
• Package / mounting: 10x14 LGA-SIP
• Dimensions: 14.0 x 10.0 x 2.56 mm
• Operating temperature (grade): LGIZ −40°C; LGMZ −55°C (model dependent)

Product features

• Wide operating range
• 12 Vin optimized (8–18 V) and Wide Vin options (8–36 V)
• Wide Vout support (1–16 V)
• Temperature grades: −40°C (LGIZ) and −55°C (LGMZ)
• Simple to use — fast development
• Internal compensation minimizes external components and design time
• No additional controller configuration required for typical applications
• High efficiency
• >96% peak (24 Vin → 12 Vout); >95% peak (12 Vin → 5 Vout)
• High efficiency across light and full load conditions
• Flexible feature set
• Frequency synchronization, adjustable soft-start & tracking
• Paralleling with single-wire current sharing and two-phase interleaving
• Constant-voltage and constant-current operation with dedicated error amplifier
• Protection features: OVLO/UVLO, OVP, OTP
• Very fast transient response

Packaging / Mechanical
10 x 14 LGA-SIP package, footprint 0.5512 x 0.3937 x 0.1001 in / 14.0 x 10.0 x 2.56 mm. Suitable for high-density board layouts and automated assembly.

Pricing (MSRP)
Quantity | MSRP (USD)
10+ | $11.58
25+ | $10.56
100+ | $9.91

Resources (available on product page)

• Data sheet (PI34xx family)
• White papers: ZVS applied to buck regulation; High-performance ZVS Buck Regulator
• Application note: AN:303 Assembly Guideline for 10 x 10 mm and 10 x 14 mm LGA/BGA packages
• Evaluation board user guide (PI33xx/PI34xx)
• Product outline / mechanical drawing (PDF)

Technical specifications

• Part number: PI3423-00-LGIZ
• Denomination: ZVS Buck Regulator
• Input voltage (typical/page summary): 12 V (optimized); family supports 8–18 V and wider ranges
• Output voltage (example): 3.3 V (family supports 1–16 V)
• Maximum output current: 15 A
• Package: 10 x 14 LGA-SIP
• Dimensions: 14.0 x 10.0 x 2.56 mm
• Temperature grade: LGIZ −40°C; LGMZ −55°C
• Efficiency examples: >96% peak (24 Vin→12 Vout); >95% peak (12 Vin→5 Vout)
• Protections/features: OVLO/UVLO, OVP, OTP, frequency sync, soft-start & tracking, paralleling/current sharing, two-phase interleaving, constant current capability
• Lead time (page): 28 weeks
• Minimum order quantity: 10
