Regulated DC/DC converter DCM®

isolatedindustrialwide input range

Product family

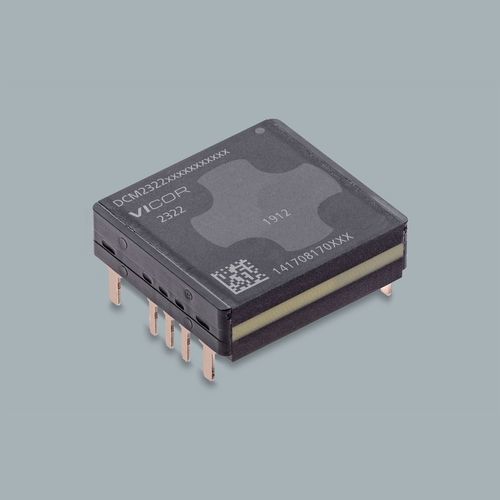

DCM® DC-DC Converter Module (2322 ChiP package).

Overview
Isolated, regulated DC-DC converter optimized for high-frequency ZVS switching (MHz). Safety extra low voltage (SELV). Wide input range. Optimized for array operation up to 8 units for higher power applications.

Key product information

• Part number: DCM2322T50T3160T60
• Input voltage (nominal): 30 V
• Output voltage (nominal): 28 V
• Output power: 60 W
• Package: 2322 ChiP Through-Hole (dimensions: 0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm)
• Mounting style: Through Hole
• Product grade options: T = -40°C to 125°C, M = -55°C to 125°C
• Lead time: 40 weeks
• Minimum order quantity: 25

Price steps (MSRP)

• 25+ : $116.49
• 100+ : $109.26

Reference materials and documentation available
Data Sheet, Application Notes (AN:029 Single DCM as an Isolated, Regulated DC-DC Converter; AN:030 Parallel DCMs; AN:031 Through-Hole ChiP Package Soldering Guidelines; AN:035 Achieving High-Accuracy Voltage (or Current) Regulation with the DCM™ Up to ±1% Regulation; AN:039 Thermal Management for VIA™ and ChiP™ Modules), User Guides (Evaluation Board Users Guide), DCM Design Guide, Safety approvals and compliance documents, Mechanical drawings, 3D models, and calculators/tools (Trim Calculator, Thermal Calculator).

Product features

• Isolated, regulated DC-DC converter
• Safety extra low voltage (SELV)
• ZVS high frequency (MHz) switching
• Wide input range
• Optimized for array operation up to 8 units for higher power applications

Associated hardware
Evaluation board available: DCM2322E50T3160T60 (evaluation board users guide available).

Technical specifications

• Part number: DCM2322T50T3160T60
• Input (typical / nominal): 30 V
• Output (nominal): 28 V
• Output power: 60 W
• Package: 2322 ChiP Through-Hole
• Package dimensions: 0.978 x 0.898 x 0.284 in (24.84 x 22.8 x 7.21 mm)
• Mounting: Through Hole
• Product grade: T = -40°C to 125°C (option), M = -55°C to 125°C (option)
• Lead time: 40 weeks
• Minimum order quantity: 25
• MSRP pricing steps: 25+ = $116.49 ; 100+ = $109.26
