Regulated DC/DC converter DCM®

non-isolatedSMDdata center

Product Overview

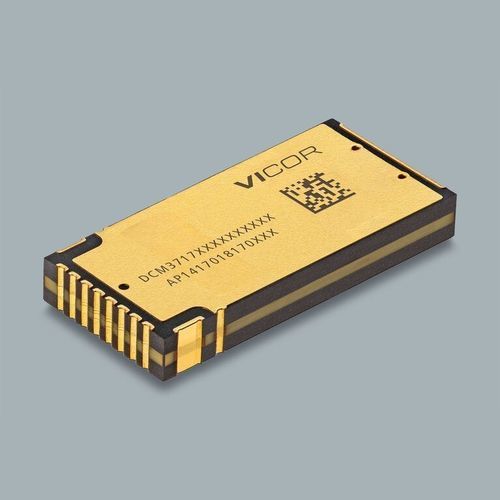

DCM3717S60D13K0TN1 is a DCM® DC-DC converter module in the 3717 SM‑ChiP surface-mount package. It provides up to 1000 W output power from a 40–60 VDC input range, supports parallel operation for higher power systems and offers PMBus® compatible telemetry.

Key Specifications Summary

• Input voltage (typical shown): 54 V
• Input range: 40 – 60 VDC
• Output voltage (nominal): 12.2 V
• Output power: 1000 W
• Maximum efficiency: up to 96.5%
• Package: 3717 SM‑ChiP surface-mount
• Package dimensions: 1.445 x 0.68 x 0.198 in / 36.71 x 17.27 x 5.03 mm
• Package height: 5.2 mm
• Parallel-capable: Yes
• Telemetry: PMBus® compatible

Commercial / Ordering Information

• Part number: DCM3717S60D13K0TN1
• Minimum order quantity: 25
• Lead time: 40 weeks
• Pricing (MSRP): 25+ units: $190.02; 100+ units: $178.23

Product features

• High power density up to 1000 W
• High efficiency up to 96.5%
• Parallel-capable for scaling power
• PMBus® compatible telemetry
• 40 – 60 VDC input range
• 3717 SM‑ChiP surface-mount package
• 5.2 mm package height for low-profile designs

Reference materials and resources (document names)

• Data Sheet (DCM3717 datasheet)
• AN:701 SM ChiP Soldering Recommendations
• UG:703 DCM3717 SM‑ChiP Evaluation Board Users Guide
• Safety approvals and certificates (UKCA, cTÜVus, CE DoC, CB Certificate, CSA Certificate)

Pricing table (excerpt)
Quantity
MSRP
25+
$190.02
100+
$178.23

Technical characteristics / specifications

• Product family: DCM® (Non‑Isolated DCM)
• Part number: DCM3717S60D13K0TN1
• Input voltage (displayed): 54 V; Input range: 40–60 VDC
• Nominal output voltage: 12.2 V
• Output power: 1000 W (single module)
• Maximum efficiency: up to 96.5%
• Parallel operation: supported
• Communications/telemetry: PMBus® compatible
• Package type: 3717 SM‑ChiP surface-mount
• Package dimensions: 36.71 x 17.27 x 5.03 mm (1.445 x 0.68 x 0.198 in)
• Package height (typical): 5.2 mm
• Minimum order quantity: 25
• Typical lead time shown: 40 weeks
